16
INSTALLATION

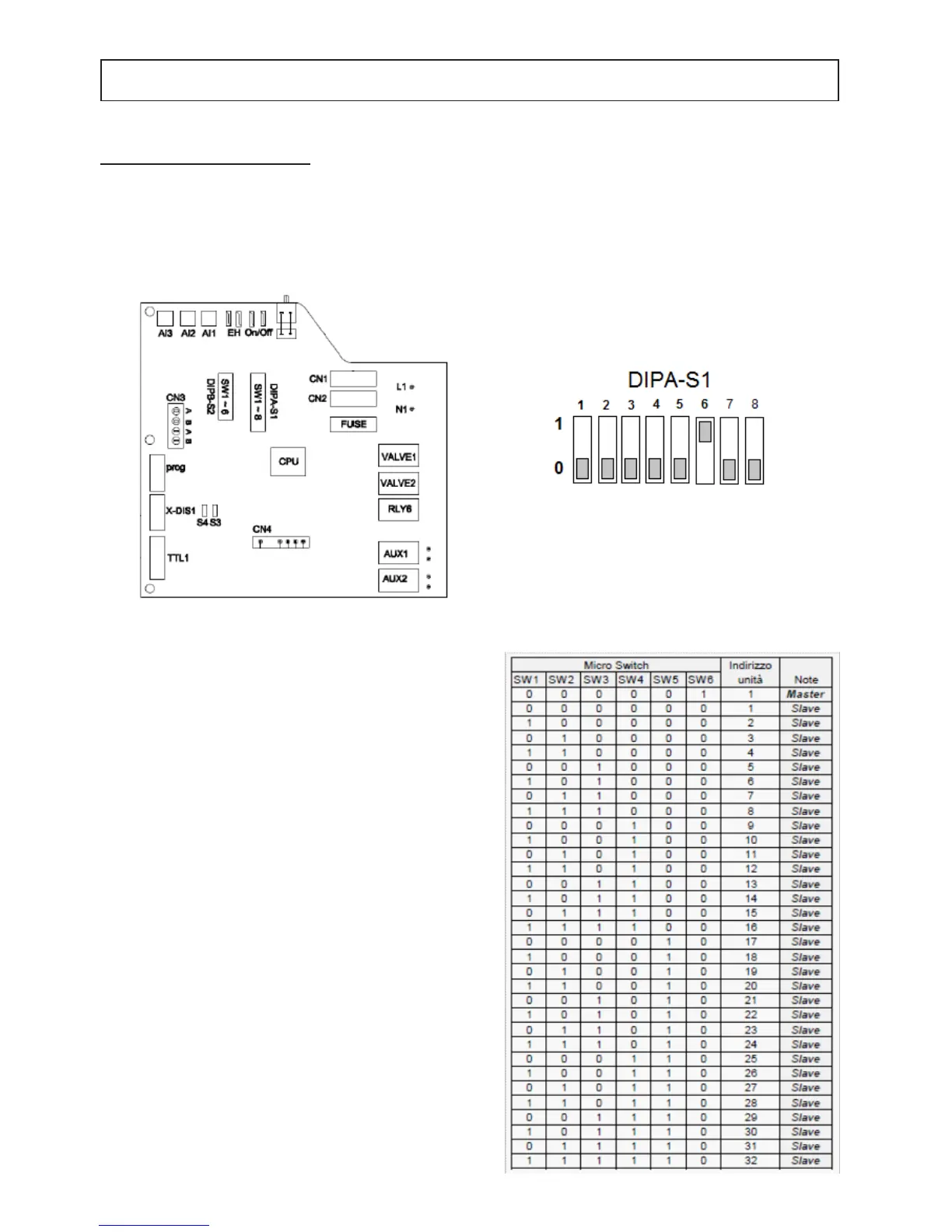

MASTER-SLAVE configuration
A setting must be made to the units to establish which one is to be assigned the MASTER function and which are the
SLAVES Do not assign two units belonging to the same group as the MASTER function
Configuration is done through the series of microswitches on the control board indicated by the message DIPA-S1
A different address can also be associated with each Slave
unit; this will allow a specific setting to be assigned for
each different unit possibly through the MASTER unit This
option is only possible with the use of the wall-mounted
control available as an accessory
For the settings to be made to the first six DIPA-S1 series
DIP switches, refer to the table opposite
Fig 7
