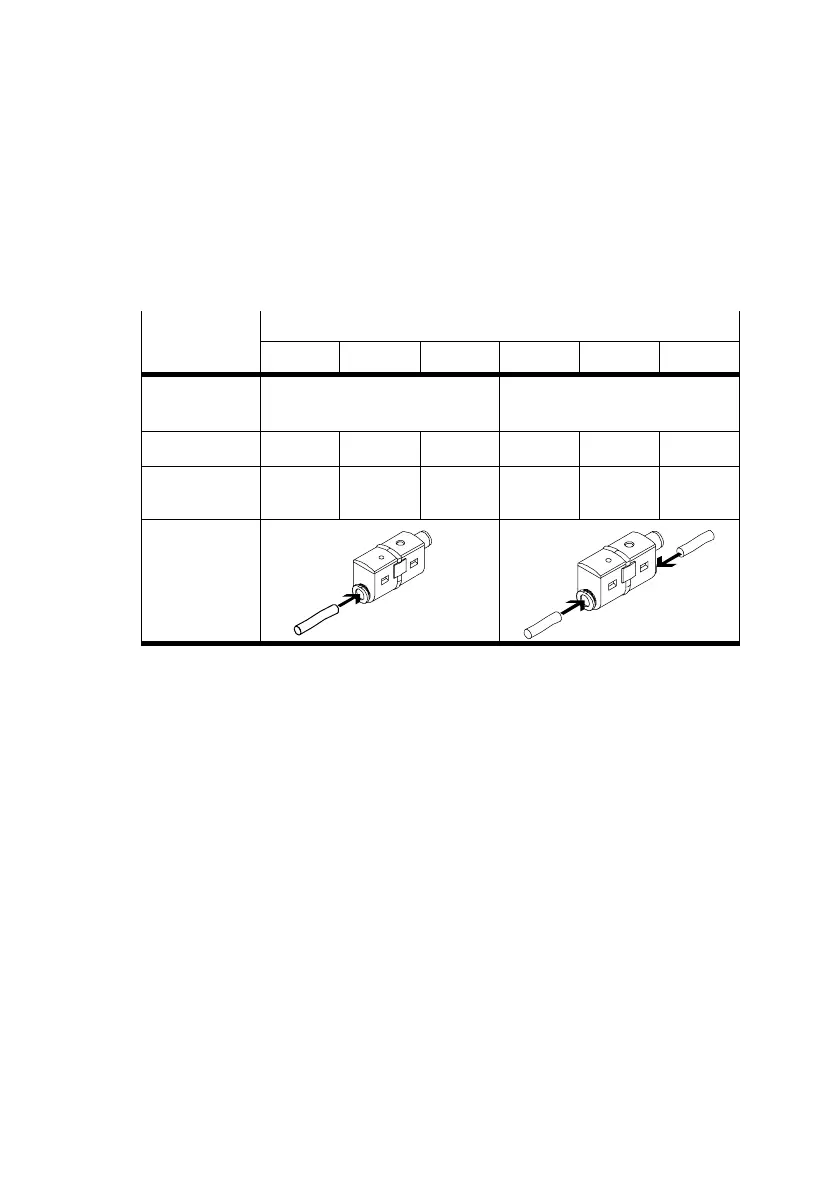

Fitting the pneumatic components
S Connect the pneumatic ports of the SDE5−... .
S Observe the following connection variants:
SDE5−
Q3E−... Q4E−... Q6E−... Q3−... Q4−... Q6−...
Pneumatic
connection
Screw connector
one side
Screw connector
both sides
Rated diameter 3 mm 4 mm 6 mm 3 mm 4 mm 6 mm
Recommended
type of tubing
PUN−3 PUN−4 PUN−6 PUN−3 PUN−4 PUN−6
Fitting
P
P
P
Fig.9
