8 Operation
Warning
Uncontrolled moving masses can cause injury to people or damage to objects in
the area of movement (squashed fingers, eye injuries).
S Make sure that nobody can place his/her hand in the positioning range of the
moveable mass (e.g. by means of a protective screen). It must not be
possible to touch the CLR-... until the mass has come to a complete stand.
S Make sure that the swivel frequencies in continuous operation do not exceed
the specified values (see chapter “Technical specifications”).
9 Care and maintenance
Cleaning:
S If necessary, clean the exterior of the CLR-... with a soft cloth.
The following cleaning agents are permitted:
– soap suds (max. +60 °C)
– petroleum ether
– any non-abrasive media.
10 Dismantling and repairs
For all dismantling and repair work:
S Exhaust the CLR-...
Removing the clamping finger

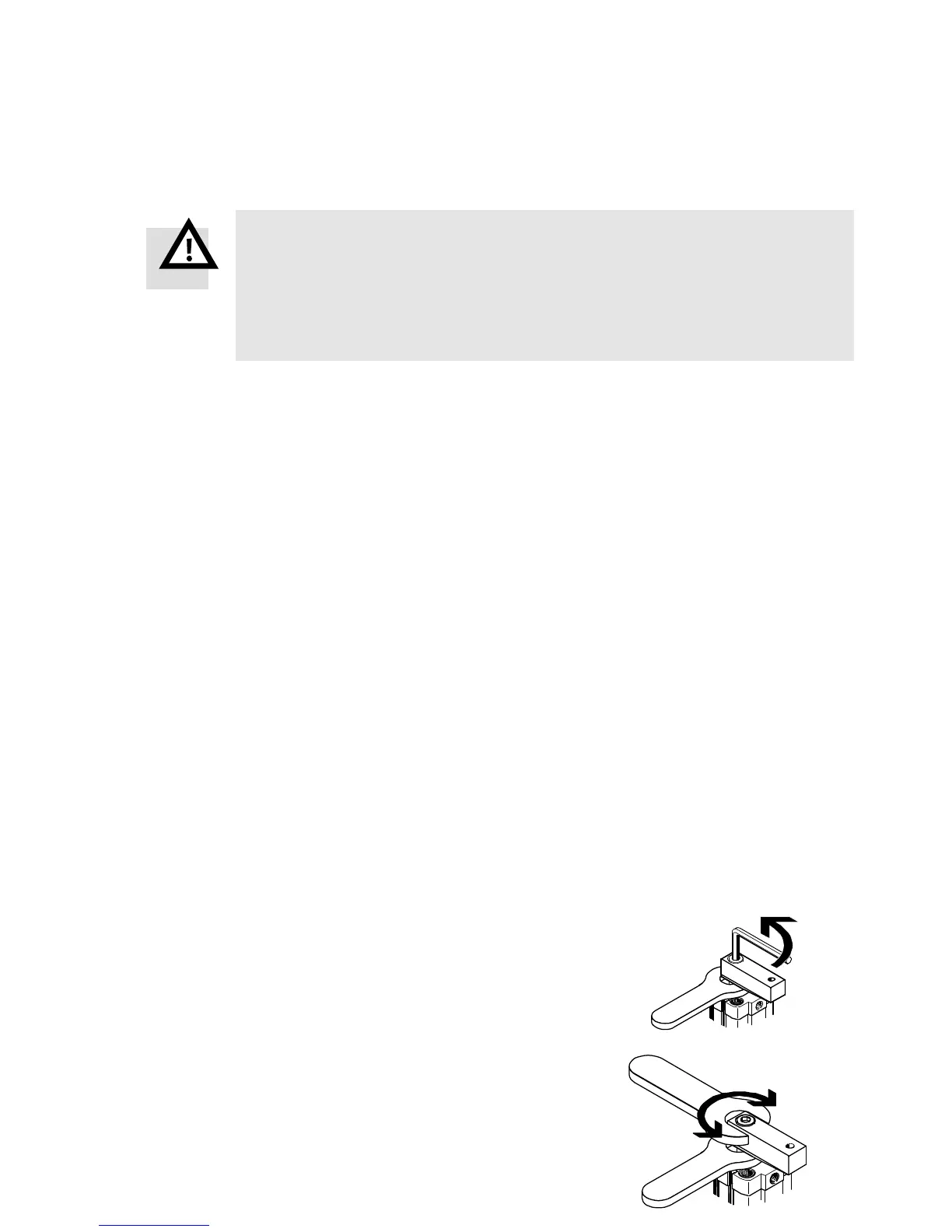

1. Fix the piston rod at spanner flat 6 with a
spanner wrench (note the maximum per
mitted torque on the guide sleeve, see
chapter “Mechanical installation”).
2. Unscrew the fastening screw one turn out
of the clamping finger.
3. Turn the clamping finger with a spanner
wrench. The clamping finger will then be
released from the piston rod.
Bild 21
Bild 22
