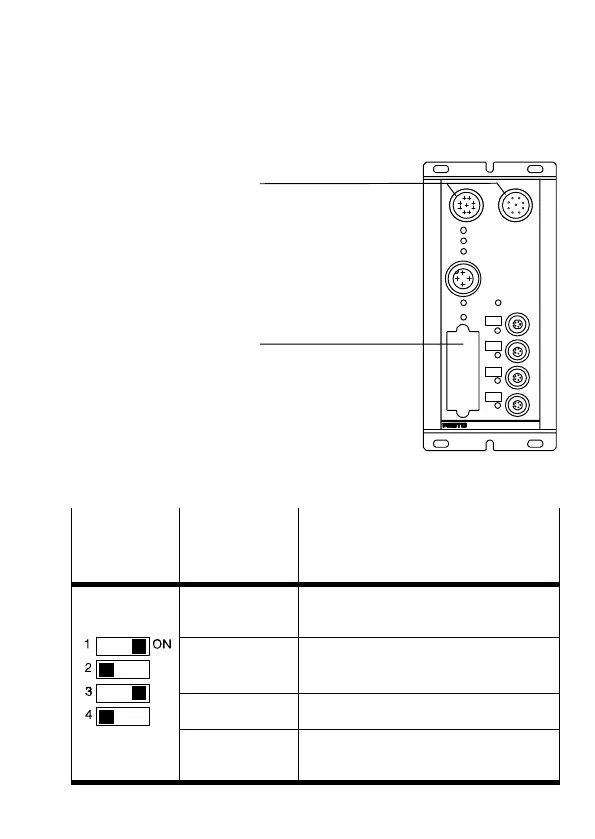

1 Interbus interface
2 Cover for DIL switch
(valve test; error
messages;
manufacturer−specific
addressing)
0
1
3
2
SAVE
POWER
24VDC
POWERV
ERRORV
RD
BA
RC
1
2
2.1 Setting of the DIL switch
DIL switch
(factory
setting)
Element Function
1
Valve test
ON: CP system start without v. test
OFF:CP system start with valve test
2
Err. messages
OFF:send all error messages
ON: send errors 3, 4, 5
3 ON: must be set at ON
4
Addressing
OFF:Siemens
ON: other controllers
