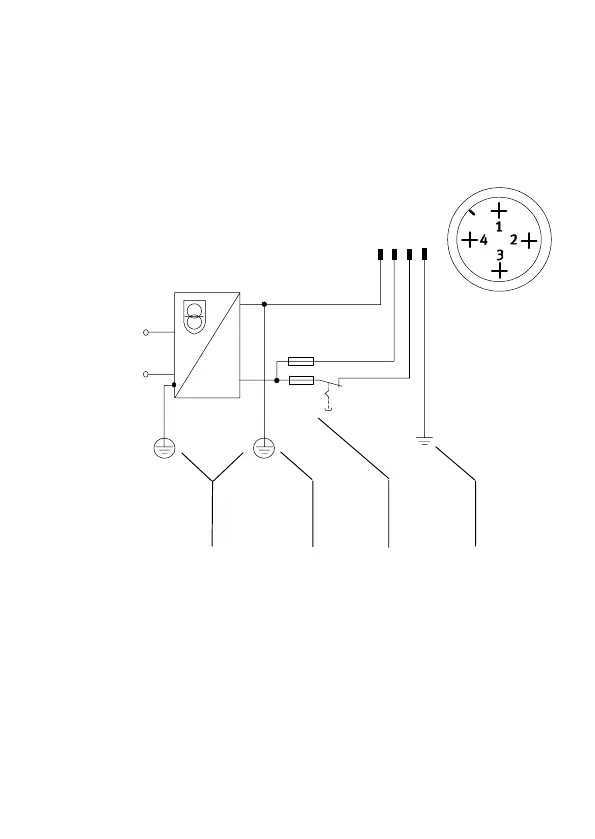

3.2 Example of connection power supply
3124
10 A
3,15 A
0 V
24 V
123 42
1 PE
2 Potential equalization
3 Load voltage can be switched off separately and external
fuses
4 Earth connection pin 4 (max. 12 A)
