Festo CP−FB6−E 0802f English20

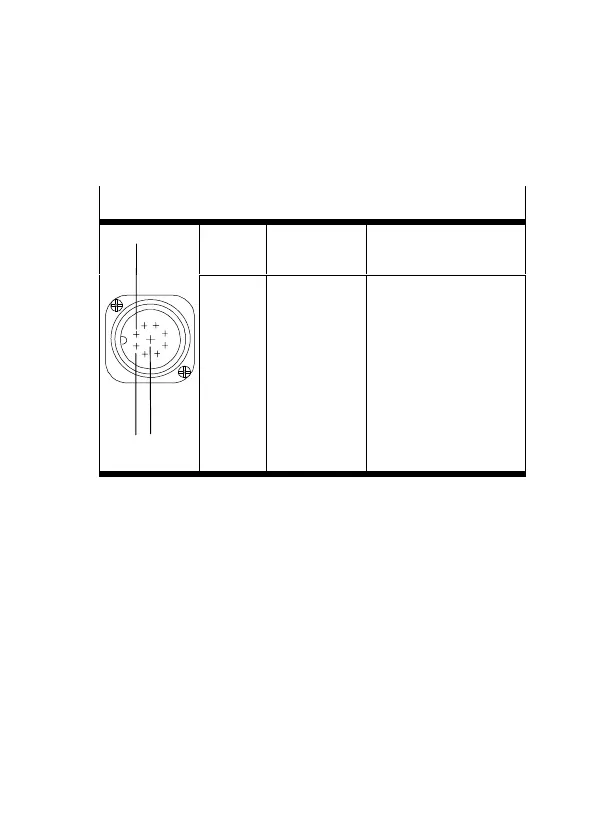

3.3 Pin assignmen t of the Interbus interface*)
IN
1
Pin no. Designa
tion
Meaning
8
9
1
2
3
4
5
6
7
8
Sleev e
DO
/DO
DI
/DI
Earth
PE
+ 24 V
+ 0 V
Screen
Data out
Data out inverse
Data in
Data in inverse
Reference conductor
Protective earth
for remote bus
Remote bus supply
Remote bus supply
Screening
*) Pins not listed must not be connected
