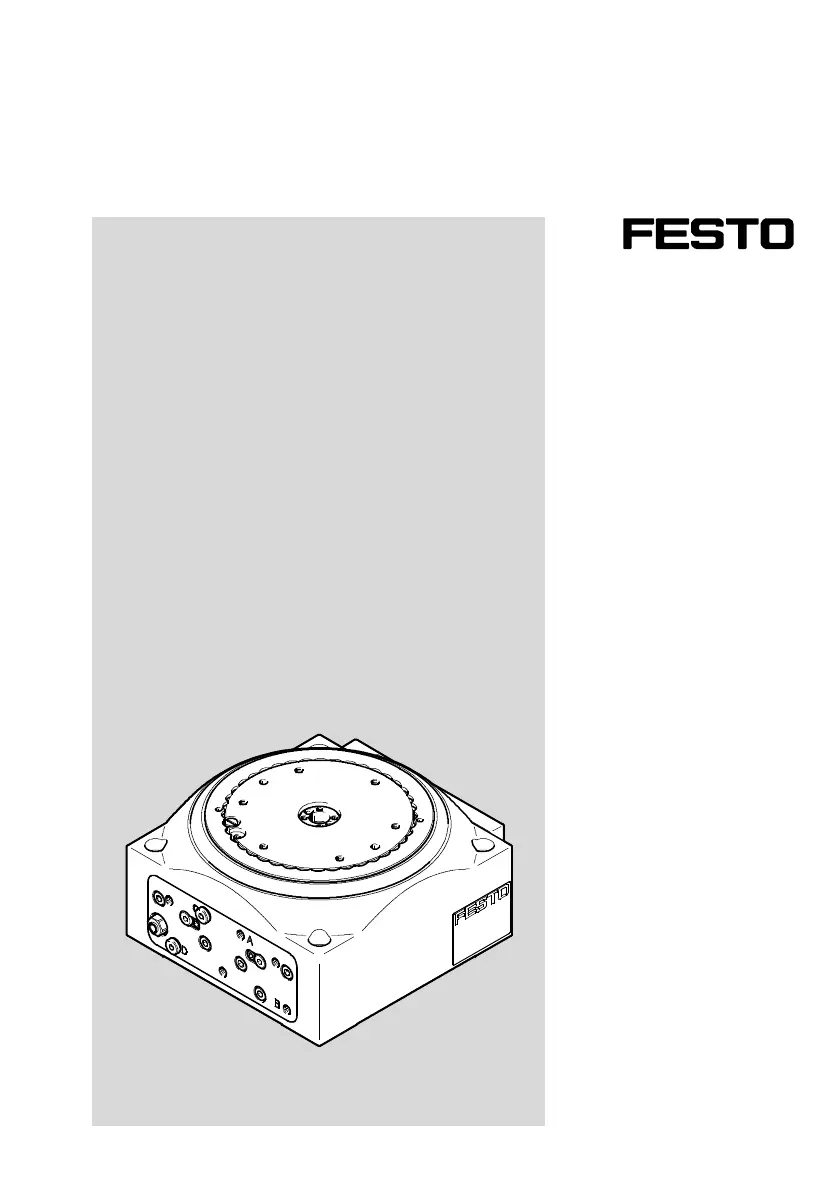

Festo DHTG-90-4-A - User Manual

Other manuals for Festo DHTG-90-4-A

Repair Instructions92 pages

Questions and Answers

A
Anna HoffmanJul 26, 2025
What to do if the Festo DHTG-90-4-A rotating plate does not move?
- J
  Jordan NixonJul 26, 2025
  If the rotating plate on your Festo Industrial Equipment doesn't move, it could be due to several reasons. First, check if the overload protection is active. You can resolve this by pressurizing connection (B) and turning the plate back against the direction of rotation as far as possible to engage the overload protection. Another cause may be that the flow-control screw is closed completely; if so, open the screw. If you hear an audible leakage, send the DHTG to Festo.
W
William StevensonAug 5, 2025
What to do if the Festo DHTG-90-4-A Industrial Equipment rotating plate does not engage?
- J
  Jose ConnerAug 5, 2025
  If the rotating plate on your Festo Industrial Equipment does not engage, it might be due to a few reasons. Check if the end position has been reached; if not, unscrew the adjusting screw for the shock absorber until the rotating plate engages. Also, verify if the overload protection is active. If the toothed disc and pinion stand tooth on tooth, please contact Festo’s Technical Hotline.
I
igrahamAug 14, 2025
Why is there a hard metal impact at the end position in my Festo DHTG-90-4-A?
- V
  Victor WilliamsAug 14, 2025
  A hard metal impact at the end position in your Festo Industrial Equipment may occur if the adjusting screw for the shock absorber is unscrewed too far. Try screwing in the adjusting screw. Alternatively, the shock absorber might be defective and need replacement.

Summary

Operating elements and connections

Function and application

Transport and storage

Requirements for product use

Installation

Mechanical assembly

Details on fastening the DHTG with screws and centring sleeves, including tightening torques.

Installing the pneumatic system

Instructions for connecting pneumatic ports for clockwise/anti-clockwise and reciprocating operations.

Electrical installation

Guidance on screwing proximity switches into specific threaded holes for position sensing.

Commissioning

Operation

Maintenance and care

Dismantling and repairs

Accessories

Troubleshooting

Technical data

Characteristic curves

Festo DHTG-90-4-A Specifications

General

Type	Rotary actuator
Size	90
Stroke	4 mm
Rotation angle	90°
Material	Aluminum
Mounting position	Any
Connection size	G1/4
Number of pistons	2
Operating pressure	2 to 8 bar
Ambient temperature	-10°C to +60°C
