For operation of the transfer line different work pieces and different posibilites of
transportation are realized.

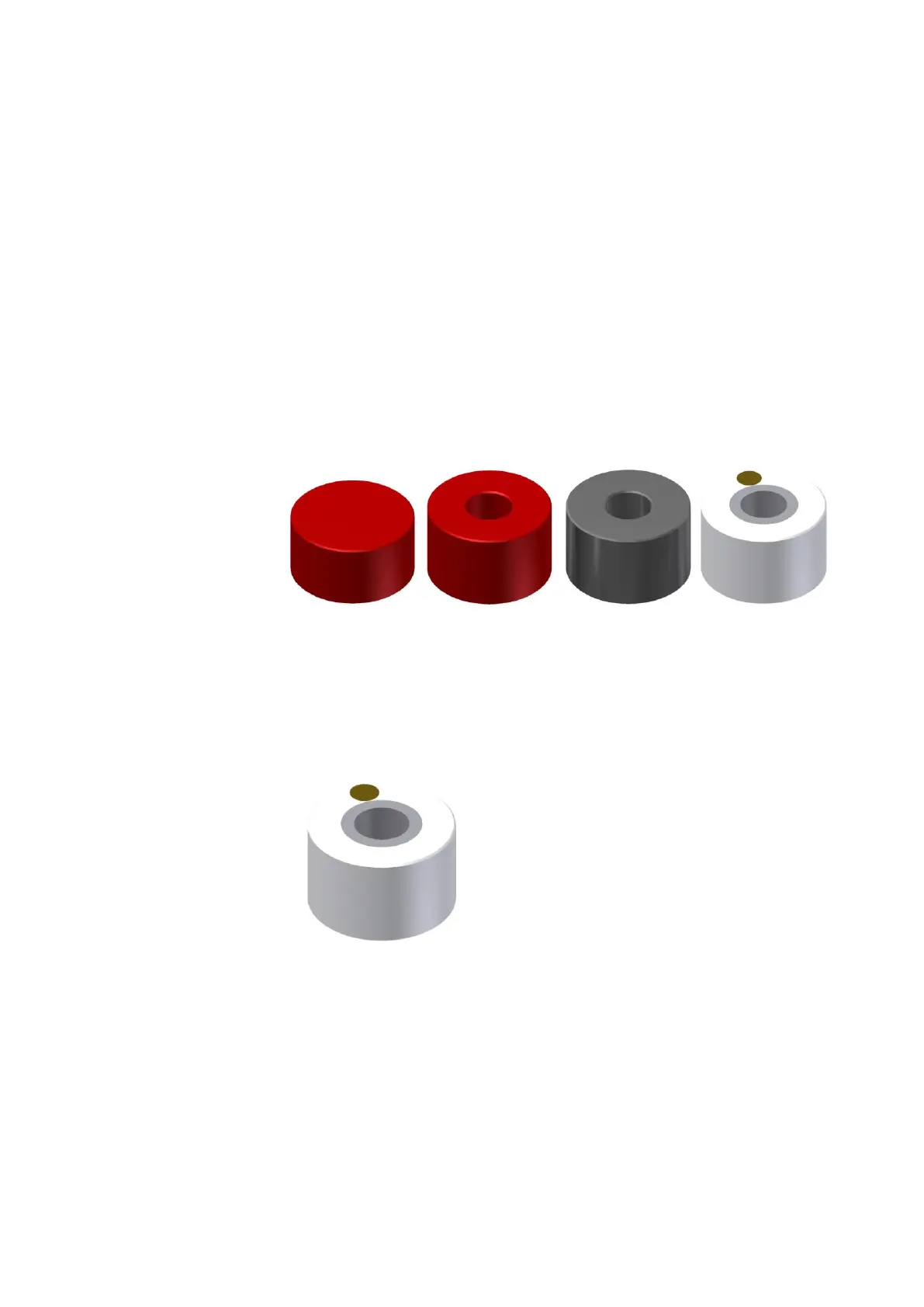

1.3.1 Workpiece variants
The workpiece Basic bodyis made from a cylindrical base body with 40mm ø and
25mm in height. The red workpiece without hole and with a height of 21mm is used
as bad part. A workpiece set consists of 4 cylinders each.
Work pieces
The workpiece consists of a cylindrical basic body with 40mm ø and 25mm
height. A workpiece set consist of 12 cylinders.
