Start up
44 -transfer system
3.2.3 Pneumatical connection of modules

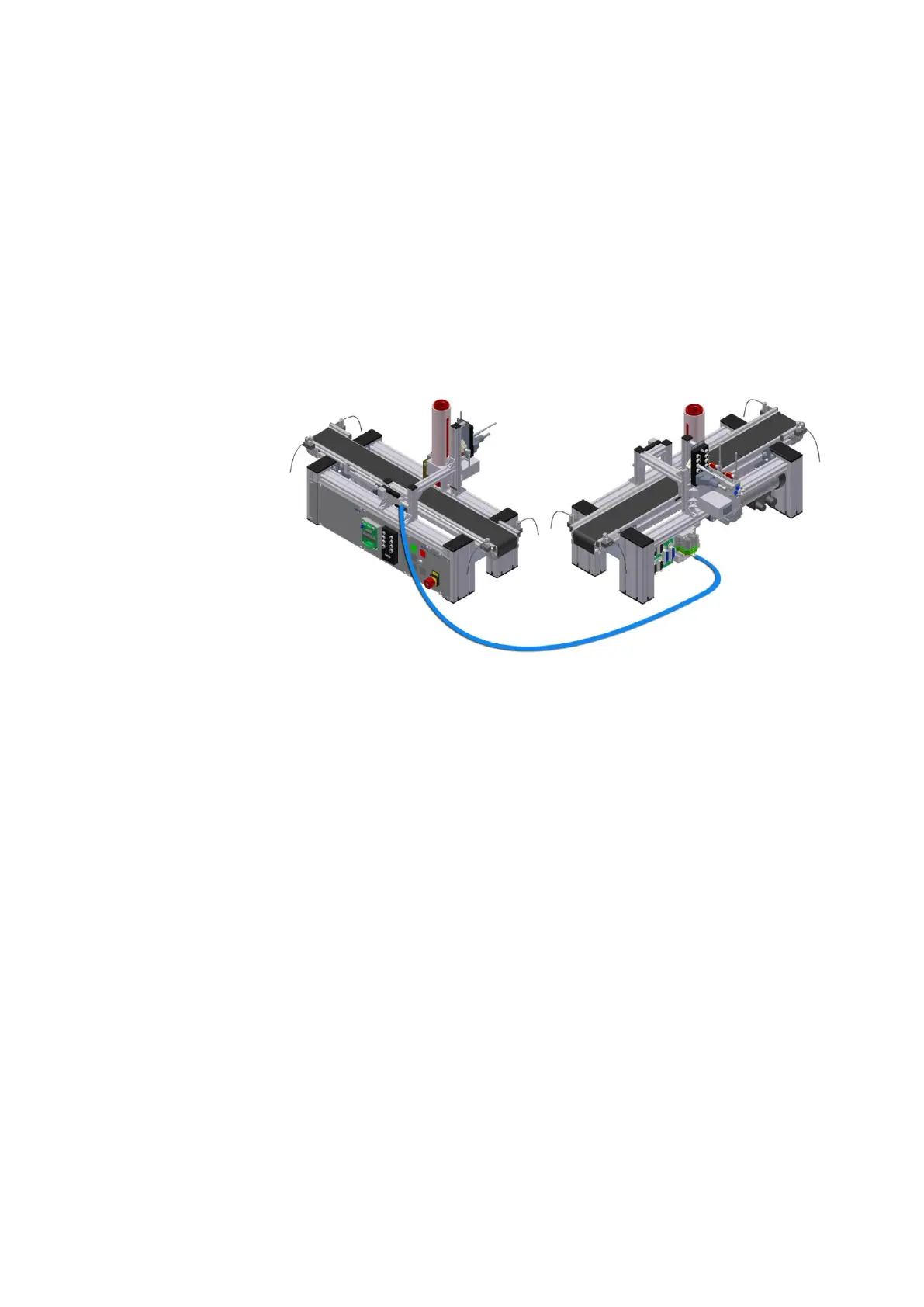

The pneumatical connection is done as shown in the following drawing. The module
is connected from the valve terminal to the distributor of the transfer line. The tube
(nominal size 4) is put in the QS-plug.
Install module pneumatically
If there are more modules to install, connect each module with the pneumatic
distributor on the transfer line.
