Festo MPS transfersystem - Mini Terminal

Start up
© Festo Didactic GmbH & -transfer system 79

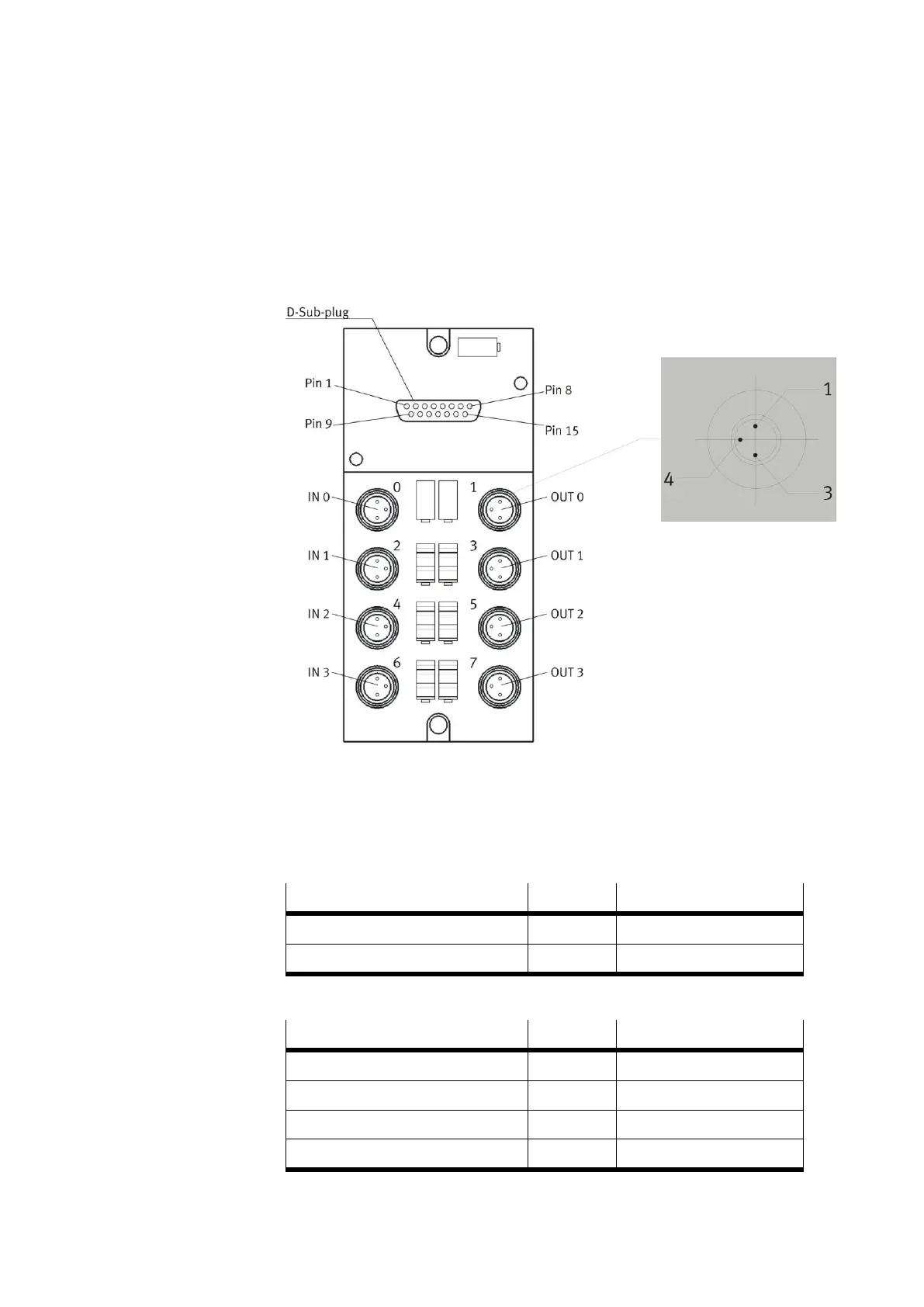

3.3.9 Mini terminal
Signal assignment
Designation
CSM
Mini terminal 1
Workpiece run in
1B1
IN0 / XS0
Workpiece run out
1B2
IN2 / XS4
Designation
CSM
Mini terminal 1
motor clockwise rotation
FRBR
OUT0 / XS1
motor anti clockwise rotation
FRBL
OUT1 / XS3
Motor slow
LAL
OUT2 / XS5
Motor stop
STP
OUT3 / XS7
Input
Output
