Start up
82 -transfer system

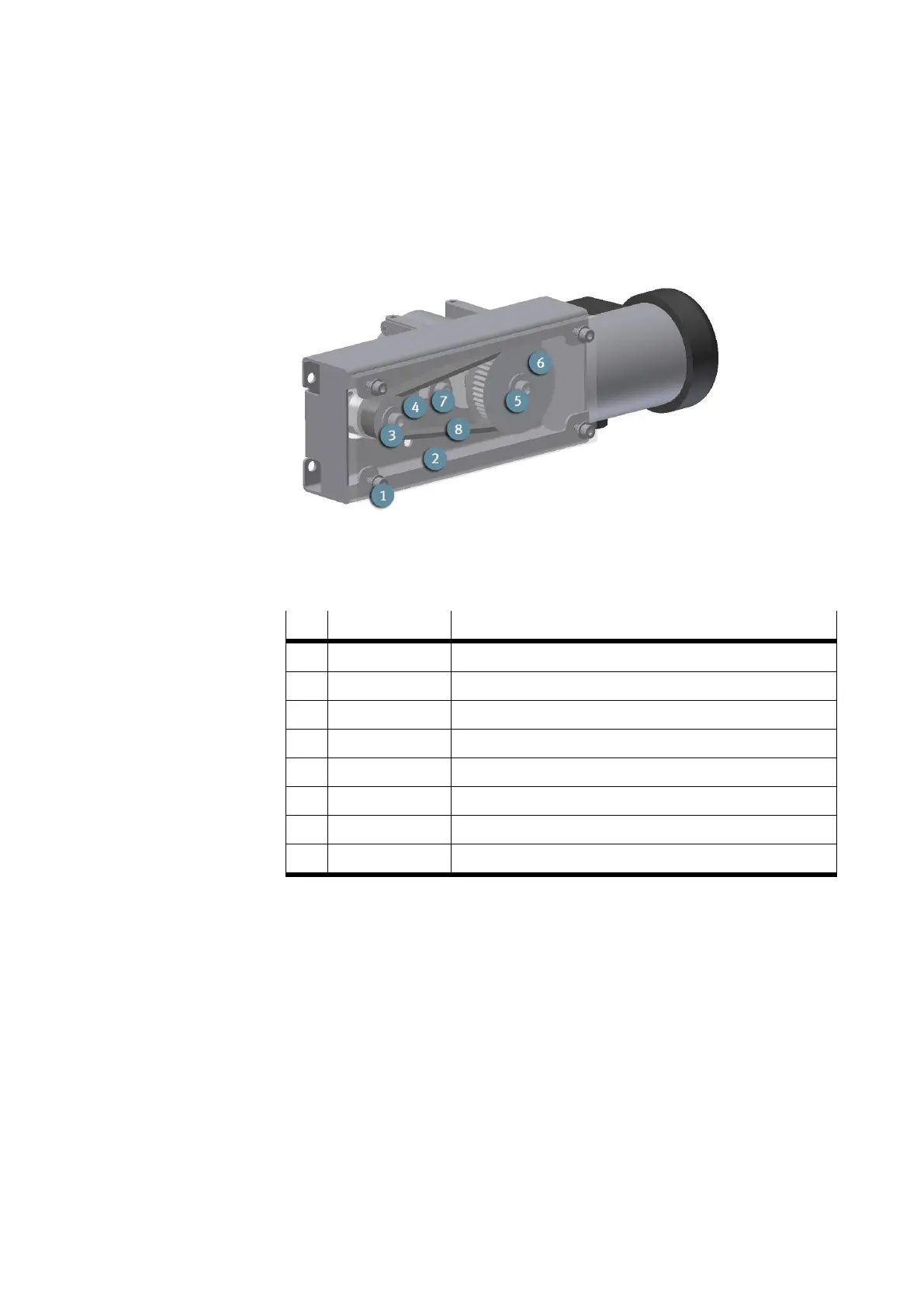

AC-motor with gear box
Screw 4 pieces. with shim for cover of gear box
Plexiglas cover covering the gear box
Screw 1x with shim for gear wheel drive side
Gear wheel with 22 teeths
Screw 1x with shim for gear wheel motor side
Gear wheel with 44 teeths
Screw 3 pieces with shim to assemble the motor
To change the gear wheels or the gear ratio please follow this description
1. Unfasten and remove the M4 screws at the cover of the gear box
2. Remove cover from gear box
3. Unfasten screw for the assembly of the gear wheel
4. Unfasten screws M5 for the assembly of the motor tension of tooth belt
decreases and the tooth belt can be removed.
5. Remove gear wheels and assembly like favoured.
6. During the assembly of the motor take car for tension of the tooth belt.
7. Control all screws and assemble cover.
