Festool Carvex PS 420 EBQ Instruction Manual

9
Functional description
The pictures for the functional description are on a
fold-out page at the beginning of the instruction
manual. While reading the manual you can fold out
the page for comparison and quick reference.
Intended use
Jigsaws are designed for sawing wood and materi-
als similar to wood. With the special saw blades of-
fered by Festool, these machines can also be used
for sawing plastic, steel, aluminium, non-ferrous
metal and ceramic plates.
Festool electric power tools must only be installed
on work tables provided by Festool for this pur-
pose. If the tool is installed in another, or self-
made, work table, it can become unstable and re-
sult in serious accidents.
Operation

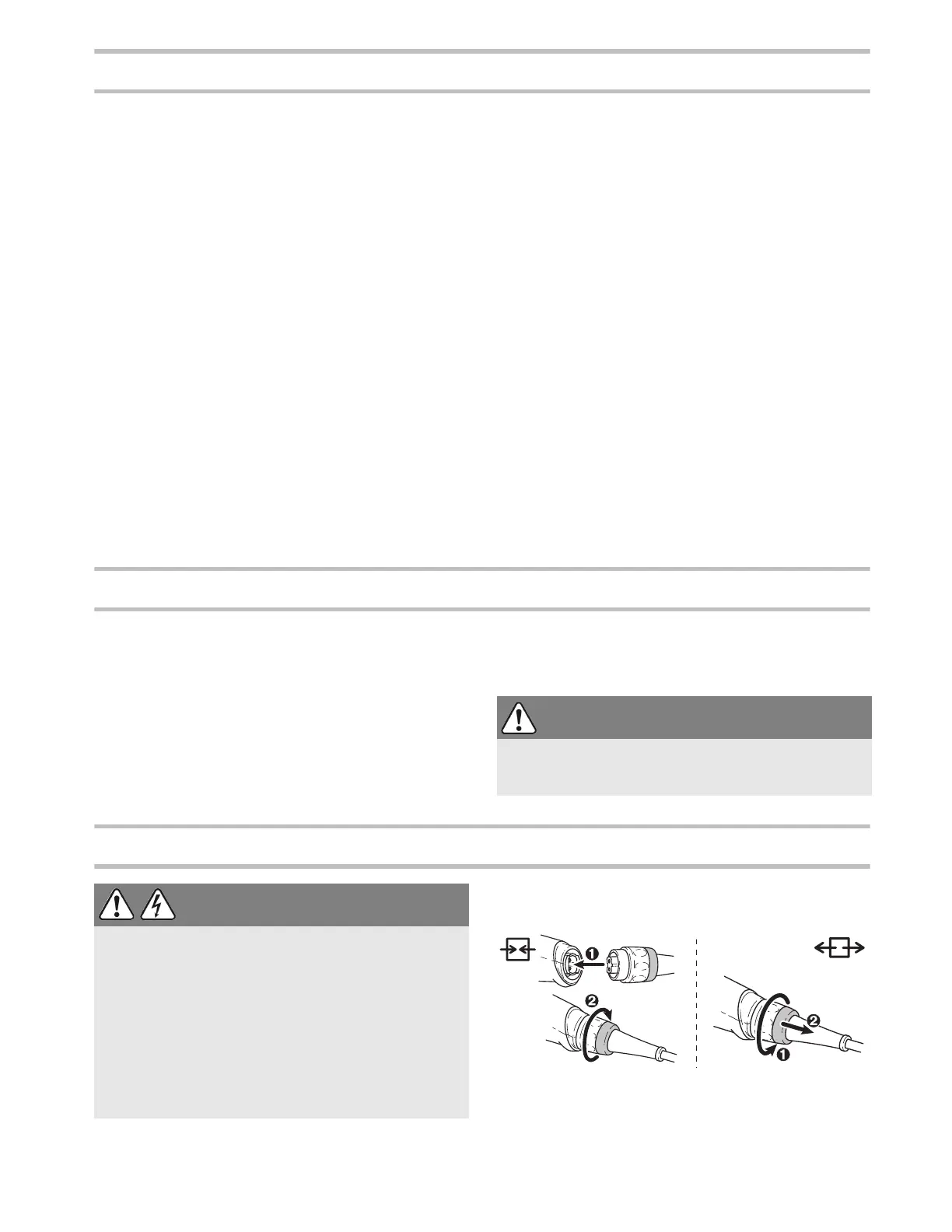

Connecting and detaching the mains power cable
[1-7] see Fig. [2] .
X Insert the plug into a socket.
[1-1] Chip guard
[1-2] On/Off switch
[1-3] Variable speed trigger (only PSB 420 EBQ)
[1-4] Switch lock (only PSB 420 EBQ)
[1-5] Adjusting wheel for stroke speed control
[1-6] Swivel plug-it connection (only PS 420
EBQ)
[1-7] Mains power cable
[1-8] Extractor connector
[1-9] Saw table change lever
[1-10] Saw blade ejection
[1-11] Replaceable saw table
[1-12] Pendulum stroke switch
[1-13] Base runner
WARNING
The user will be liable for damage due to improp-
er use.
WARNING
Unauthorised voltage or frequency!
Risk of accident
X The mains voltage and the frequency of the pow-
er source must correspond with the specifica-
tions on the machine's name plate.
X In North America, only Festool machines with
the voltage specifications 120 V/60 Hz may be
used.
