Maintenance of the magazine attachment
The attachment generally does not require any
maintenance. After long period use, we recom-
mend to clean with pressurized air.
The magazine attachment may be lubricated in the
area of the carriage guide (see picture
[14]
.
Prior to cleaning, dismantle the attachment, as
specified above.
Prior to cleaning, remove the collated screws from
the attachment, as specified in the point <Removing
the collated screws>.
Pull the attachment from the drywall screwdriver.
Disassembly of the slides
Push the depth stop
15-3
into the housing until
the arresting button
[15-1]
is at the level of the
sign for dismantling the slides
[15-2]

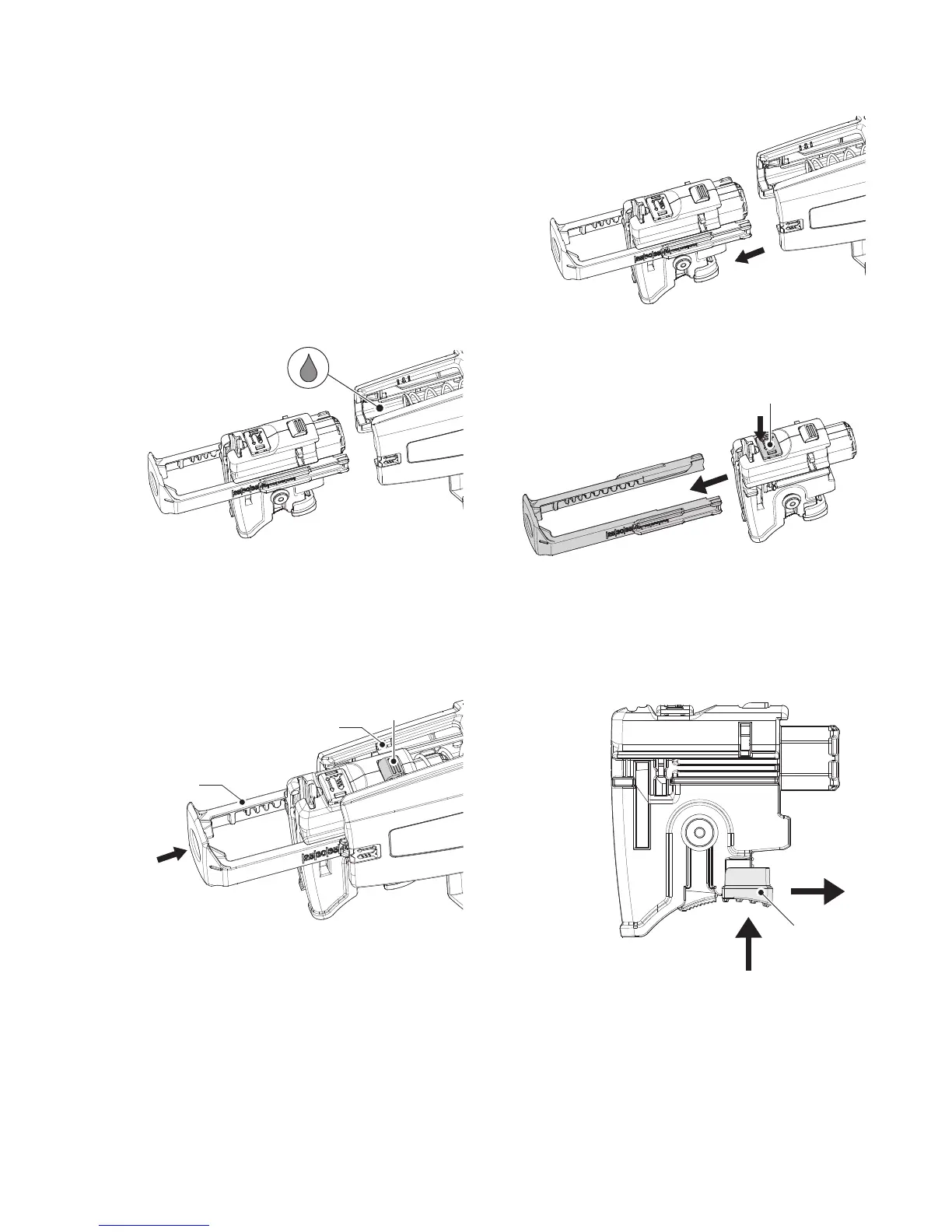

see figure
[15]
.
Press the arresting button
[15-1]
and concur-
rently remove the slides from the holder – see
figure
16
.
Press the button
17-1
and concurrently release
the depth stop – see figure
[17]
.
Transport lever disassembly
Press the button
[18-1]
and concurrently pull it
out– see figure
[18]
.
