Parts and Wiring Diagrams

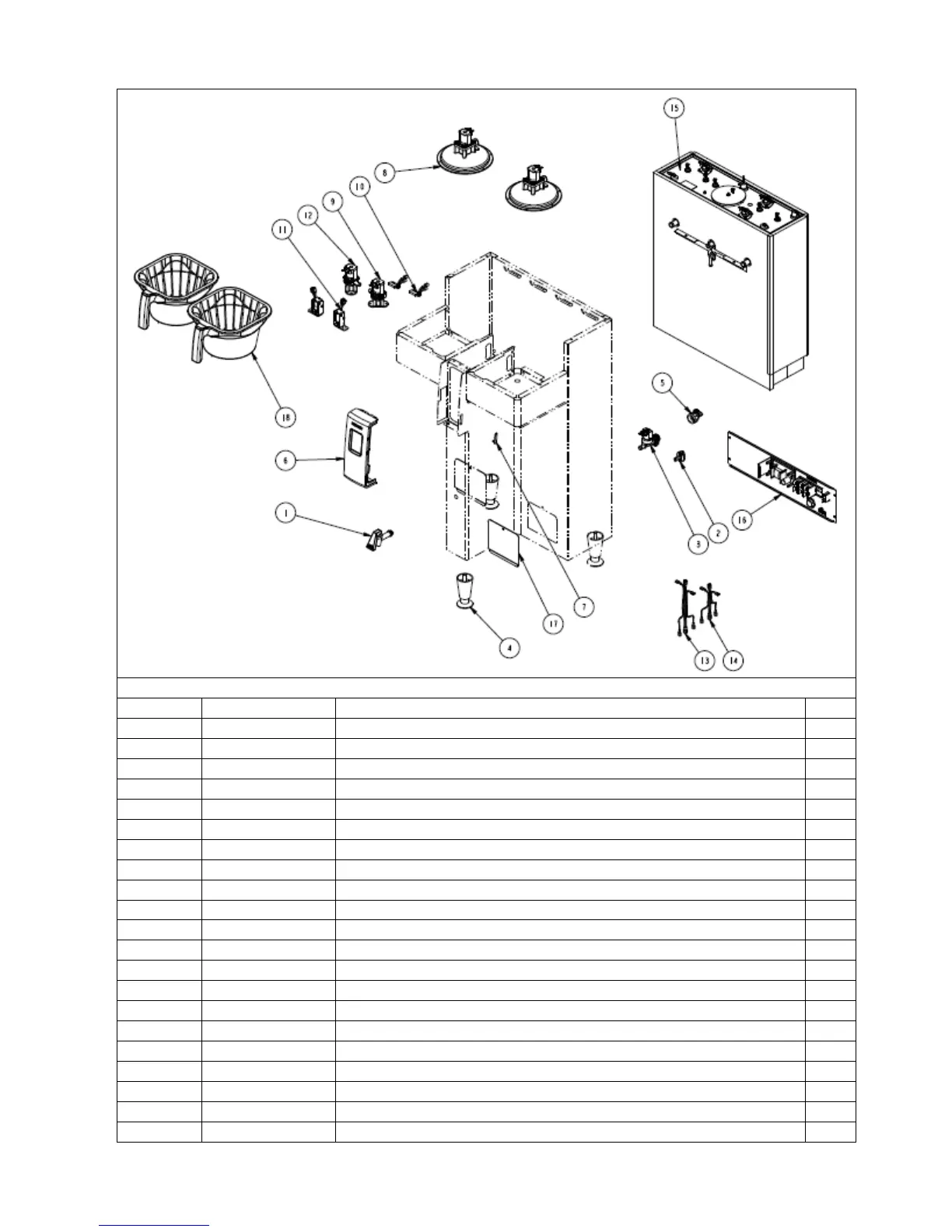

CBS-2152,XTS Drawings 1109.00065, 64, 63, 62.00 SERVICE PARTS
ITEM NO PART NO DESCRIPTION QTY
1 1071.00010.00 FAUCET HPSC-BR-8 REGULAR HANDLE 1
2 1023.00147.00 PLUG, TANK SERVICE DRAIN FOR 18GA AND UP BODY 1
3 1057.00043.00 SOLENOID VALVE, SINGLE, 180 DEG, 24VDC 1
4 1073.00007.00 LEG, FLANGE FOOT, 4" HIGH 3
5 1102.00243.00 ADAPTER ASSY, 3/4" BSP x 1/4" NPT x 3/8" TUBE 1
6 1102.00210.00 ASSEMBLY FRONT PANEL, CBS-2130, GRAVITY VERSION 1
7 1024.00040.00 CARD PLUG, HWD-2100 1
8 1102.00223.00 SPRAY HOUSING, LARGE, COMPLETE ASSEMBLY, 24 VDC 2
9 1102.00220.00 ASSEMBLY, BYPASS VALVE, RIGHT 1
10 1102.00113.00 SWITCH, REED, ASSEMBLY 2
11 1102.00219.00 ASSEMBLY, BB LOCKER, 24VDC 2
12 1102.00221.00 ASSEMBLY, BYPASS VALVE, LEFT 1
13 1402.00051.00 HARNESS LOW AMP, CBS-2142/52 XTS, CE/UL 1
14 1402.00053.00 HARNESS HIGH AMP, CBS-2152 XTS, UL 1
15 1104.00075.00 TANK ASSY, 3 X 4.0kW/240VAC, CBS-2152 XTS 1
15 1104.00074.000 TANK ASSY, 3 X 5.0kW/240VAC, CBS-2152 XTS 1
15 1104.00062.000 TANK ASSY, 3 X 3.0kW/240VAC, CBS-2152 XTS 1
16 1102.00229.00 ASSEMBLY BACK PANEL, CBS-2152 1
17 1001.00181.00 COVER FRONT, CBS-2100 XTS 2
18 B001280B1 Stainless Steel Brewbasket 2
18 B015280BN2 BB ASSEMBLY, 16" x 6", Ø.280" HOLE 2
