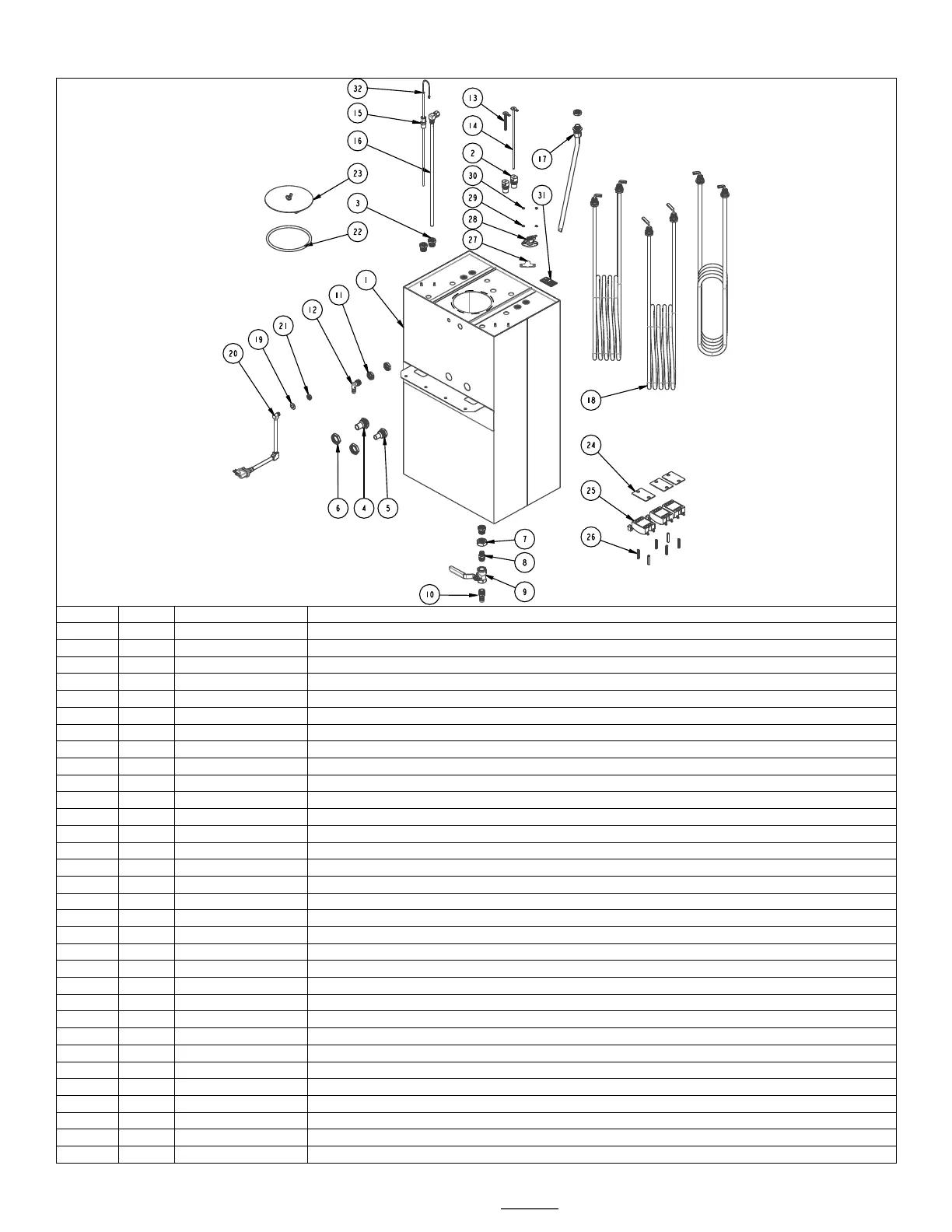

Figure 4 – CBS-70 Tank Assembly (right)
ITEM #
QTY
PART #
DESCRIPTION Drawing No. 104079 Hot water tank CBS-72-RIGHT
1
1
1114.00115.00
WELDMENT TANK, CBS-70'S
2
2
1021.00028.00
HOUSING, WATER LEVEL PROBE 0.188" DIA.
3
3
1031.00029.00
BUSHING, 3/4-16 X 1/4 NPSM, HEX HEAD
4
1
1033.00005.00
FITTING BREW, TANK CBS-70'S
5
1
1033.00006.00
FITTING BY-PASS TANK CBS-70'S
6
2
1013.00083.00
LOCKNUT, 1"-14 THREAD
7
1
1084.00022.00
NUT, 3/4-16 HEX JAM, 18-8SS
8
1
1031.00026.00
FITTING, HEX NIPPLE, 3/8 NPT X 1/4 NPT
9
1
1034.00002.00
VALVE, BALL 3/8 FPT X 3/8 FPT
10
1
1031.00025.00
FITTING, BARB, 1/2 HOSE ID X 3/8 NPT
11
3
1031.00033.00
LOCKNUT, 3/8"-18 NPT THREAD
12
1
1031.00043.00
FITTING BARB, 90° ELBOW,.3/8 HOSE ID X 3/8 MPT
13
1
1112.00029.00
PROBE WELDMENT, WATER LEVEL, 2.50" LONG
14
1
1112.00046.00
PROBE WELDMENT, WATER LEVEL, 9" LONG
15
1
1025.00001.00
FITTING, COMPRESSION MALE CONNECTOR
16
1
1112.00333.00
WELDMENT, TANK FILL TUBE
17
1
1102.00257.00
ASSEMBLY, PRESSURE TUBE
18
3
1107.00033.00
HEATER ASSEMBLY, IMMERSION 10KW/240VAC
19
1
1083.00014.00
WASHER, .812"OD X 0.412"ID FLAT
20
1
1102.00256.00
ASSEMBLY, PRESSURE SWITCH LINE, CBS-70'S
21
1
1031.00020.00
LOCKNUT 1/8" STRAIGHT PIPE THREAD
22
1
1024.00072.00
GASKET, TANK COVER, CBS-70'S
23
1
1114.00117.00
WELDMENT, TANK COVER, CBS-70'S
24
3
1003.00140.00
ALUMINUM BRACKET FOR SSR
25
3
1108.00022.00
ASSEMBLY SSR 125A/600V, CBS-70'S
26
6
1081.00042.00
STANDOFF, 1/4" HEX
27
1
1003.00005.00
BRACKET, ONE SHOT THERMOSTAT
28
1
1053.00004.00
THERMOSTAT, SINGLE SHOT, 25A
29
2
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
30
2
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
31
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
32
1
1102.00145.00
TEMP. PROBE ASSEMBLY, 14" LG
Drawing No. 1104.0076.00
CBS-72 (r) hot water tank
