Fetco CBS-71A - Rough-In Drawings

Go to fetco.com for the latest versions of all information Page 4 CBS-7000 Series Brewers & Dispensers P186 JANUARY 2020

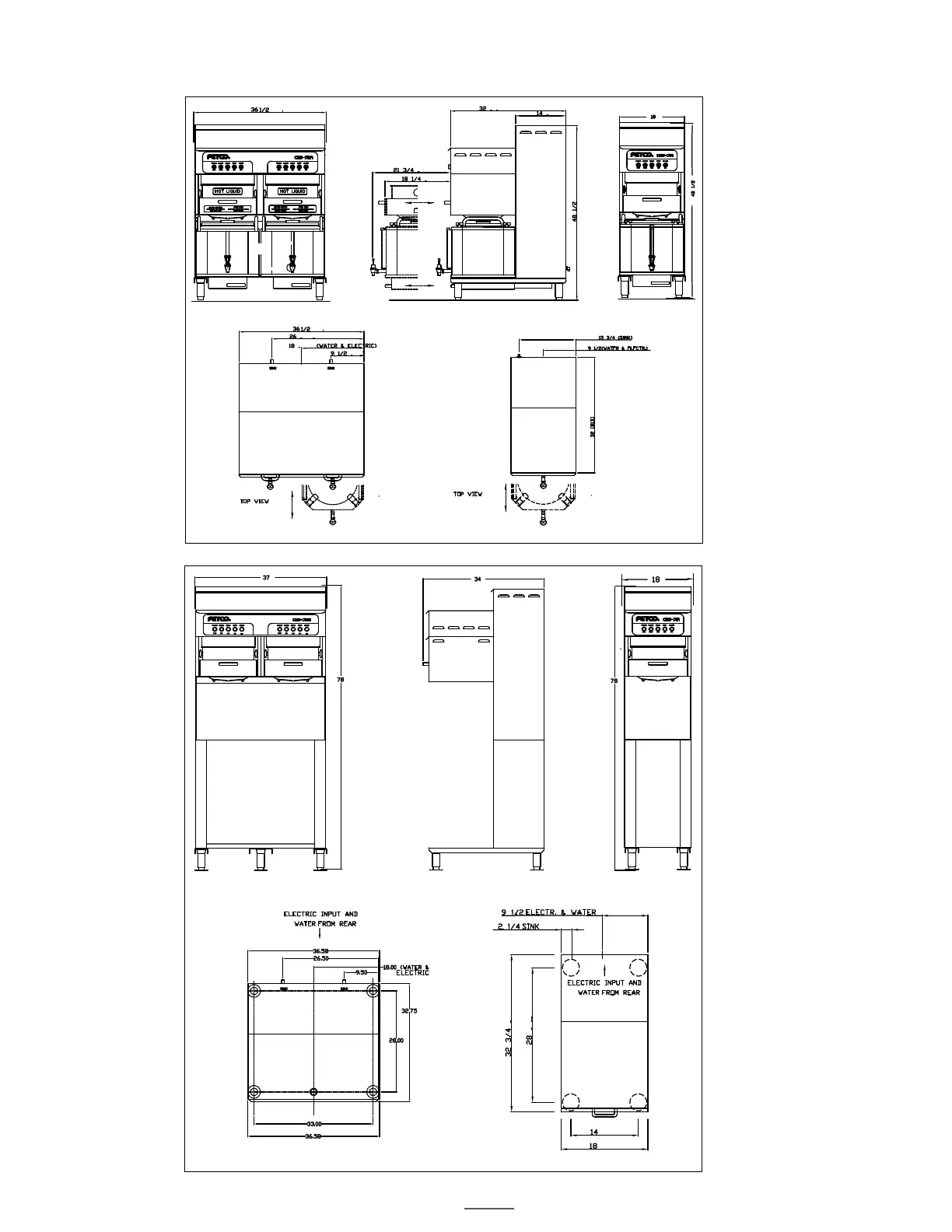

Rough-in drawings
CBS-72AC CBS-72AC & CBS-71AC [si d e ) CBS-71AC
CBS-72AC fixture placement CBS-71AC fixture placement
CBS-72A
CBS-72A [Dispenser drawer opening for all CBS
-70 models] CBS-71A
CBS-72A fixture placement CBS-71A fixture placement
CBS
-71A and CBS-72A Rough-in drawings
CBS-71AC and CBS-72AC Rough-in
