Fetco CBS-71A - Page 17

Go to fetco.com for the latest versions of all information Page 17 CBS-7000 Series Brewers & Dispensers P186 JANUARY 2020

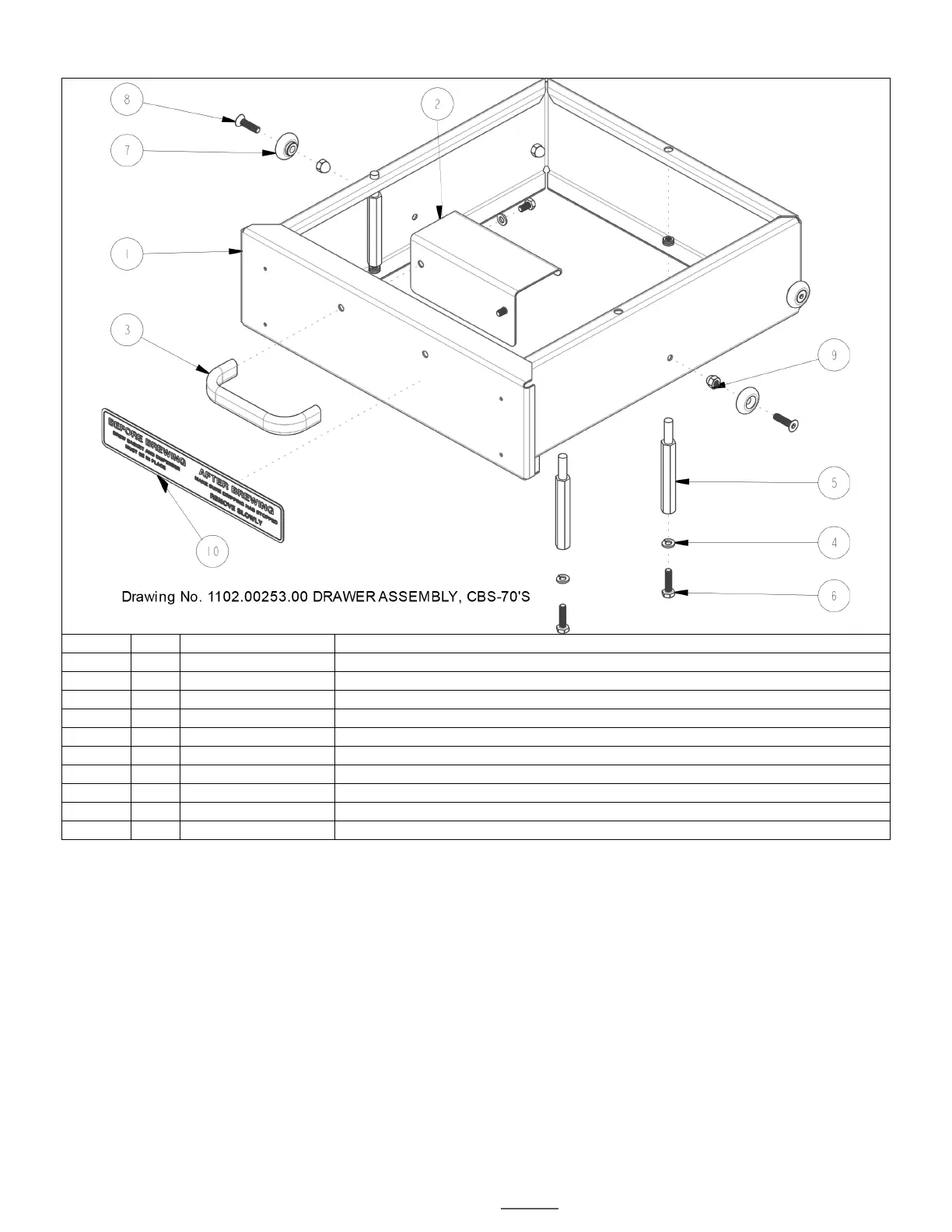

Figure 6– CBS-72A Brew Basket Drawer Assembly
ITEM #
QTY
PART #
DESCRIPTION Drawer Assembly Drawing No. 1102.00253.00
1
1
1112.00329.00
WELDMENT, DRAWER, CBS-70'S
2
1
1001.00219.00
BRACKET, DRAWER, CBS-70'S
3
1
1072.00004.00
HANDLE, STAINLESS STEEL M6 x 12mm
4
3
1083.00021.00
WASHER, SPRING LOCK, 1/4" SCREW, 18-8 SS
5
3
1021.00020.00
BREW BASKET HEIGHT REGULATOR
6
3
1082.00087.00
SCREW, 1/4-20 X 1.0"LG. HEX HD CAP
7
4
1073.00012.00-3
BALL BEARING ROLLER, BRUSHED FINISH
8
4
1073.00012.00-4
SCREW, HEX FLAT HD., 1/4-20 x 1" LG.
9
4
84014
NUT CAP 1/4-20
10
1
1046.00033.00
LABEL BEFORE/AFTER BREWING, CBS-70's
