Fetco Extractor Plus CBS-1241 - Specifications and Requirements

Go to fetco.com for the latest versions of all information Page 2 User Guide & Operator instructions P212e0November 2021
Specifications and Requirements
Water Requirements:
Electrical: See electrical configuration chart. 120
Volt; 208-240 Volt; 230 Volt and user configurable
CBS-1241 &1242: 20-75 psig, (138-517kPa) 1½gpm/(5.7lpm)
Water inlet fitting is a 3/8 inch male flare.
Brewer supplied with inlet valve adaptor for BSP to SAE
Tank Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Brew Volume: Full Batch 1 gallon; (second batch ¾ gallon)
User adjustable from 0.26 gallon to 1-1/4 gallons per brew
Water supply: (Optimal) 100-150TDS
All beverage equipment must use filtered water.
Calibrated for 1.0 gal brew/3.75 L & ¾ gallon per brew Brew Basket 13” X 5” Coffee Filter 13” X 5 or FETCO# F002
Total Brew Cycle—Factory default setting: First batch: 5:30 minutes=[4 minute brew time + 1.30 minute drip delay]
Second batch: 5:00 minutes=[3:30 minute brew time + 1:30 minute drip delay]
Brew-Process parameters are user controllable for:
Brew Volume, Brew Time, Prewet Percent, Prewet Delay, Bypass, and Drip Delay
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping Dimensions
CBS-1241
Brewer
34 ½ in
880 mm
11 ¾ in
300 mm
20 3/8 in
520 mm
4.5 gallon
17 L
29 lbs
13.2 kg
55 lbs
25.0 kg
41 lbs
18.6 kg
35” x 17” x 22”
88.9 x 43.2 x 55.9 cm
CBS-1242
Brewer
34 ½ in
880 mm
19 ¾ in
500 mm
20 3/8 in
520 mm
8.5 gallon
32 L
47 lbs
21.3 kg
92 lbs
41.7 kg
58 lbs
26.. kg
35” x 23” x 25”
88.9 x 58.4 x 63.5 cm
Calibrated for 1.0 gal brew/3.75 L Brew Basket 13” X 5” Coffee Filter 13” X 5 or FETCO# F002

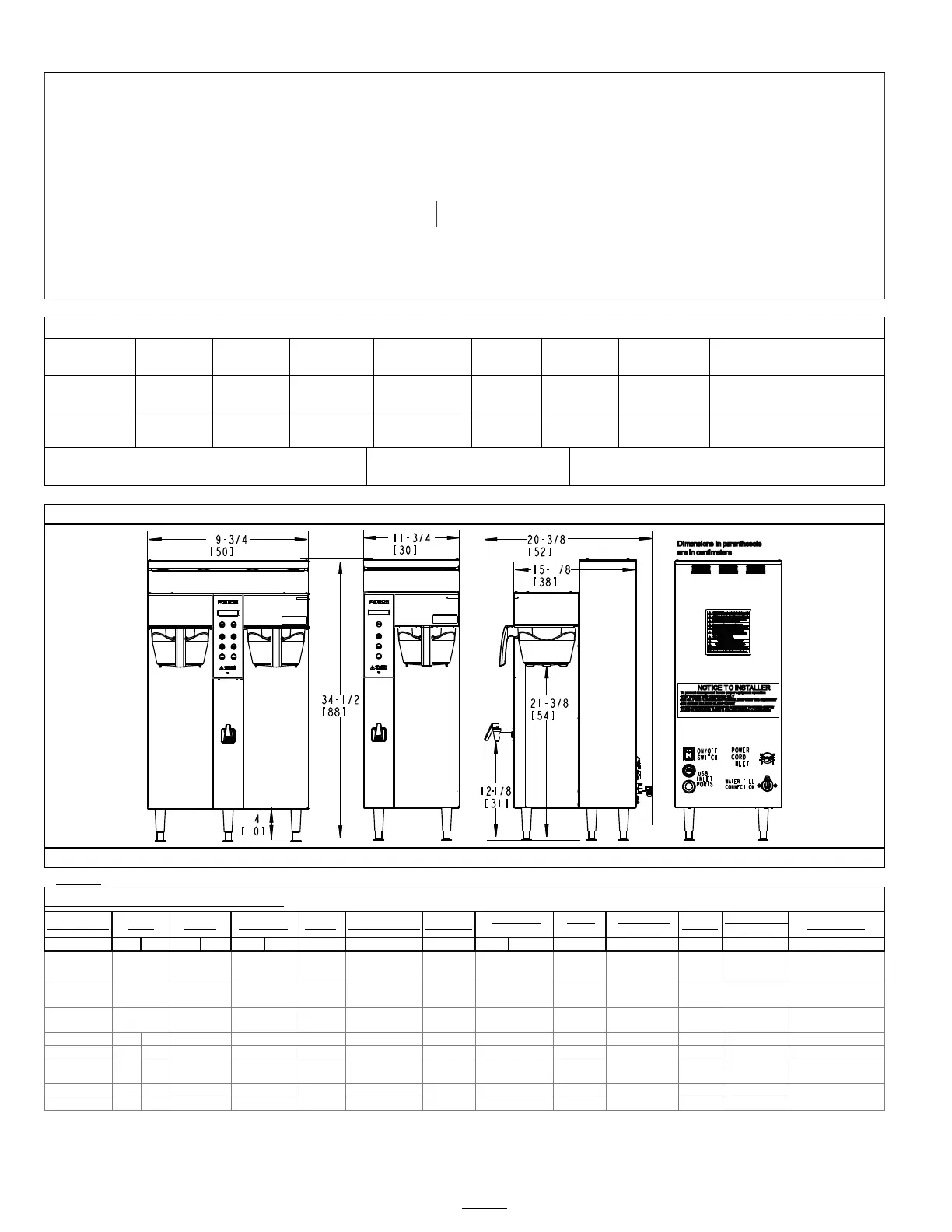

Rough-In Drawings 1201.00060.00 (CBS-1241) 1201.00061.00 (CBS-2142)
CBS-1242 Front CBS-1241 Front Side (both) Back (both)
EXAMPLE: SKU E1241US-1A115-PM001
SKU NUMBER IDENTIFICATION KEY
Product Line Level Family Region ID Phase Voltage Range # Heaters
Individual
Heater Wattage
Brew
Basket
Hot Water
Faucet
Bypass
Brew Basket
Locks
Power Cord
E
1
2
4
1
U
S
1
A
1
1
5
P
M
0
0
1
E=extractor
US =United
States
1 A = 100-120 1 1.5 P=plastic M=manual 1=Yes 1=Yes 0=Terminal Block
12=PLUS
Series
41=
single side
IN =
International
2 B = 200-240 2 1.7 M=metal A=automatic 0=no 0=no 1= NEMA 5-15P
42=
dual side
CE = CE 3 C = 380-415 3 2.3 N=None 2=NEMA 5-20P
NM = NOM
U = 1 or 3
D = 440-480
3.0
3=NEMA 6-15P
4.0
4=NEMA 6-30P
X=120 or 240
Dual Voltage
5.
0
5=CEE 7/7 Schuko
6=UK1-13P
7= AUSTRALIAN
