Programing Menu Layout
A10 to A70
B10-B40
C10-C50
D10-D90
E10-E70
F10-F120
G1-G15
H10-H11
Batch Parameters
General Settings
Service Inputs
Service Outputs
Calibration
Service Menu
Counters
Exit and Save
|
|
|
|
|
|
|
|
A11
Brew Volume
B1
Tank Temperature
C1
LLC Probe
D1
Heater SSR
E1
Ready Temp. Offset
F1
Firmware Ver.
G1
Filter Used
H1
Save Changes
|
|
|
|
|
|
|
|
A12
Brew Time
B2
Brew at Temp
C2
Basket Sensor
D2
Fill Valve
E2
LLC Sensitivity
F2
Bootloader Ver.
G2
Filter Life
H2
EXIT?
|
|
|
|
|
|
|
A13
Prewet Percent
B5
Show Tank Temp
C4
Tank Temperature
D3
Lt Brew Valve
E3
Slow Flow Compensate
F3
Select Model
G3
Filter Reset
|
|
|
|
|
|
|
A14
Prewet Delay
B4
Units of Temp
C5
USB Drive
D4
Rt Brew Valve
E4
Lt Brew Flow
F4
Option Bypass
G4
Counter Reset
|
|
|
|
|
|
|
A16
Drip Delay
B6
Units of Volume
C6
Keyboard Test
D12
LCD Brightness %
E5
Rt Brew Flow
F5
Option BB Lock
G5
Choose Counter
|
|
|
|
|
A20
Batch (2) Enabled
B7
Customer Name
D13
LED Brightness %
F8
Backup to USB
G10
Brewer Volume [T]
|
|
|
|
A21
Brew Volume
B7
Customers Name
F9
Restore from USB
G11
Brewer Volume
|
|
|
|
A22
Brew Time
B9
Demo Mode
F10
Restore Defaults
G12
LT Brews[T]
|
|
|
|
A23
Prewet Percent
B10
Eco Mode
F11
Error Log
G13
LT Brews
|
|
|
|
A26
Drip Delay
B11
Eco Idle Time
F12
Erase Error Log
G14
Rt Brews [T]
|
|
|
|
A30
Batch (3) Enabled
B12
Eco Idle Temp
F13
Service Phone#
G15
Rt Brews
|
|
|
A90
Copy Batch
B13
Filter Life
F14
Override Lt BBS
See Page 12
|
|
A91
Copy Batch: From
F15
Override Rt BBS
|
|
A92
PASTE: To
F16
Override Lt BBL
|
F17
Override Rt BBL

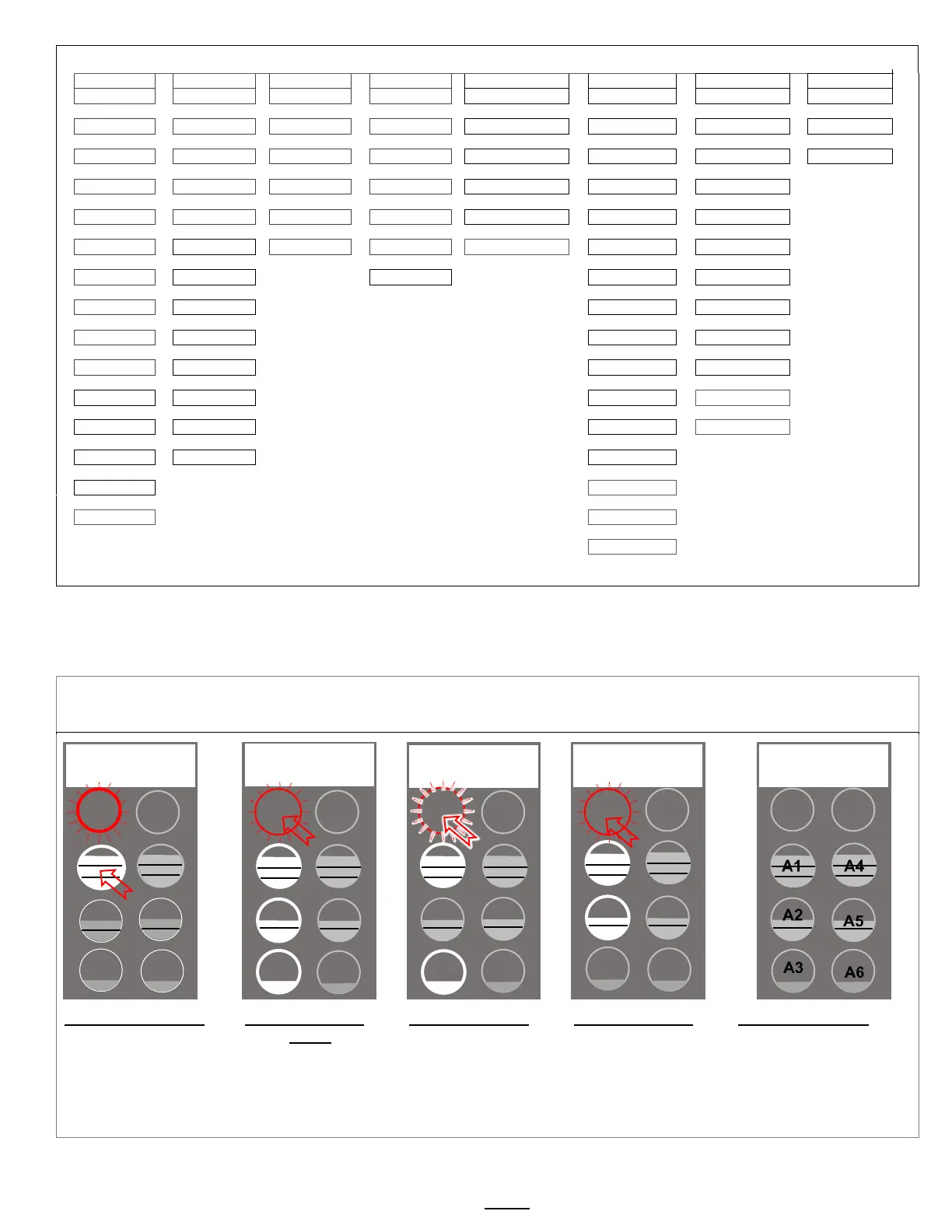

Left and Right top and middle batches are permanent SEE BOX on the following page for all “A” menus
The “A” menu is the most accessed menu. It is for programming the batch volumes, brewing parameters, enabling or
disabling brew buttons. The “A” menu moves through the six positions(CBS-1242+) or three positions(CBS-1241+) by
entering the menu and pressing the left stop button. (only the left side is active for programming the CBS-1242+)
The A menus [A1-3 or A1-6] correspond to batch buttons [3 or 6] on the touch panel
Access the A menus to PROGRAM & make changes to individual menu recipes. Menu settings can be copied
Menu positions A1 and A4 [top position] are permanent. Menus A2, A3, A5, A6 can be removed by operator if desired
From A PRG screen
Press button 1 to go to
the A menu access
screen
From A11 screen
Press STOP to scroll
to A20.
(A1&A4 are permanent)
From A20 screen
Press STOP to
scroll through the
remaining (3 or 6)
“A” menus. Make
any changes as
required
From A60 screen
Scroll out to
remaining A10-to
A70 programming
keys. See SAVE &
EXIT in previous
table
For single and twin
Position of batch buttons
for CBS-1232+
The CBS-1231+ single
position brewer has one
row of buttons
Batch Program
A
STOP
STOP
STOP
Brew Volume
A1.10 3.80L +/-
STOP
STOP
Batch Enabled
A6.00 NO+
STOP
(Dual model shown)
Batches A1 to A6
STOP
STOP
A1
A2
A3
A4
A5
A6
Batch Enabled
A2.00 YES -
STOP
STOP
