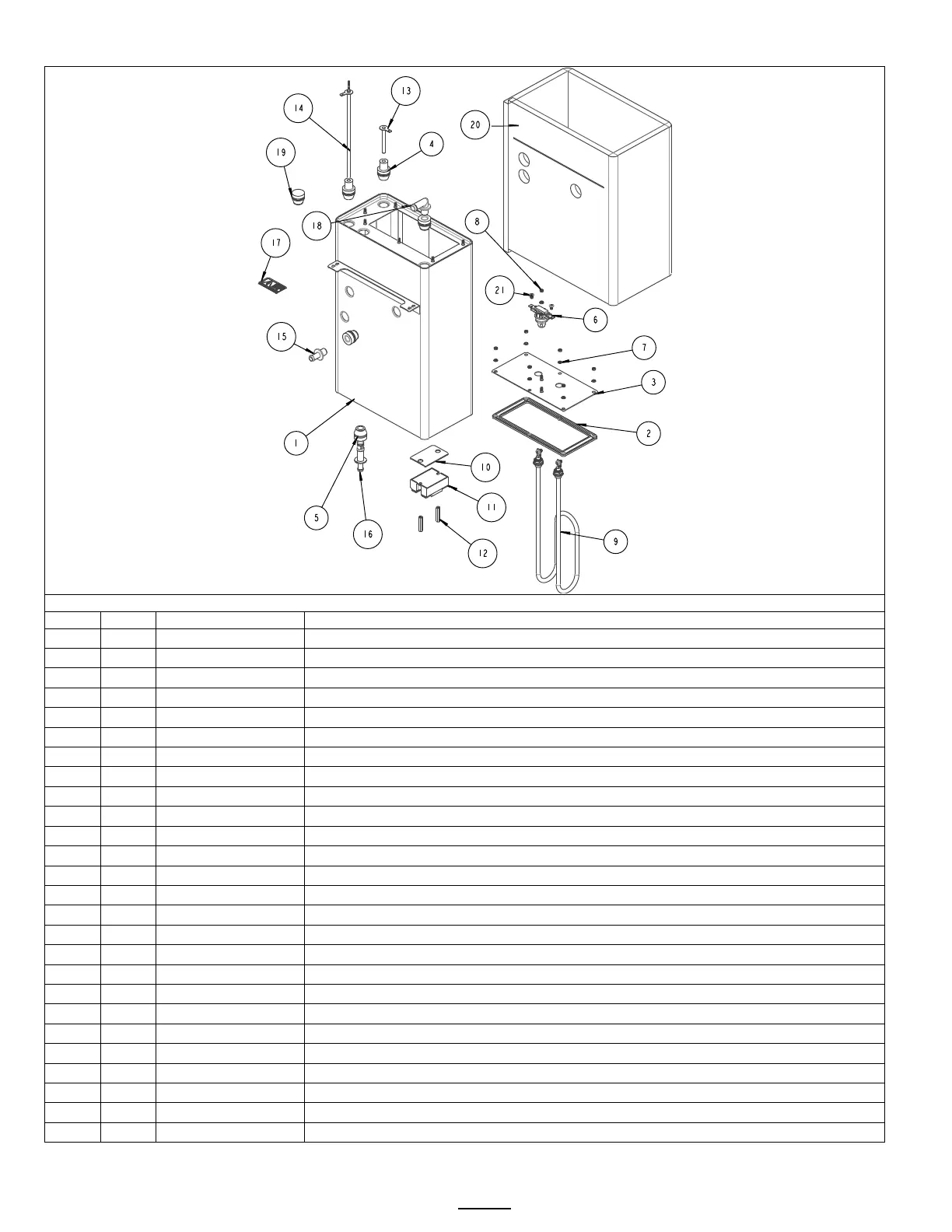

CBS-1241 Tank Assembly
TANK ASSY, CBS-1241 Single Heater Drawing number 1104.000178.00, 1104.000180.00, 1104.000182.00, 1104.000184.00, 1104.000185.00, 1104.000186.00
REF
QTY
Part number
Description
1
1
1114.00170.00
WELDMENT, TANK, CBS-2241
2
1
1024.00114.00
TANK GASKET - NG HEATER PLATE, TWO ELEMENT
3
1
1114.00184.00
WELDMENT TANK HEATER BRACKET, NG-2231, SINGLE
4
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
5
3
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
6
1
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A,
7
8
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
8
8
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
9
1
1107.00030.00
HEATER ASSEMBLY, IMMERSION 1500W/120VAC
9
1
1107.00031.00
HEATER ASSEMBLY, IMMERSION 1700W/120VAC
9
1
1107.00029.00
HEATER ASSEMBLY, IMMERSION 2300W/120VAC
9
1
1107.00037.00
HEATER ASSEMBLY, IMMERSION 2300W/240VAC
9
1
1107.00005.00
HEATER ASSEMBLY,IMMERSION, 3000W, 240VAC
9
1
1107.00010.00
HEATER ASSEMBLY, IMMERSION 4000W/240VAC
10
1
1003.00140.00
ALUMINUM BRACKET FOR SSR
11
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
12
2
1081.00042.00
STANDOFF, ¼” HEX
13
1
1112.00019.00
PROBE WELDMENT, WATER LEVEL 2.600” LG
14
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8” LONG
15
1
1023.00168.00
FITTING, STRAIGHT, GROMMET, .400”
16
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
17
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
18
1
1024.00051.00
GROMMET, SILICONE, BLANK
19
1
1023.00212.00
FITTING, ELBOW, GROMMET, .500”
20
1
1022.00115.00
TANK INSULATION, CBS-2241
21
2
1082.00136.00
BRASS SCREW, #8-32 X ¼”, PHILLIPS PAN HEAD
