104
IN AN EMERGENCY

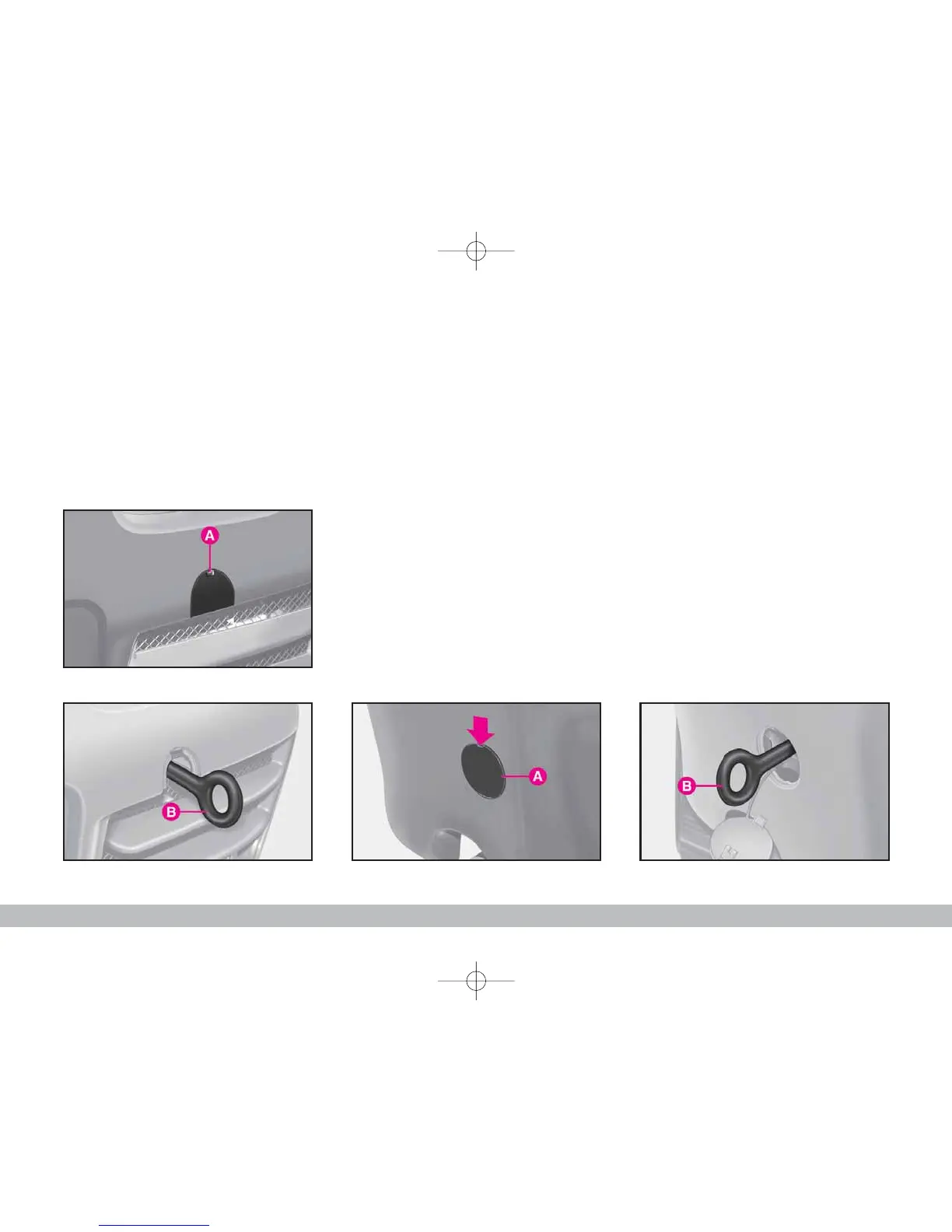

2) Remove the flap A-fig. 46 on the
bumper levering with a screwdriver.
4) Remove the flap A-fig. 48 on the
rear bumper levering with a screw-
driver in the point shown by the ar-
row and fasten the ring fully B-fig. 49
on the threaded pin which appears
when the cover is removed .
This device is used for towing an-
other vehicle.
fig. 47
P4Q00140
fig. 46
P4Q00139
fig. 49
P4Q00142
fig. 48
P4Q00141
3) Screw the ring B-fig. 47 down
fully onto the threaded pin that you
will see when you remove the cover.
