GETTING TO KNOW YOUR CAR

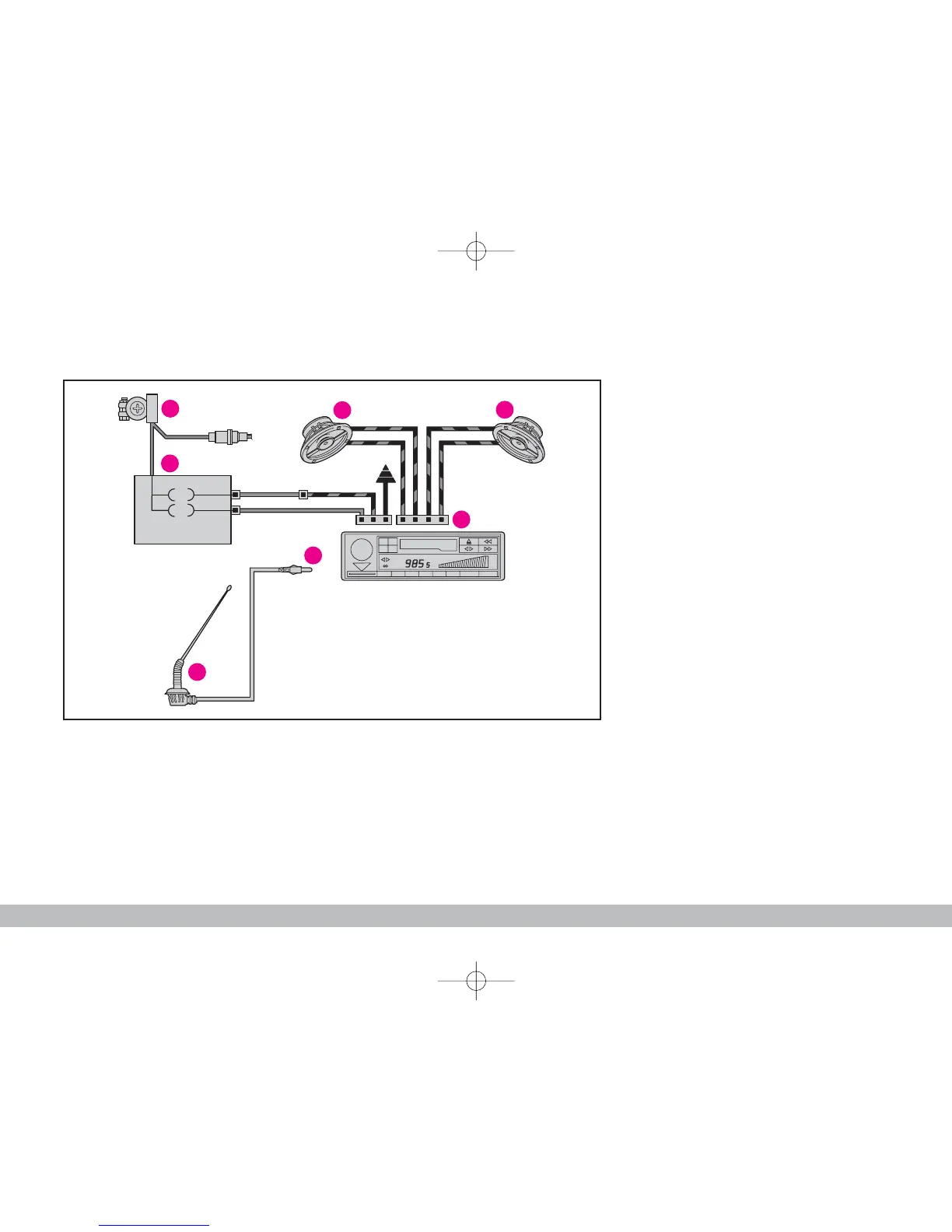

WIRING DIAGRAM AND ADDITIONAL BRANCHES fig. 86
A - Aerial
B - Radio receiver unit connection
C - Speaker on right dashboard
panel
D - Speaker on left dashboard panel
E - Power supply fuses
F - Power supply with extra fuse for
amplifier installation only (for systems
with 20 + 20W output or higher).
Wire colour coding:
A=light blue - BN=white/black - N=black -
NZ=black/purple - RN=red/black -
RV=red/green - SN=pink/black
F
E
D
C
B
B
A
15
ST EQ
NL CR
CARD
1 2 3 4 5 6 SEARCH SCAN.
22
RN
BN
NZ
SN
N
RV
A
fig. 86
P4Q00181
