IN AN EMERGENCY
REAR LIGHT CLUSTER
To replace a bulb:
1) loosen the two screws A-fig. 25
from the respective housings and tip
the lens;
2) remove bulb holder C-fig. 26 re-
leasing clip D;
3) remove bulbs fig. 27, pushing
them slightly and turning them anti-
clockwise;
E - double filament bulb 12V-21/5W
for brake and taillights;
F - 12V-21W bulb for direction in-
dicators;
G - 12V-21W bulb for right light
cluster reversing light; left light cluster
rear foglight.
NUMBER PLATE LIGHTS
To replace a bulb:
1) with a screwdriver, press clip as
shown in fig. 28;
2) remove the bulb holder A-fig. 29
from the lens by turning it slightly;

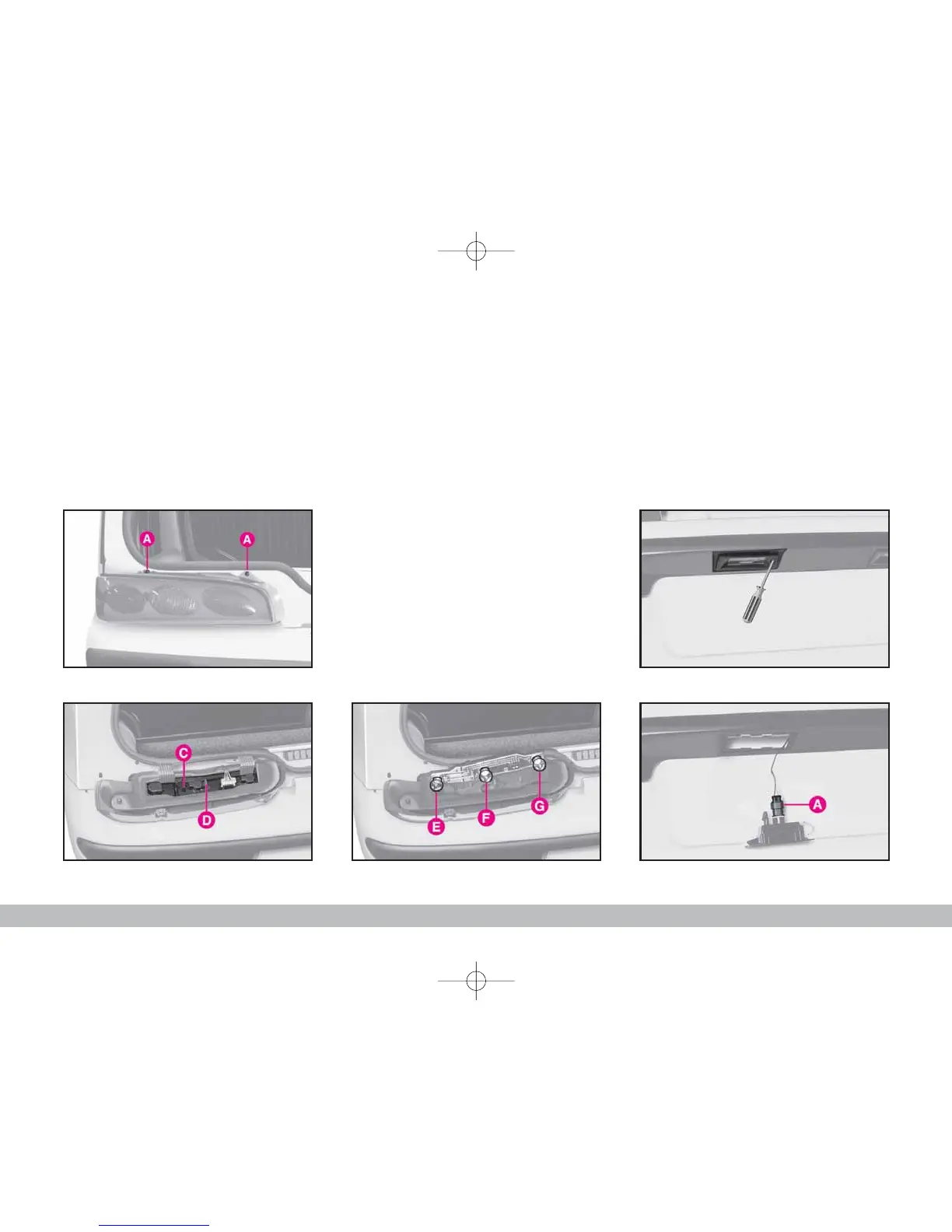

fig. 25
P4Q00175
fig. 26
P4Q00112
fig. 27
P4Q00113
fig. 28
P4Q00114
fig. 29
P4Q00115
