GETTING TO KNOW YOUR CAR

HEATING AND VENTILATION

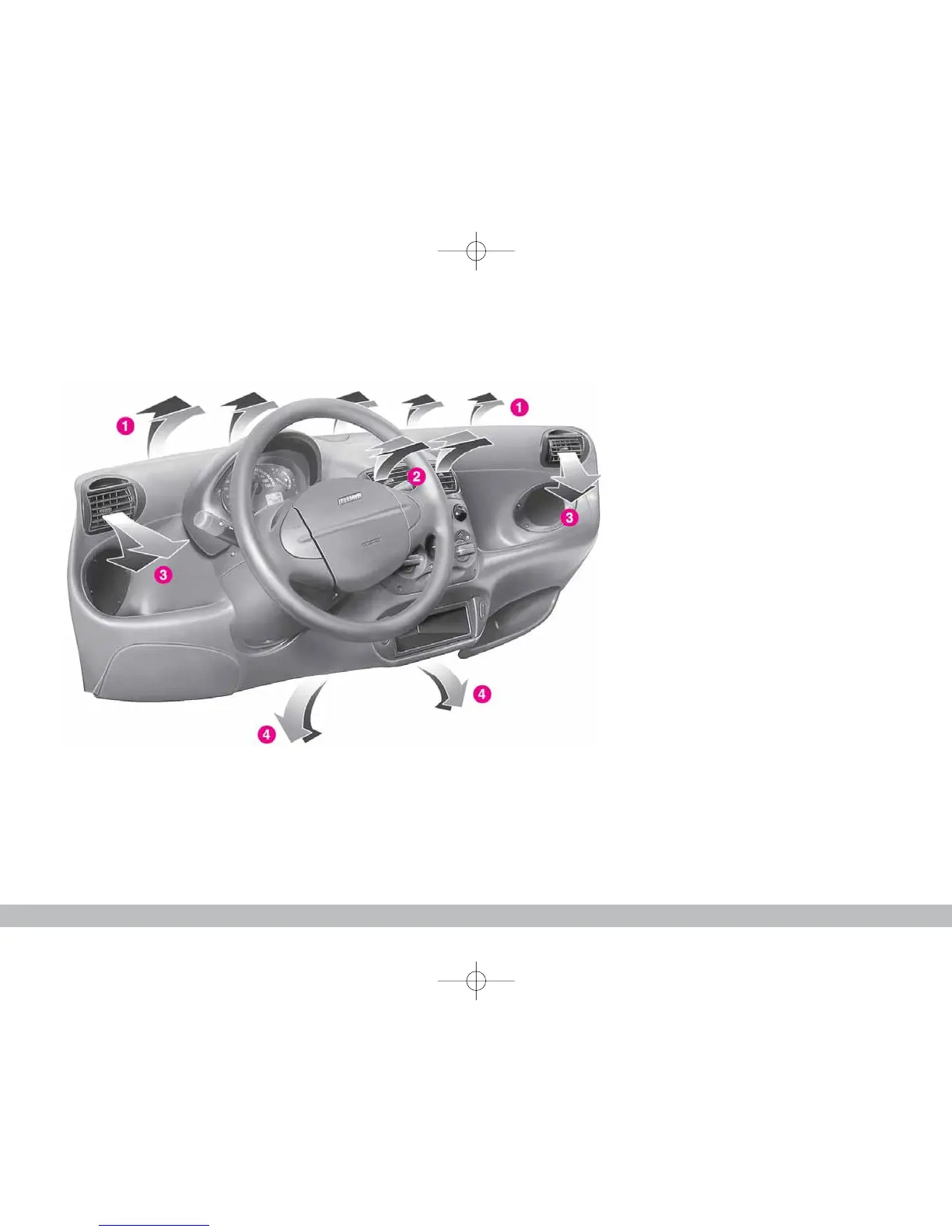

1. Vent for defrosting or demisting

the windscreen

2. Central adjustable vent

3. Side adjustable vent

4. Side vents conveying air to front

footwell.

fig. 32

P4Q01013
