DRIVING YOUR CAR
Fasten the tow hitch to the body
without drilling or trimming the rear
bumper that would be visible when
the tow hitch is removed.
IMPORTANT A clearly visible
plate of a suitable size and made of
suitable material bearing the following:
MAX LOAD ON BALL COUPLING
70 kg.
After assembly, seal the
holes to prevent exhaust
fumes from entering the
vehicle.
E
D
C
A
B
1
2
3
4
5
6
7
M
N
V
G
R
A
N
fig. 4
P4Q00178
A=light blue - G=yellow - M=brown N=black - R=red - V=green

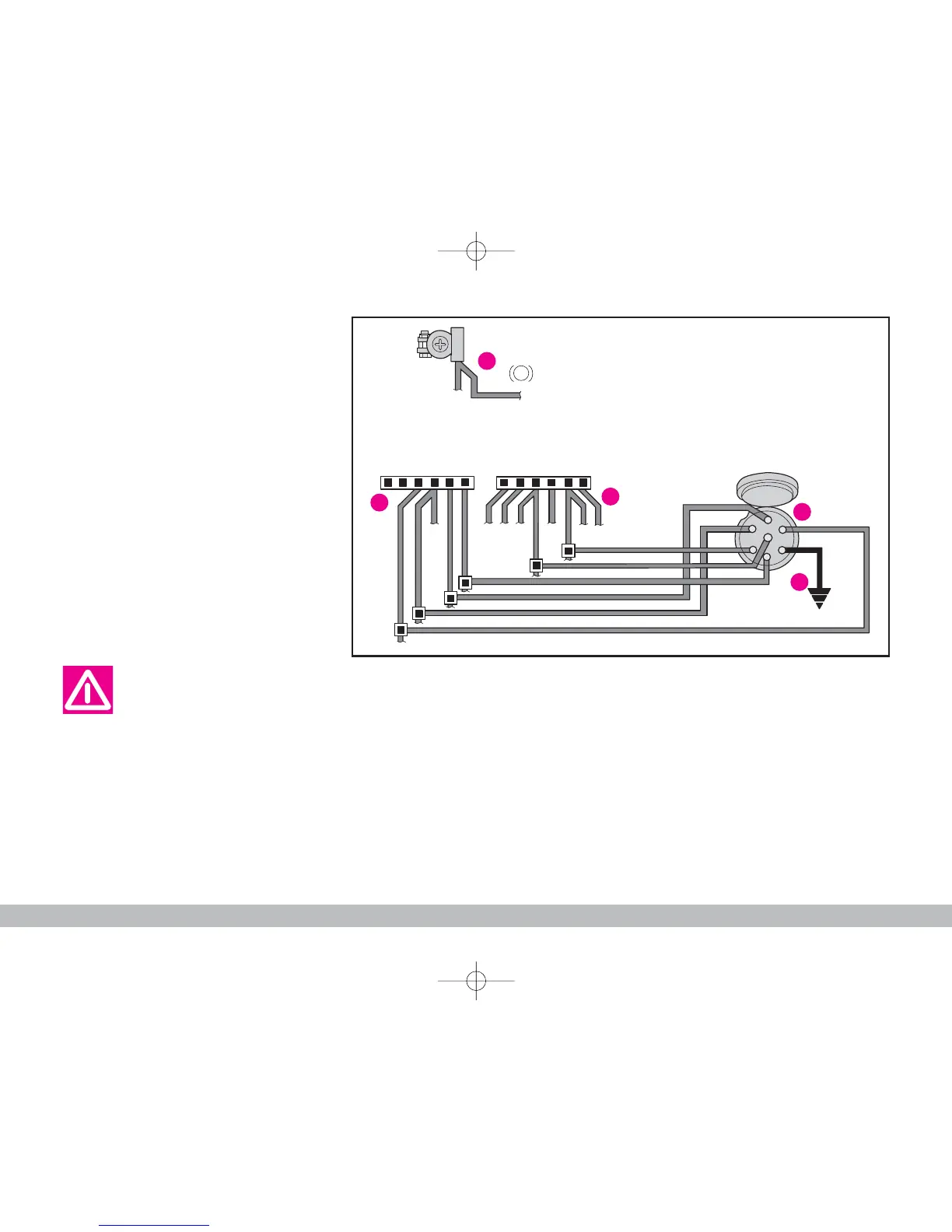

WIRING DIAGRAM fig. 4
A - Seven pole coupling on tow hitch
B - Rear earth wire connection
C - Taillight power connection
D - Rear foglight, brake light and direction indicator connection
E - Electromagnetic brake power connection.
