Forced ventilation Depending on the equipment, the skylight will be equipped with a forced ven-
tilation (Fig. 33,1). The skylights with forced ventilation are installed in the
living area and in the toilet compartment.
7.5.2 Heki skylight (mini and midi)
The Heki skylight is opened on one side only.
Opening:
 Press the safety knob (Fig. 34,2) and pull the bar (Fig. 34,1) down with both
hands.
 Pull the bar (Fig. 35,1) in the guides (Fig. 35,2) to the rearmost position
(Fig. 35,3).
Closing:
 Use both hands to push the bar (Fig. 35,1) slightly upwards.
 Push the bar back in the guides.
 Push the bar upwards with both hands until it is above the safety knob
(Fig. 34,2).

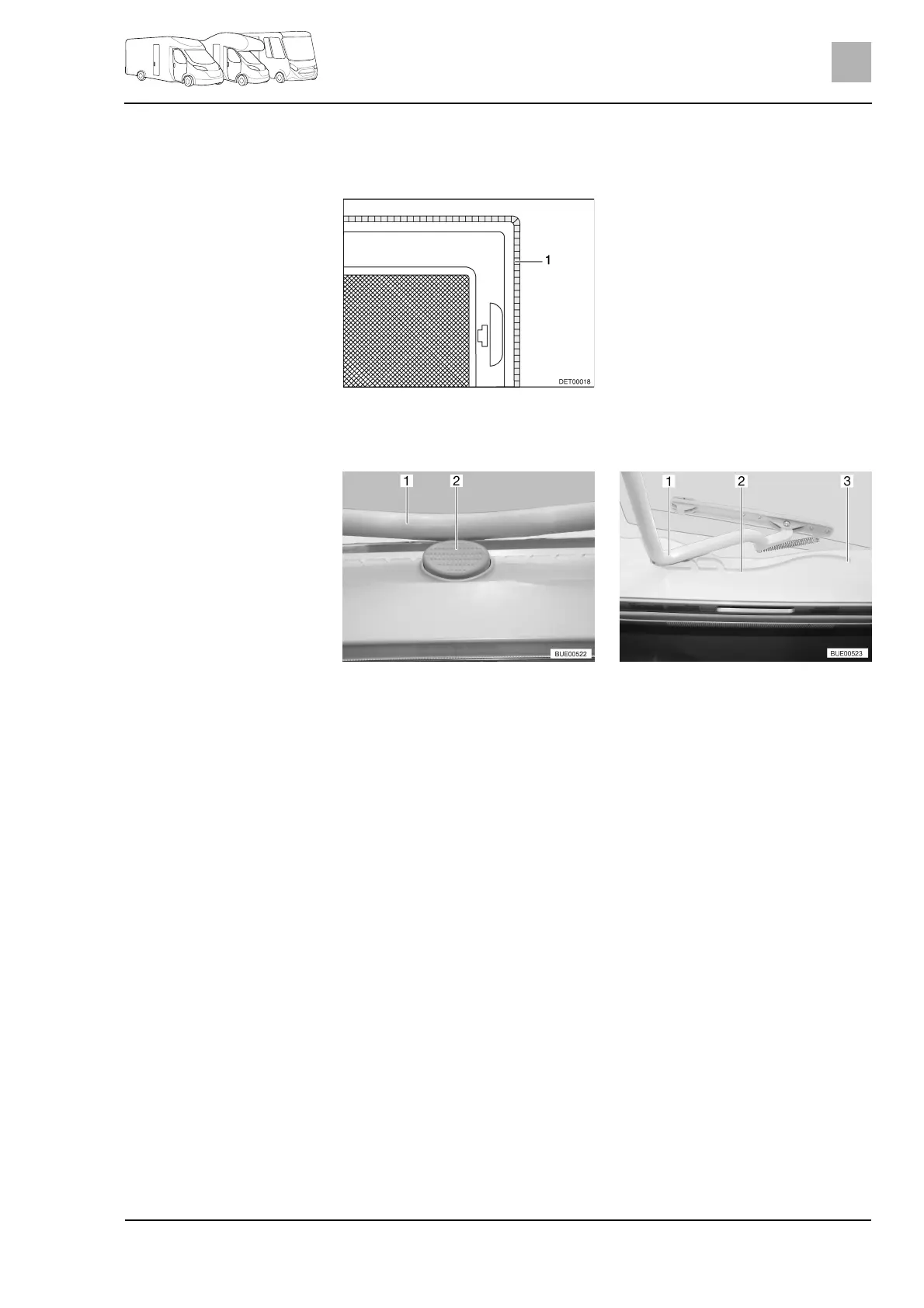

Fig. 33 Forced ventilation
Fig. 34 Safety knob on the Heki sky-
light
Fig. 35 Heki skylight, guide
