Gas system
8
8.5 Gas isolator taps
A gas isolator tap (Fig. 66) for every gas device is built into the vehicle.
The gas isolator taps can be found on the front of the cooker.
Opening:
 Position the gas isolator tap of the corresponding appliance parallel
(Fig. 67,1) to the pipe (Fig. 67,4) leading to the gas appliance.
Closing:
 Position the gas isolator tap of the corresponding appliance transverse
(Fig. 67,2) to the pipe (Fig. 67,4) leading to the gas appliance.

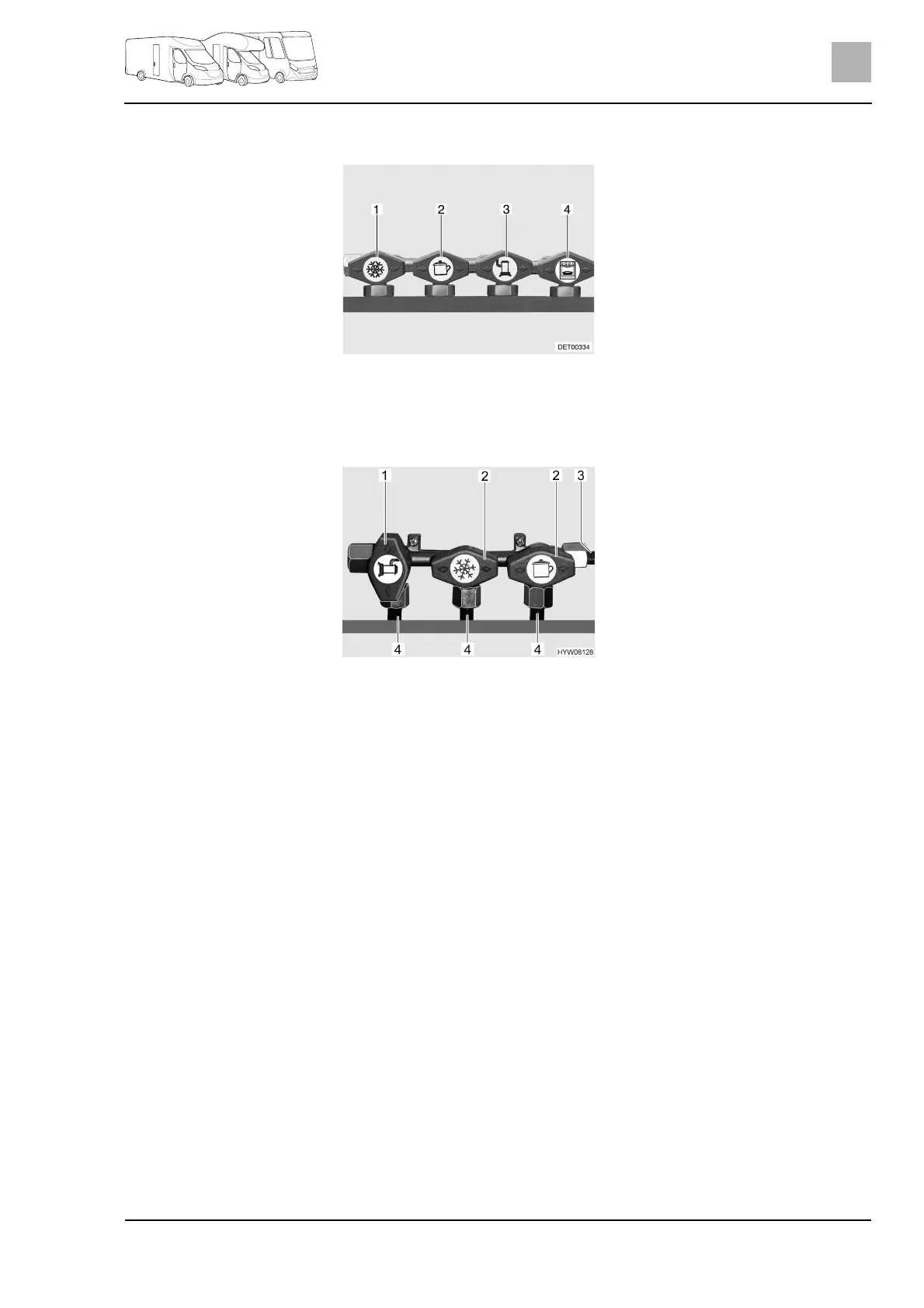

Fig. 66 Symbols for the gas isolator
taps
1 Refrigerator
2Cooker
3 Heater/boiler
4Oven
Fig. 67 Gas isolator taps position
(example)
1 Gas isolator tap open
2 Gas isolator tap closed
3 Gas pipe
4 Pipe to the gas appliance
