Converting the bunk bed
into the rear garage:
 Pull on the loop (Fig. 52,3) and release the latch (Fig. 52,1).
 Pull the slatted frame (Fig. 52,2) together with the mattress forward until it
latches in place.
Access ladder Always use the access ladder provided as standard to reach the top bed.
Attaching:
 Attach the access ladder with the rails to the holder (Fig. 53,3) on the panel.
Safety net The safety net (Fig. 53,1) is stored as standard between the mattress and
slatted frame. Do not use the safety net until the person is already in bed.
Setting up:
 Fasten the retaining straps (Fig. 53,2) to the holders on the ceiling.
7.9.4 Fixed bed (gas-pressure springs)
A storage space is underneath the bed. Lift up the slatted frame to place items
in the storage space or to empty it from the inside of the vehicle.

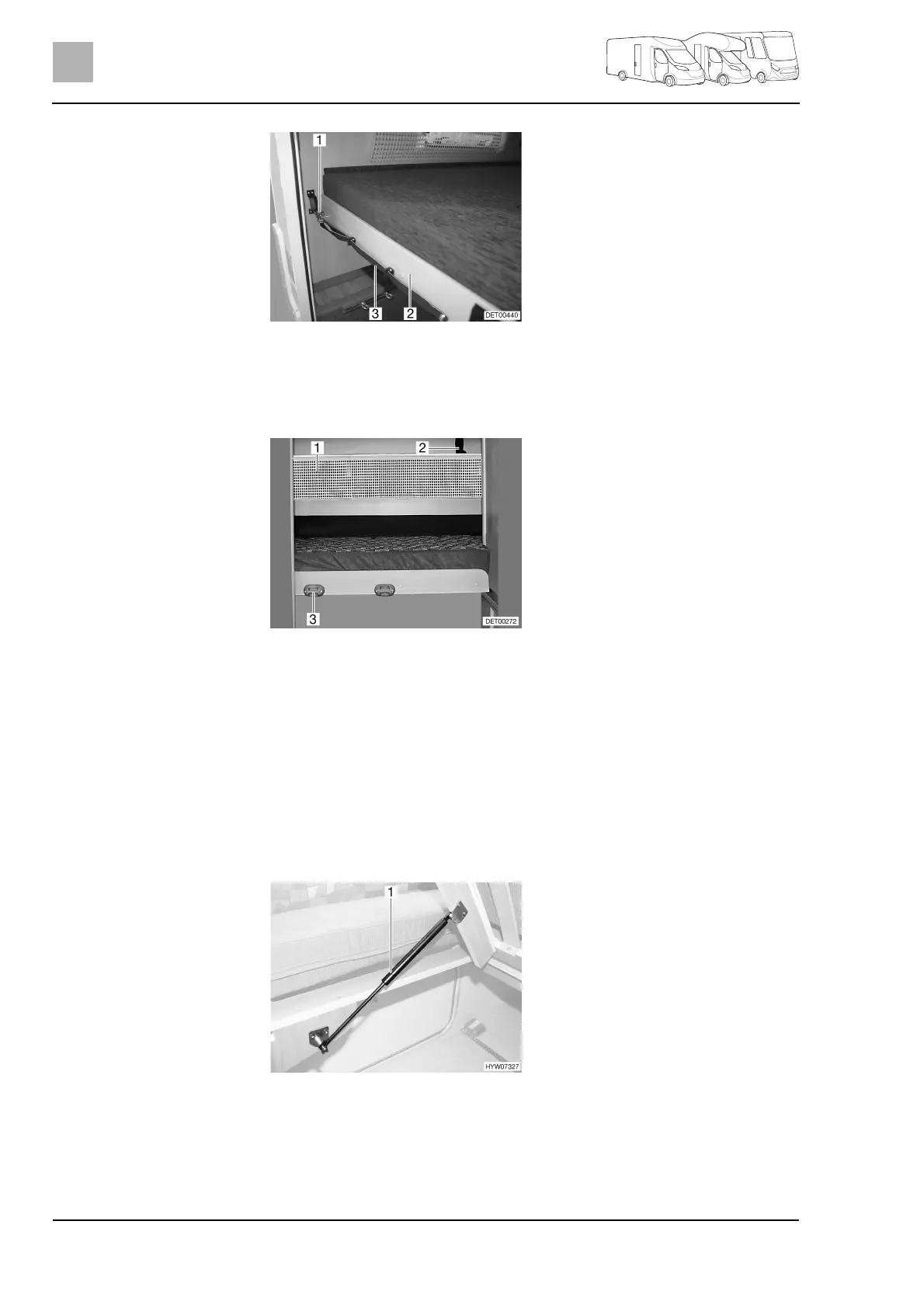

Fig. 52 Bunk bed (rear)
Fig. 53 Safety net
Fig. 54 Fixed bed
