Electrical system
9
Fuses on the living area
battery
The fuses are installed in the console of the right-hand seat in the driver's area.
Fuses next to the
transformer/rectifier
The fuses are installed in the console of the left-hand seat in the driver's area.
Fuse for the
Thetford toilet
The toilet has a maintenance-free fuse which resets automatically.

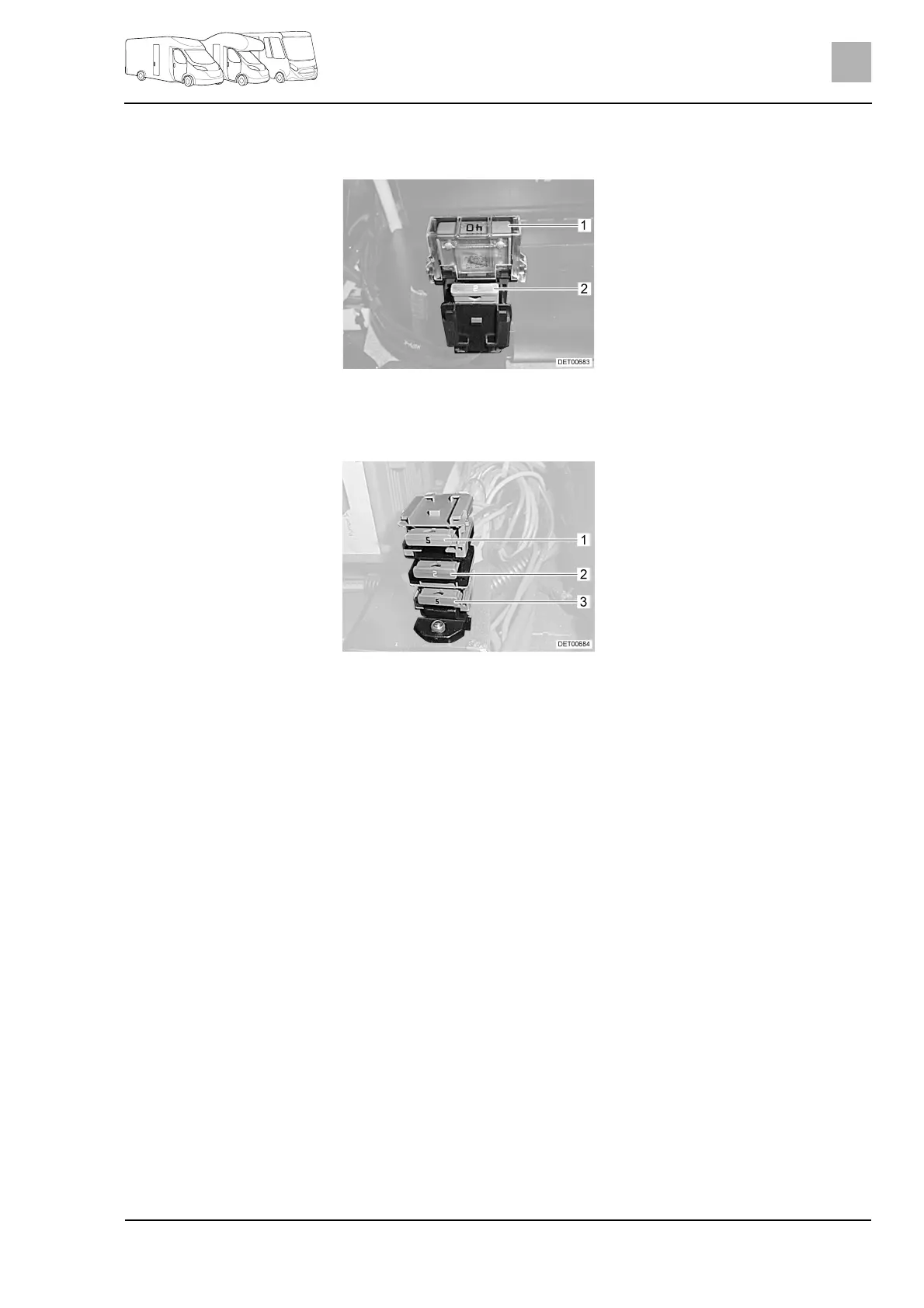

Fig. 74 Fuses on the living area battery
1 Jumbo flat fuse 40 A/orange
(Fuse protection for living area
battery)
2 Flat fuse 2 A/grey
(Control 12 V/control unit)
Fig. 75 Fuses next to the transformer/
rectifier
1 Flat fuse 5 A/beige
(Side marking lights)
2 Flat fuse 2 A/grey
(Control D+)
3 Flat fuse 5 A/beige
(Side marking lights)
