Fiat Ulysse - Front Light Cluster; If an Exterior Light Burns out

IN AN EMERGENCY
162
IF AN EXTERIOR
LIGHT BURNS OUT
Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
IMPORTANT See “If a bulb burns
out” for information on bulb types and
power when changing a bulb.

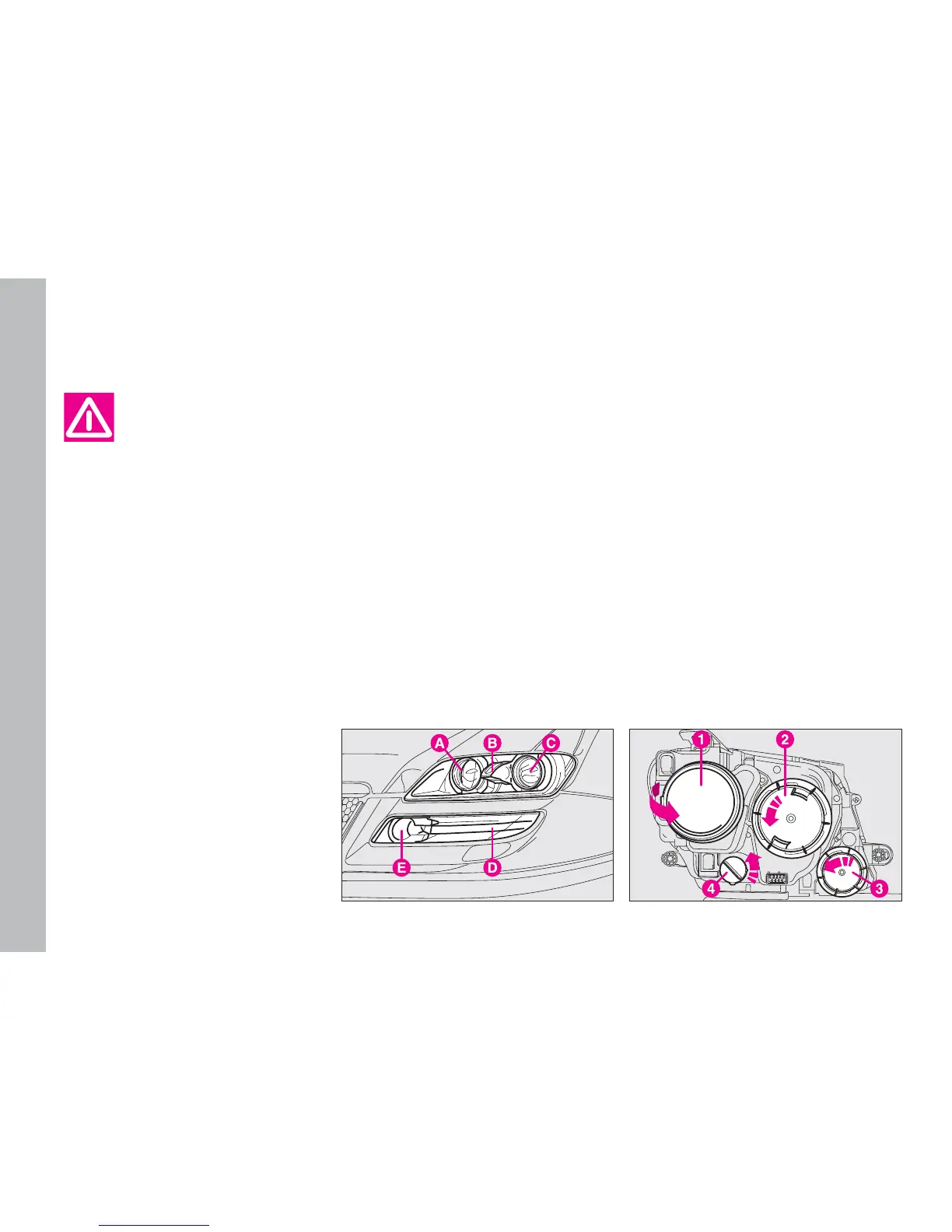

FRONT LIGHT CLUSTER
Front headlights include front side
lights, main beam headlights, dipped
beam headlights, direction indicators
and front fog lights fig. 13:
A - main beam headlights;
B - front side lights;
C - dipped beam headlights;
D - direction indicators;
E - front fog lights.
To replace a dipped beam headlight
remove the rubber cover 1-fig. 14 by
turning it anticlockwise.
To replace front side lights and main
beam headlights remove the cover 2
by turning it anticlockwise.
To replace front fog lights remove the
cover 3 by turning it anticlockwise.
To replace direction indicator bulbs
remove the bulb holder 4 by turning
it anticlockwise.
fig. 13
F0B0130b
fig. 14
F0B0131b
