CAR MAINTENANCE

191

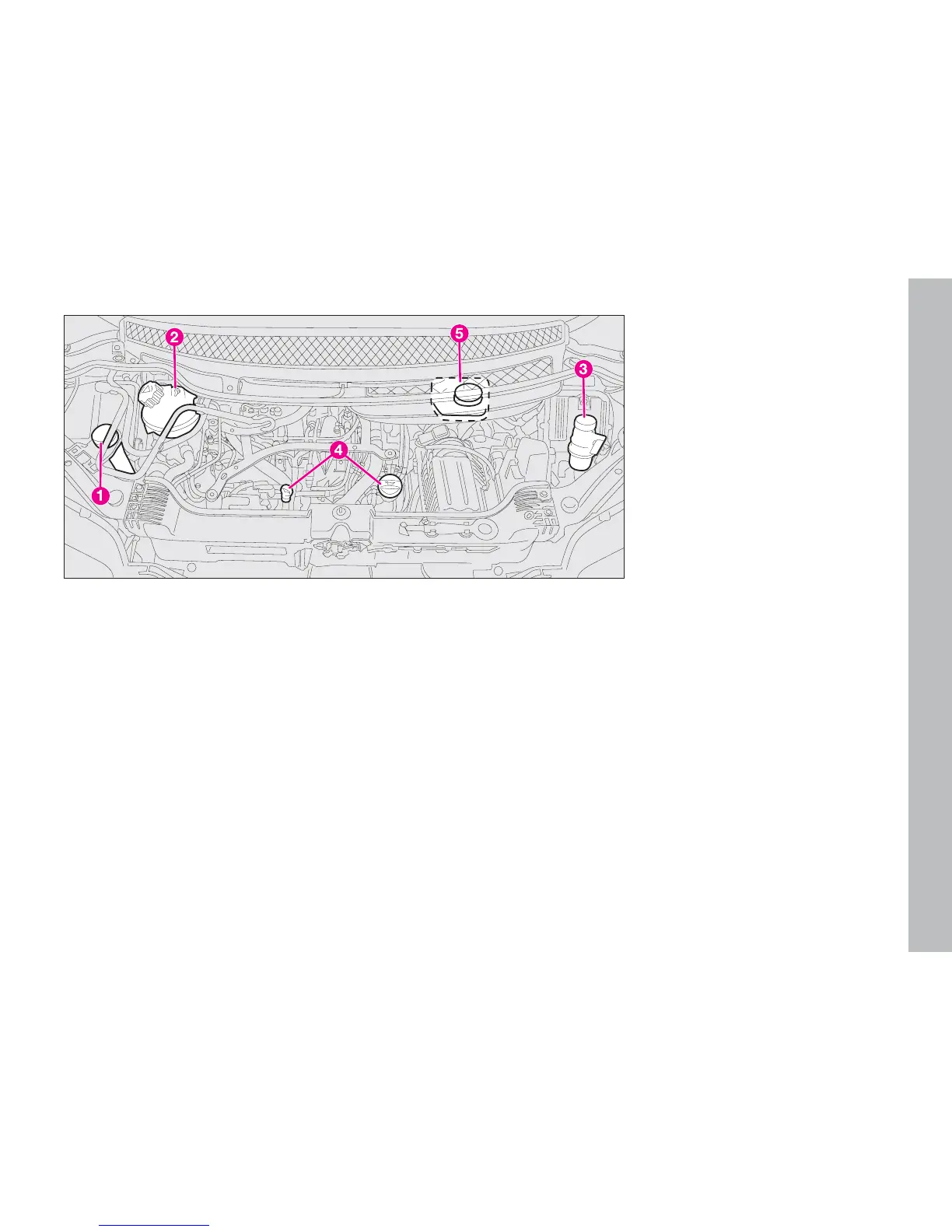

1. Windscreen/rear window and

headlight (for versions/markets, where

provided) washer fluid - 2. Engine

coolant - 3. Power steering fluid - 4.

Engine oil - 5. Brake and hydraulic

clutch fluid.

fig. 2 - Versions 2.2 JTD

F0B0600b
