1 Product Description
1 Product Description
1.1 Product Function
The AN5506-01-A is a desktop GPON ONU used for the
network connection of the FTTH equipment. It can provide data
and multicast access services to meet the broadband access
requirements families.

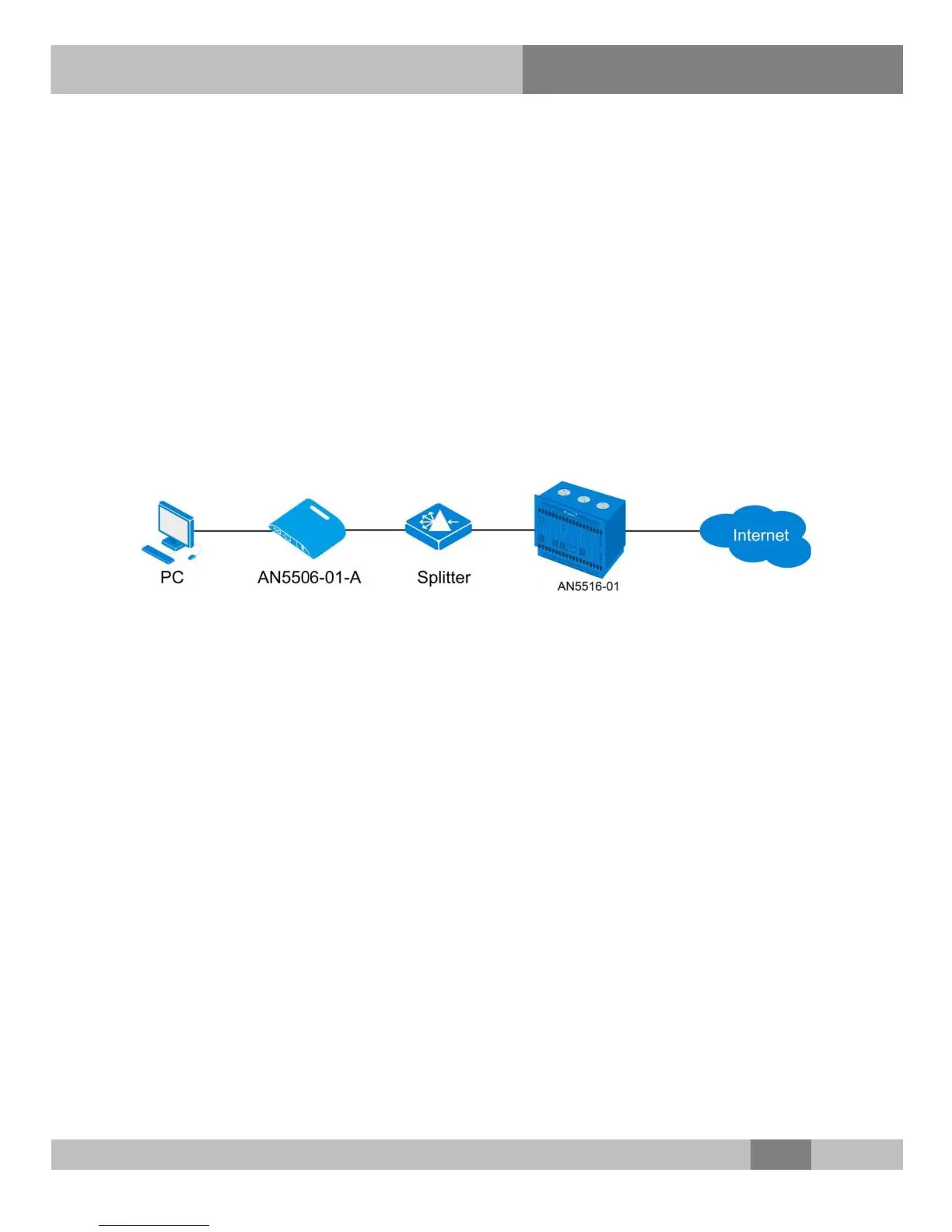

Below is the network diagram of the AN5506-01-A.
Figure 1-1 Network diagram of the AN5506-01-A
As shown in Figure 1-1, the AN5506-01-A is used together with
the AN5516-01 (OLT). They together make up a GPON system
that provides a large-capacity, high-reliability multi-service access
network.
The AN5506-01-A supports the following functions:
Uses GPON uplink that is compliant with ITU-T G.984 series
of standards;
Supports the configuration of Ethernet interface rates,
working modes, MDI / MDIX auto-negotiation mode and
PAUSE flow control;
Supports packet filtering and illegal message attack protection;
Provides performance statistics on all Ethernet lines;
