5 Wire and Cable
Note:
The terminal of the PDP protection earth ground cable at the PDP side
has been connected to the inner PE connector of the PDP before delivery.
Users need only connect the other end of the cable to the earth ground
point on the cabinet top.
Technical Specifications
Cable Model
Cable Type
Color
Maximum
Current
Cross-sectional Area of the
Conductor
3696239
Single-core soft
cable
Yellow- / green
40 A
10.5mm
2
408000007 10mm
2
408000018 2x6mm
2
5.3.2 Subrack Protection Earth Ground Cable
Function
The subrack protection earth ground cable is used to connect the subrack with the
protection earth ground terminal of the cabinet to provide ground protection for the
subrack.
Model
The model number of the AN5116-06B/AN5516-06/AN5516-04 subrack protection
earth ground cable is 3696084.
Structure
The subrack protection earth ground cable is shown in Figure 5-5. Both ends of the
cable are M6 pre-insulation terminals, and between them is a yellow- / green cable.

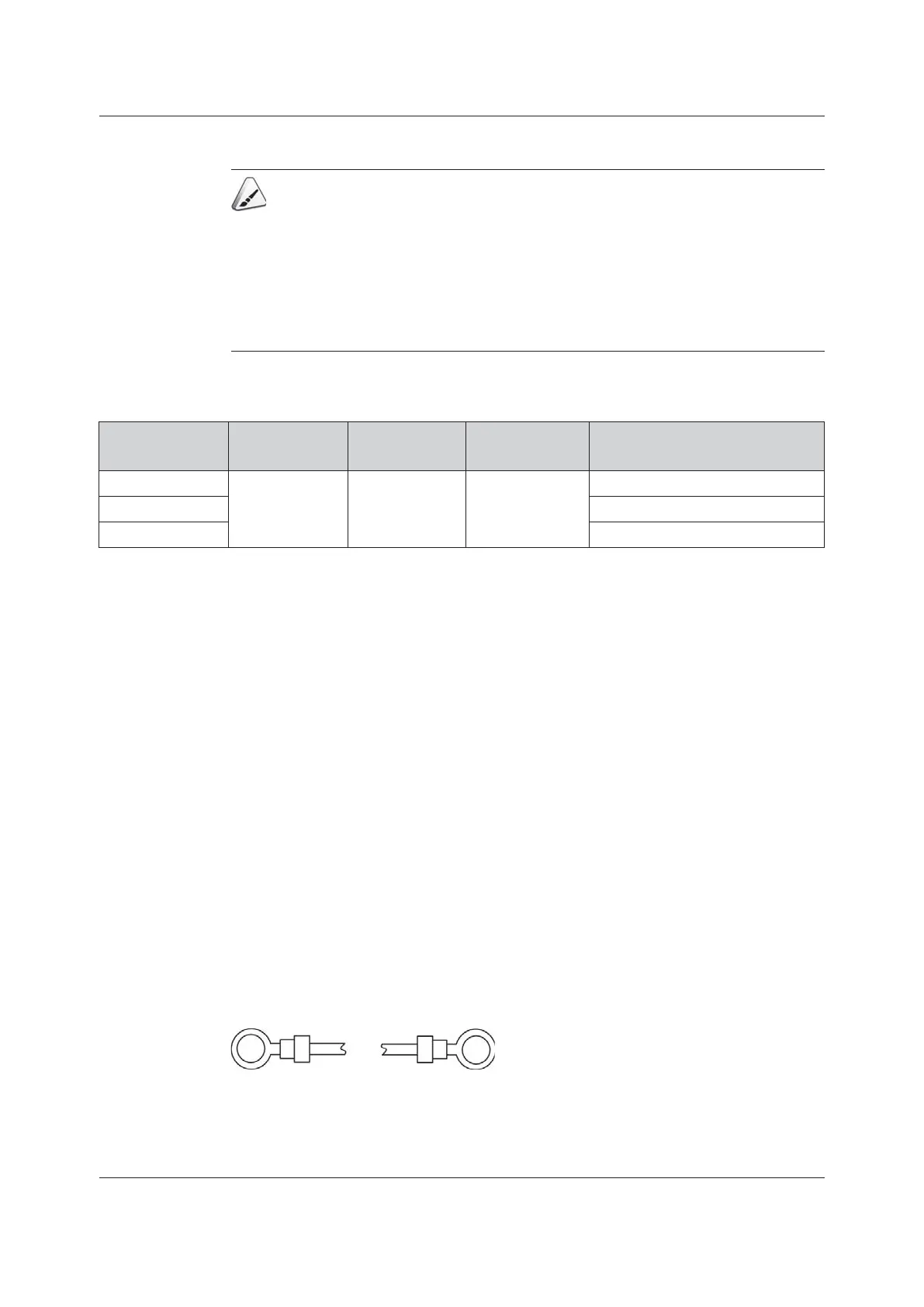

Figure 5-5 Subrack Protection Earth Ground Cable
Version: C 165
