3 Card
Item
Specification
GE optical module
1.25G-0.55km-TDM-SFP (1000BASE-SX)
1.25G-15km-TDM-SFP (1000BASE-LX)
1.25G-40km-TDM-SFP (1000BASE-EX)
1.25G-80km-TDM-SFP (1000BASE-ZX1)
Note 1: See GE / 10GE Module for the specifications of the modules.
Function
See Function Overview of the Uplink Card.
Working Principle

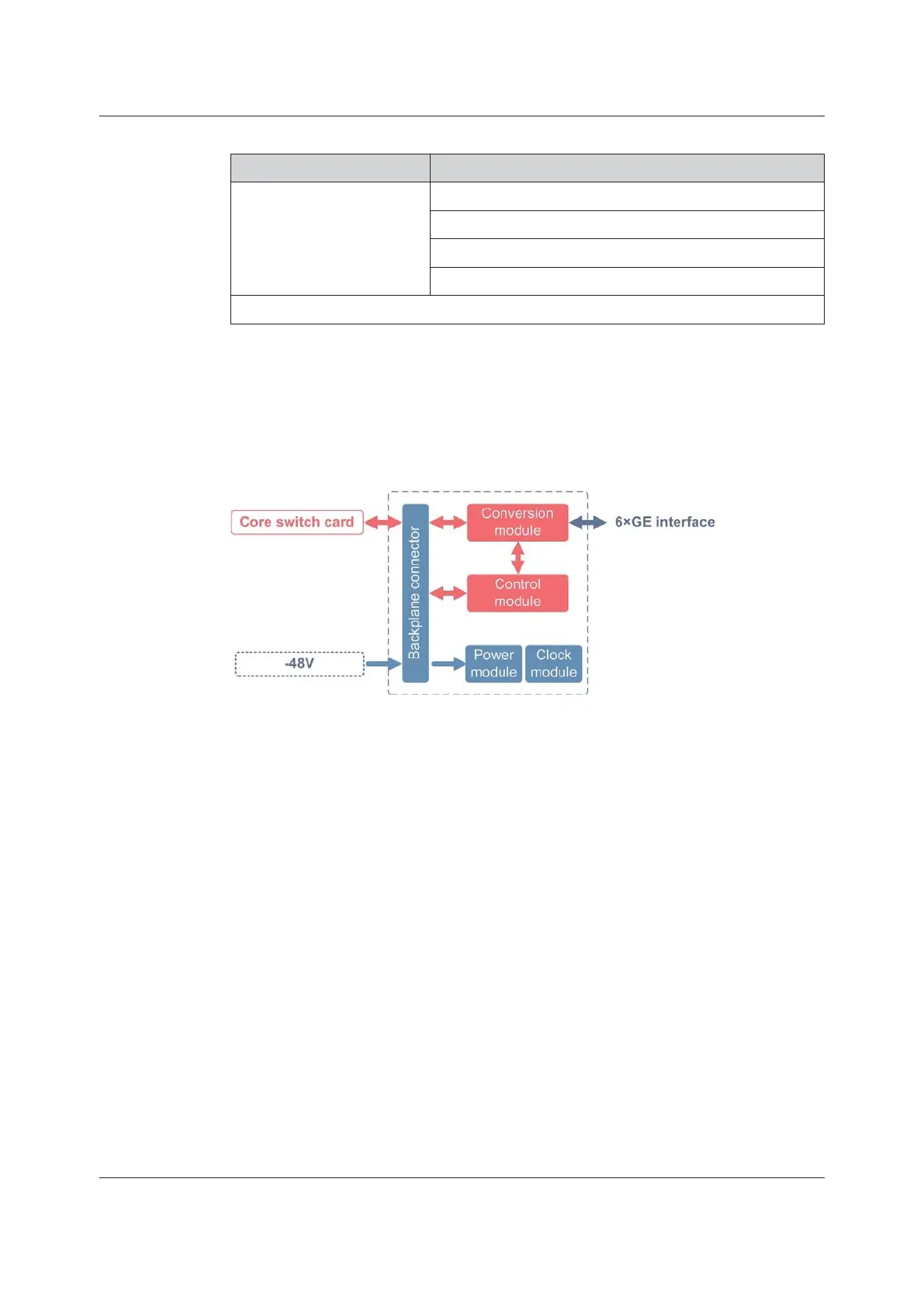

Figure 3-15 Working Principle of the GU6F Card
u The conversion module provides uplink interfaces and transmits data
transparently.
u The control module loads the card software, controls the card operation, and
manages the card.
u The power module supplies power to each functional module of the card.
u The clock module provides clock signals for each functional module of the card.
3.6 Power Card
The power cards induct the AC / DC power supply for the equipment. They are
applicable to the AN5516-06 and the AN5516-04.
