Fike EIV - Valve Parts; Figure 3 - Valve Parts

EXPLOSION ISOLATION VALVE
INSTALLATION & OPERATION MANUAL
January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 4
2.2 VALVE PARTS

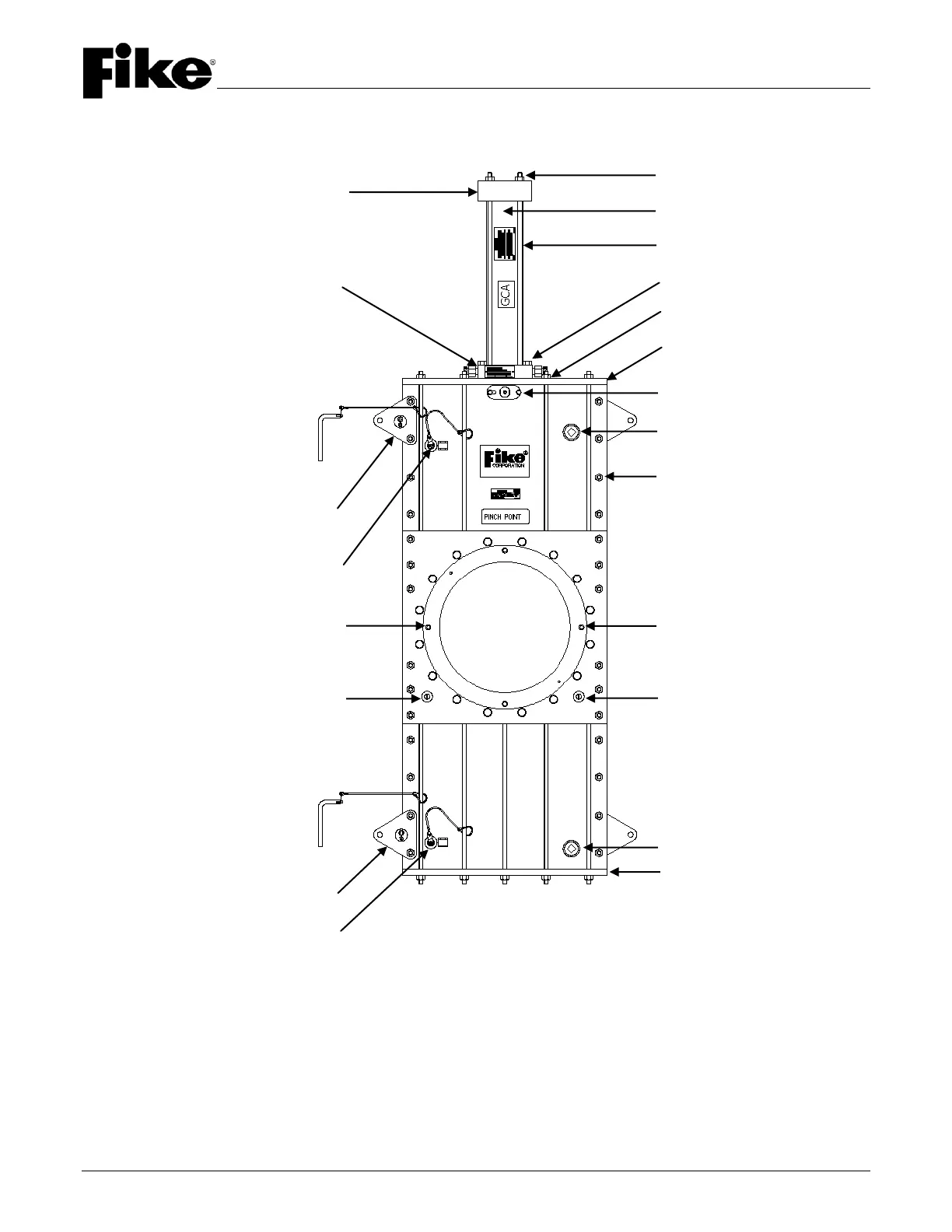

FIGURE 3 – VALVE PARTS
Actuating Cylinder Bolts
Housing Tie Rods & Nuts
Top Plate
Lock out Pin
Hole
Lower End Cap
Support / Lifting
Gusset
Gate Position Sensor Port
Lock out Pin
Hole
Actuating Cylinder Tie Rods & Nuts
Actuating Cylinder Tube
Actuating Cylinder Tie Rods
Roll Pin Access Plate
Gate Position Sensor Port
Housing Studs & Nuts
Flange Cap Screws
Flange Cap Screw
Bottom Plate
Ball Detent
Ball Detent
Upper End Cap
Support / Lifting
Gusset
