Fike EIV - Figure 12 - Gca; Series Wiring (20 - 24 Eiv)

EXPLOSION ISOLATION VALVE
INSTALLATION & OPERATION MANUAL
January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 15

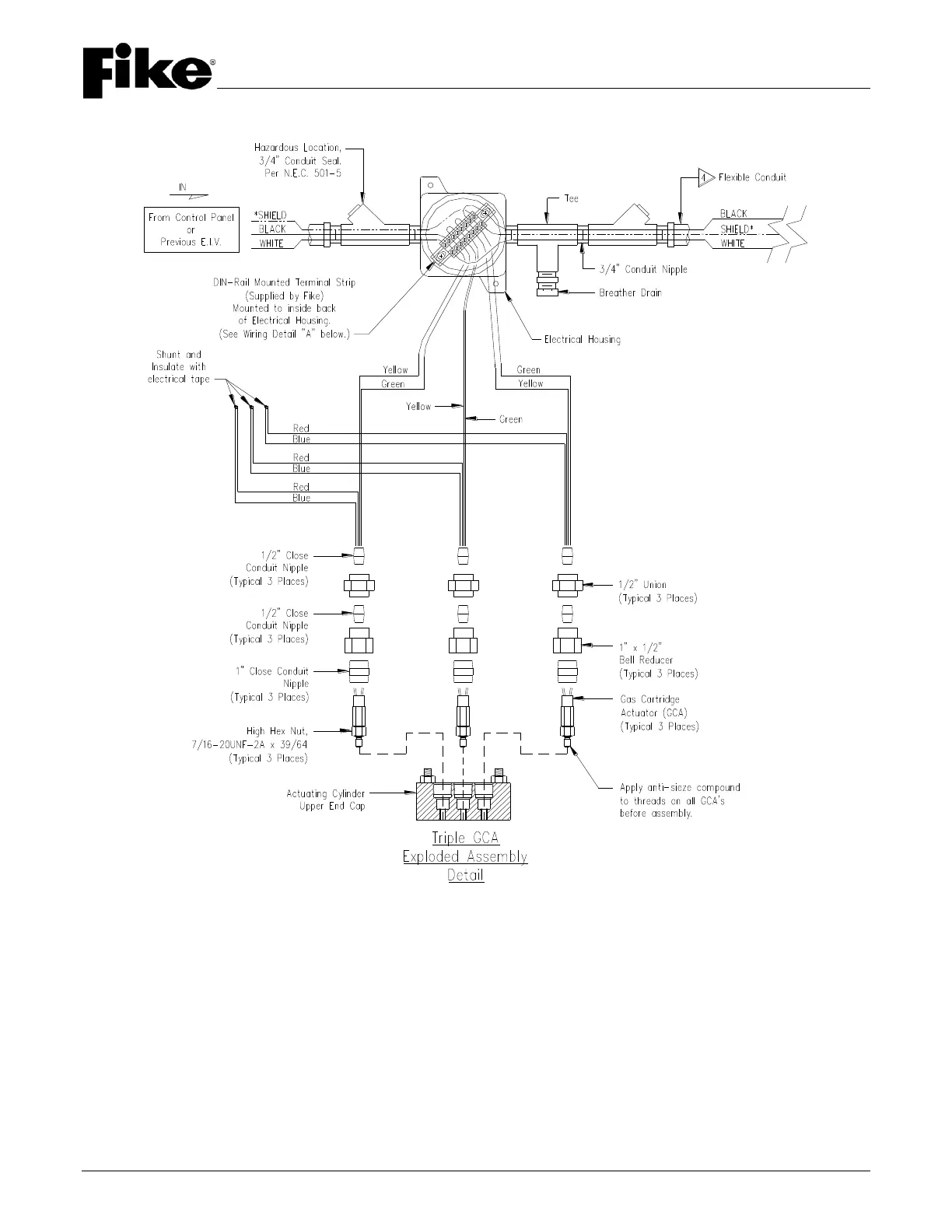

FIGURE 12 – GCA / SERIES WIRING (20" and 24" EIV)
