Fike EIV - Figure 8 - Eiv Specifications 2 - 10 Sizes

EXPLOSION ISOLATION VALVE
INSTALLATION & OPERATION MANUAL
January, 2015 Document P/N: E06-017-1 (Rev 2) Page: 11

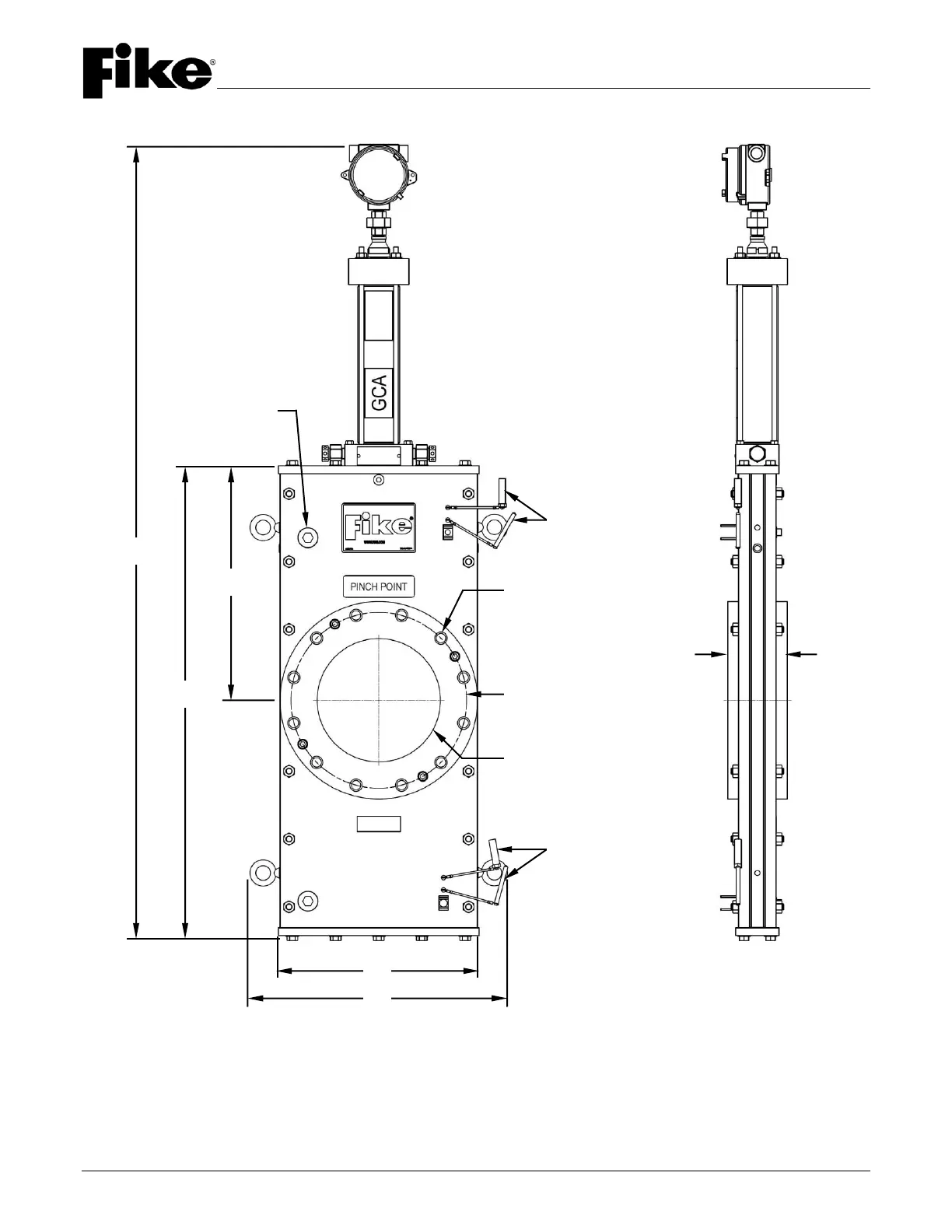

FIGURE 8 – EIV SPECIFICATIONS
2" – 10" SIZES
(Ref. Table 1)
T
C
B
A
GATE POSITION
SENSOR
LOCKOUT PIN
F (FLANGE BOLT)
BC (BOLT CIRCLE)
P (PROCESS DIAMETER)
LOCKOUT PIN
E
D
