10

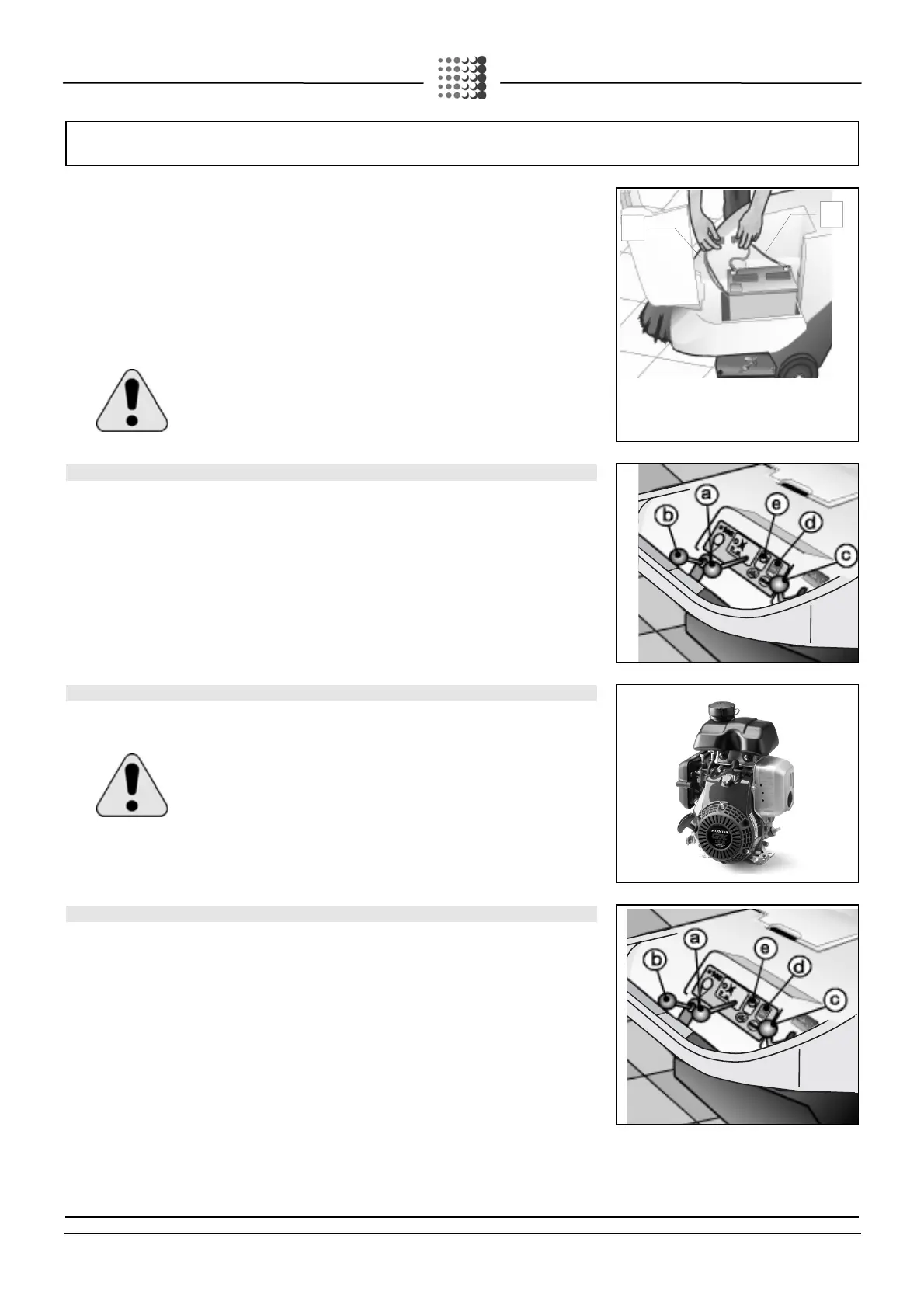

MACHINE PREPARATION
To connect the battery charger you must:
1. Make sure the main switch is in the “0” position
2. Move the machine near to the battery charger
3. Open the hood of the machine
4. Disconnect the battery connector (2) from the electric system (1).
5. Connect the battery charger cable connector
The coupling connector of the battery charger is consigned inside the bag containing this instruction
booklet, and must be assembled on the cables of the battery charger as indicated in the instructions.
ATTENTION: this process must be carried out by qualified personnel. An
incorrect connection of the connector may cause problems with machine
functioning.
8. BATTERY INDICATOR (FS50 B-BT VERSION)
On the instrument panel of the machine there is a monitor (E) indicating the battery charge status. If the
green light is on, the battery level is full. If the red light is on, the batteries are flat.
9. ENDOTHERMIC ENGINE CHECK (FS50 H-HT VERSION)
WARNING: For your own safety and to maximize the useful life of the
combustion engine, it is very important to take a few moments to read the
motor's user manual that came with the machine before turning the motor on
10. INSTRUMENT PANEL COMPONENTS(FS50 B-BT VERSION)
The instrument panel components are identified as follows:
1. Closure of suction/activation of electric filter shaker (optional for battery version) (a): determines the
closure of the fan's suction duct@ through the movement of a hatch, which on contact with the stop
activates the electric filter shaker.
2. Filter shaker/blocking lever (b): manual control to shake the dust from the filter and to lock its
supporting bracket during maintenance.
3. Side brush lever (c): pulling the lever toward you determines the lifting of the side brush. To lower it,
simply release the lever by pushing it upward
4. main switch of the machine (d)
5. Battery level indicator (e)
