MACHINE PREPARATION

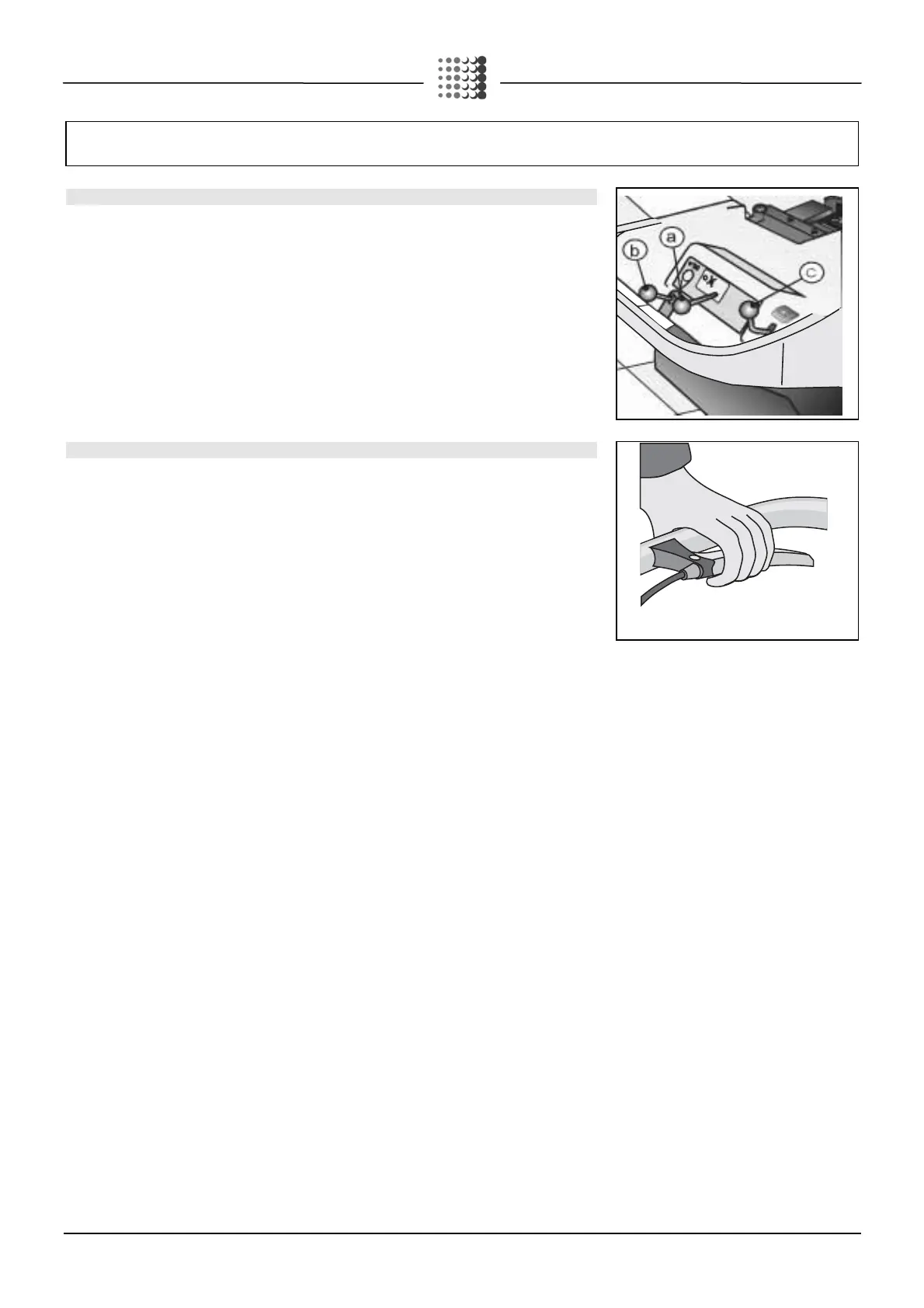

11. INSTRUMENT PANEL COMPONENTS(FS50 H-HT VERSION)
The instrument panel components are identified as follows:
1. Suction tube closure (a): determines the closure of the fan's suction duct through the movement of a
hatch, which on contact with the stop activates the electric filter shaker.
2. Filter shaker/blocking lever (b): manual control to shake the dust from the filter and to lock its
supporting bracket during maintenance.
3. Side brush lever (c): pulling the lever toward you determines the lifting of the side brush. To lower it,
simply release the lever by pushing it upward
12. FORWARD MOVEMENT (FS50 BT-HT VERSIONS)
To advance the machine, versions FS50 BT and FS50 HT, simply activate the lever on the control
handlebar.
To advance the machine, versions FS50 B and FS50 H, simply push it forward.
