Fimap FS50 B-BT - Daily Maintenance; Filter Cleaning (Version with Fixing Tab); Filter Cleaning (Version with Fixing Bracket)

15

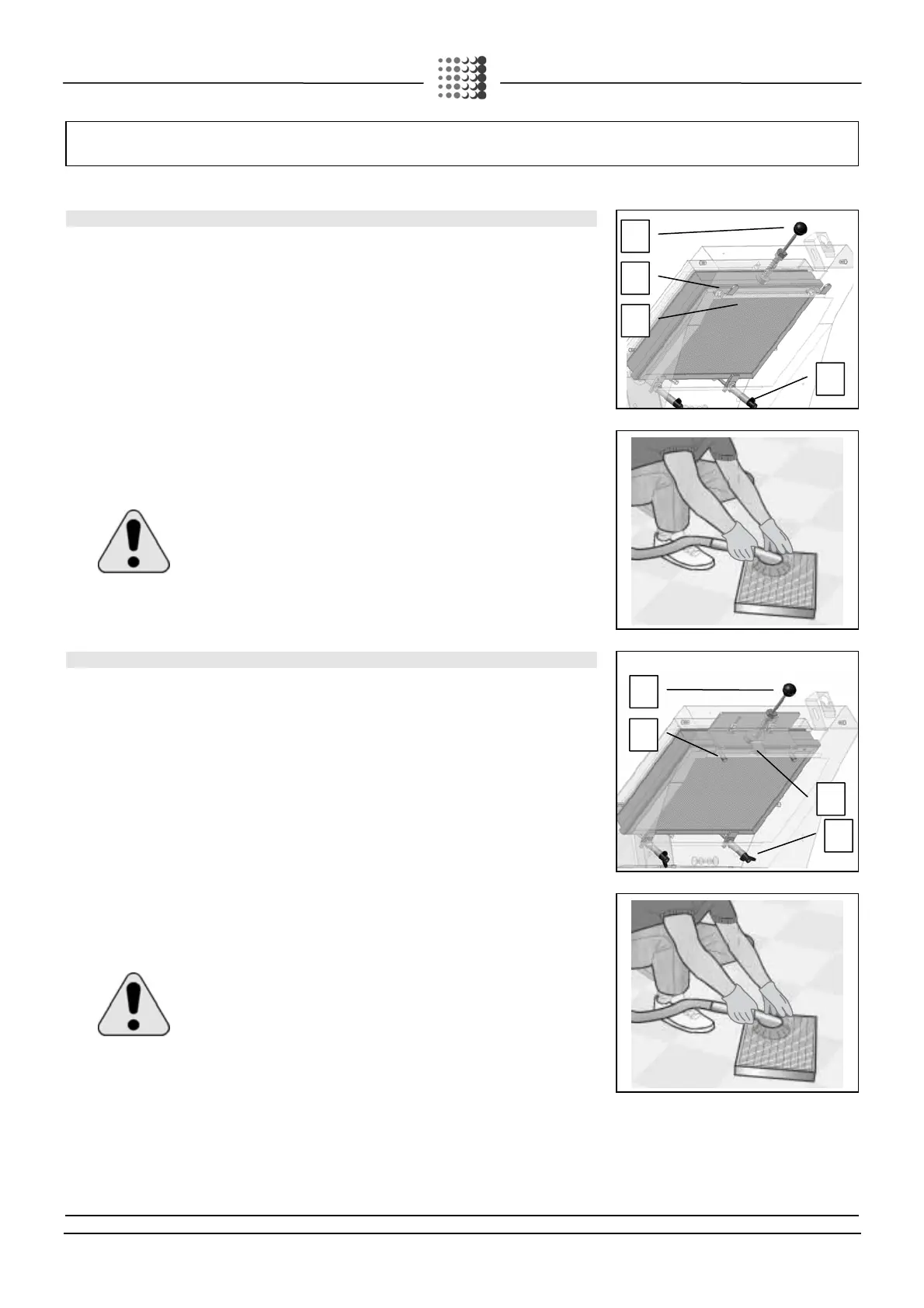

DAILY MAINTENANCE
PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE
1. FILTER CLEANING (VERSION WITH FIXING TAB)
Proceed as follows to clean the suction filter:
1. switch off the machine
2. Remove the debris hopper
3. Lift the filter shaker (a) and lock it in the raised position with the special pin supplied with the
machine.
4. Loosen the lower knobs (b).
5. Unscrew the wing nuts (c).
6. Take out the filter panel (d).
7. Clean the filter using a vacuum cleaner or manually shaking the filter in the absence of a vacuum
cleaner.
8. reassemble everything, carrying out the above-mentioned operations in the reverse order.
ATTENTION: These operations must be carried out using gloves to protect the
hands.
2. FILTER CLEANING (VERSION WITH FIXING BRACKET)
Proceed as follows to clean the suction filter:
1. switch off the machine
2. Remove the debris hopper
3. Lift the filter shaker (a) and lock it in the raised position with the special pin supplied with the
machine
4. Loosen the lower knobs (b)
5. Loosen the upper registers (c) with the help of a coin
6. Raise the fixing bracket and block it by rotating the filter shaker
7. Take out the filter panel (d)
8. Clean the filter using a vacuum cleaner or manually shaking the filter in the absence of a vacuum
cleaner
9. Reassemble everything in reverse order to the previous operations
ATTENTION: These operations must be carried out using gloves to protect the
hands.
b
c
a
d
b
c
a
d
