Fimer TM320W - Wire Liner Replacement; Liner Removal and Installation

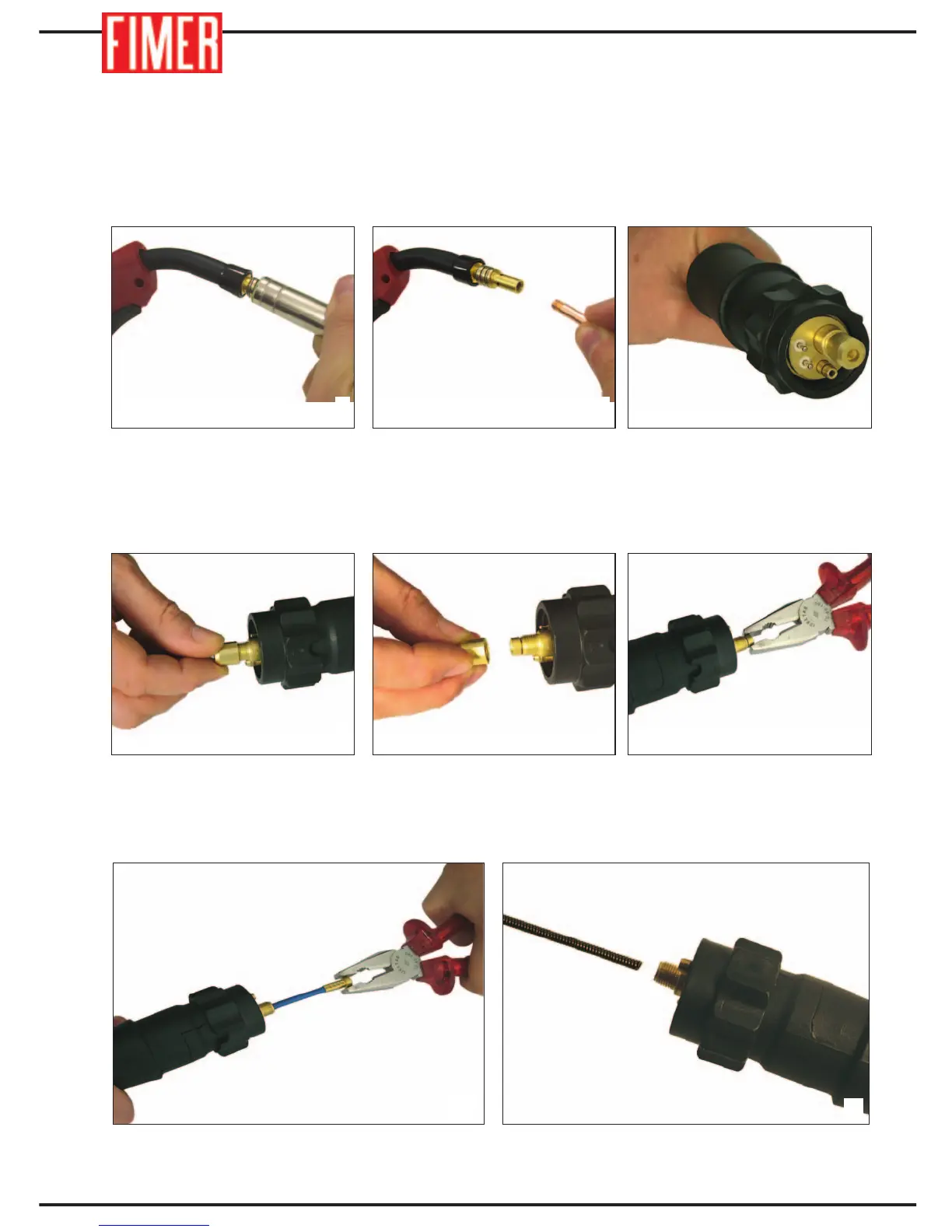

• Gun side: remove the gas nozzle (A)
• Unscrew the wire liner tip and the gas diffuser (B)
• Connector side (C): grab the end of wire liner using a plier and start to extract the wire liner
• Complete the extraction of the wire liner (G)
A
B
C
D
E
F
• Insert the new wire liner and push up to end (H)
• Now rescrew the diffusor on the gun (B)
G
H
14. WIRE LINER REPLACEMENT
