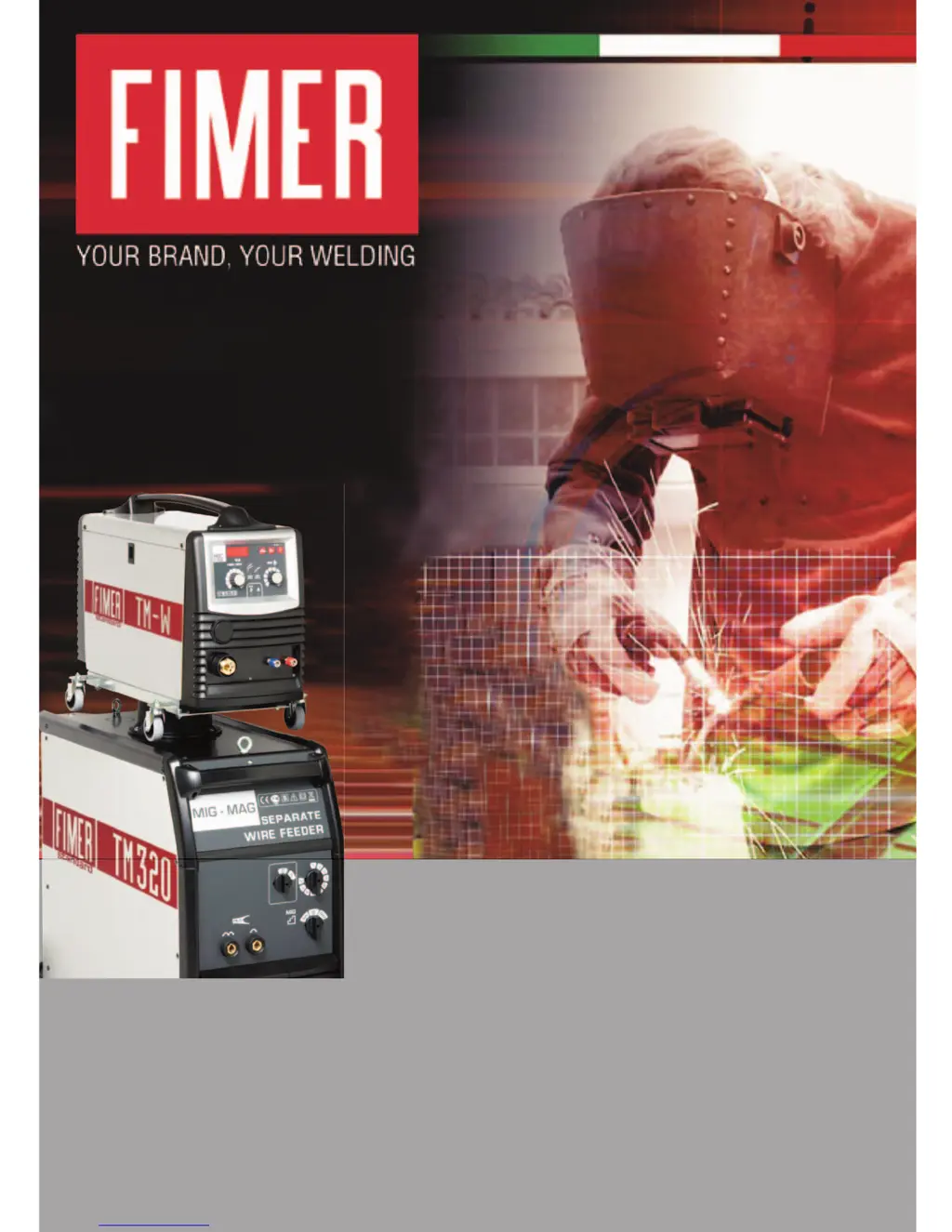

TM 230 - TM 260 - TM 300 - TM 350 - TM 320W
TM 360W - TM 420W - TM 500W - TM 650W
Instruction Manual

Questions and Answers

  • T
    thompsonbrandonAug 17, 2025
    What to do if my Fimer Welding System cuts out after prolonged use?
    • E
      ewardAug 17, 2025
      If the welder cuts out after prolonged use, it might have overheated, activating the thermal protection device. Allow the unit to cool down for at least 1-20 minutes.
  • A
    Amanda MartinAug 20, 2025
    Why are my welds porous with Fimer Welding System?
    • D
      Donald CollinsAug 20, 2025
      Porous welds can occur due to several reasons: * A build-up in the gas nozzle causing a lack of shielding gas, clean away build-up. * Incorrect torch angle. The air gap between the torch and the workpiece must be 5-10 mm. Ensure 60° torch angle. * Gas shortage, increase gas flow. * Damp workpieces, dry workpieces with hot-air gun or suchlike. * Welding Arc too long, shorten the arc.
  • J
    jonathanrobinsonAug 22, 2025
    What to do if arc cut-out occurs with Fimer TM260 Welding System?
    • J
      Joanne CopelandAug 23, 2025
      Arc cut-out can be caused by: * Loose earth clamp grip, tighten clamp grip. * Short circuit between contact nozzle and gas hose, clean or replace contact nozzle and wire-feed nozzle.
  • E
    Ethan WelchAug 26, 2025
    How to reduce excessive splashes from Fimer TM260 Welding System?
    • K
      Krista MooreAug 26, 2025
      Excessive splashes can be due to: * Current being too high, decrease the current value. * Non-optimized inductance value, increase the inductance value. * Torch being too inclined, straighten the torch.
  • J
    Joyce CookAug 28, 2025
    How to fix jerky wire feed on Fimer Welding System?
    • E
      Edward ReynoldsAug 28, 2025
      Jerky or intermittent wire-feed can be caused by: * Faulty gas nozzle, replace it. * Scorched gas nozzle, replace it. * Dirt in wire-feeder roller groove, clean it. * Worn wire-feeder roller groove, replace it.
  • P
    Paul CarterAug 31, 2025
    How to improve penetration with Fimer TM260?
    • M
      Michael LopezAug 31, 2025
      Insufficient penetration can happen if: * The current is too low, increase the current. * There is inconstant wire feeding, see the above paragraph. * Edges are too apart from each other. * Bevel is too small.
  • E
    ellisalejandroSep 2, 2025
    How to prevent hot cracks when welding with Fimer TM260 Welding System?
    • D
      dclarkeSep 3, 2025
      Hot cracks can be caused by: * Damp workpieces, clean them. * Welding with very high heat supply, decrease the welding current. * Impure welding wire, change the welding wire. * Base material with high content of carbon, sulphur and other impurities.
  • R
    Randy YoungSep 5, 2025
    What to do if the wire does not feed on my Fimer TM260 Welding System?
    • C
      carlsonjamesSep 5, 2025
      If the wire does not feed when the wire-feeder roller rotates, check for: * Dirt on the tip of the wire-feeder, blow with compressed air, replace nozzle. * Excessive spool torque, loosen it. * Faulty torch, check wire-feeder liner.
  • C
    Christopher JordanSep 8, 2025
    How to resolve insufficient melting with Fimer TM260 Welding System?
    • D
      Denise HallSep 8, 2025
      Insufficient melting can occur due to: * Abrupt movements of the torch, move the torch smoothly. * Non-optimized inductance value, change the inductance value. * Oxidized workpieces, clean them.
  • S
    Sean SmithSep 12, 2025
    What causes breakages when using Fimer Welding System?
    • R
      richard66Sep 12, 2025
      Breakages can be caused by: * Unsuitable wire, change the type of wire. * Bad quality of the workpieces.

Summary

Safety Warnings and Symbols

Hazard Identification Symbols

Identifies hazard symbols (danger, caution) and their meanings for safe operation.

General Safety Precautions

Outlines general safety rules, user responsibility, and manual importance.

Specific Hazard Warnings

Warns about risks from electricity, fire, welding arcs, fumes, gases, and high voltage.

Operational and Environmental Safety

Power, Earthing, and Installation Safety

Covers power supply, earthing, relocation, and environmental installation requirements.

Maintenance, Repair, and Personnel Safety

Details safe maintenance, repair, component handling, and personal protective measures.

Work Area, Fire, and Gas Safety

Addresses fire prevention, work area conditions, fumes, gases, and confined spaces.

Gas, Electrical, and EMC Safety

Gas Cylinder and Regulator Safety

Provides guidelines for safe handling and use of gas cylinders and regulators.

Electrical Safety and EMC Guidelines

Focuses on electrical safety, cable care, maintenance precautions, and electromagnetic compatibility.

MIG Welding Operation

MIG Welding Process Overview

Explains the MIG welding technique, components, and parameters.

Power Supply and Output Connections

Details requirements for connecting the power supply and output cables.

Machine Unit Description

Front Panel Controls and Indicators

Identifies and explains the controls and indicators on the front panel.

Control Functions Explained

Welding Parameter Controls

Explains settings for timer, voltage/current, modes, burn back, soft start, and wire speed.

Switching and Grounding Options

Details current range selection switches and ground connector types.

Side View Components and Connections

Cooling System and Torch Connections

Describes cooling system interfaces and the torch quick connector.

Input, Gas, and Wire Feed Components

Identifies input cable, gas pipe connector, wire spool, and feed unit components.

Welding Wire Installation

Torch Preparation and Wire Spooling

Guides on preparing the torch and installing a new wire spool.

Wire Feed Unit Adjustment

Details adjusting the wire feed unit for proper wire tension and flow.

Trolley and Base Connectivity

Wire Feed Rollers and Cable Connections

Covers wire roller selection and connecting the separate trolley to the base.

Gas Cylinder and Welding Preparation

Gas Cylinder and Regulator Setup

Instructions for connecting and preparing the gas cylinder and regulator.

MIG Torch Maintenance and Pre-Welding Checks

Covers torch inspection and essential checks before starting welding.

Welding Process and Optimization

Current Selection for Welding

Table and explanation for selecting welding current based on material.

Achieving Best Welding Results

Tips on torch angle, movement, environment, and wire speed adjustment.

Troubleshooting Common Issues

Troubleshooting Welding Problems

Lists common defects and their causes and solutions.

Wire Liner Replacement Procedure

Wire Liner Replacement Steps

Step-by-step guide for replacing the wire liner in the welding torch.

Water Cooling System Installation

Back Panel Access and Connector Removal

Instructions for accessing the rear of the unit and removing connectors.

Water Cooling System Installation

Control Unit Mounting and Connection

Details positioning and connecting the cooling system control unit.

Water Cooling System Installation

Cord Routing and Unit Positioning

Guides on routing power cords and positioning unit components safely.

Water Cooling System Installation

Final Assembly and Cable Management

Covers replacing parts, filling liquid, and managing cables.

Water Cooling System Installation

System Activation and Final Checks

Steps for powering on the unit, control unit, and performing final checks.

Spare Parts List

Key Unit Components

Lists main internal components and electrical parts available as spares.

Block Diagram TM230-TM260

Electrical Component Schematic

Shows the electrical schematic and component layout for TM230/TM260 models.

Block Diagram TM300

Electrical Component Schematic

Shows the electrical schematic and component layout for the TM300 model.

Block Diagrams TM350;TM320 W;TM360 W

Electrical Component Schematics

Displays electrical schematics for TM350, TM320W, and TM360W models.

Block Diagrams TM420;TM500 W;TM650 W

Electrical Component Schematics

Presents electrical schematics for TM420W, TM500W, and TM650W models.

Environmental Disposal Information

WEEE Directive and Waste Management

Explains compliance with WEEE directive for proper disposal of electrical equipment.

Fimer TM260 Specifications

General IconGeneral
BrandFimer
ModelTM260
CategoryWelding System
