FIMI X8 Pro - Visual and Infrared Sensing System

16
The FIMI X8 Pro is equipped with front, rear, and bottom binocular vision systems
aswell as a bottom infrared sensing system, providing the drone with
environmental perception and positioning capabilities. The front, rear, and
bottom binocular vision systems are located at the front, rear, and bottom of
the drone, respectively, and each consists of two cameras. The visual systems
use image ranging to perceive environmental obstacles. The bottom infrared
sensing system consists of an infrared sensor module (transmitter and receiver).
The infrared sensor provides the drone with a reference for ground height,
working in conjunction with the downward visual systemto calculate the drone's
position information.
Calibration:
The automatic calibration of the visual system is already completed during
the factory assembly, and it can function properly. During the flight, if the
system detects any abnormalities in the calibration parameters, the drone
will attempt to perform an automatic calibration. At this time, the FIMI Navi 3.0
App will display relevant prompts. No manual intervention is required from the
user during the automatic calibration process, and normal operation is sufficient.
If the automatic calibration fails, it will prompt for advanced calibration.
Sensing range
Forward: Precision Measurement Range: 0.5-14m
FOV: 63° horizontally, 49° vertically
Backward: Precision Measurement Range: 0.6-12m
FOV: 63° horizontally, 49° vertically
Downward: Precision Measurement Range: 0.3-6m
FOV: 65° front to back, 49° left to right
Precise hovering range: 0.5-8 m

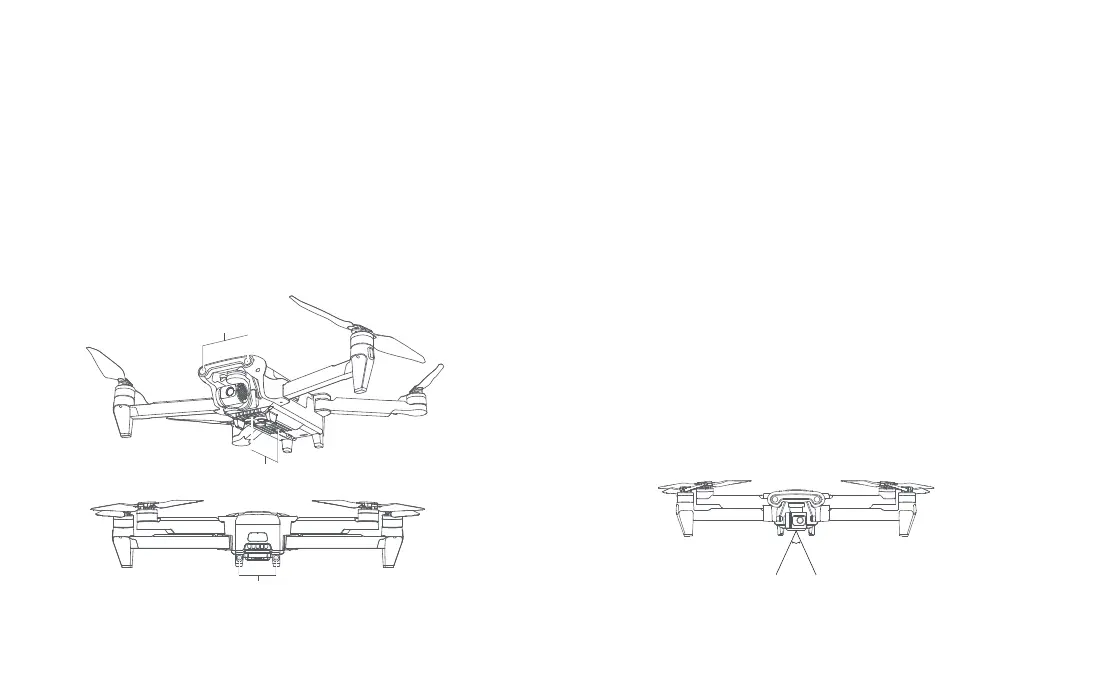

Visual System and Infrared Sensing System
Forward
Downward
Backward
49°
