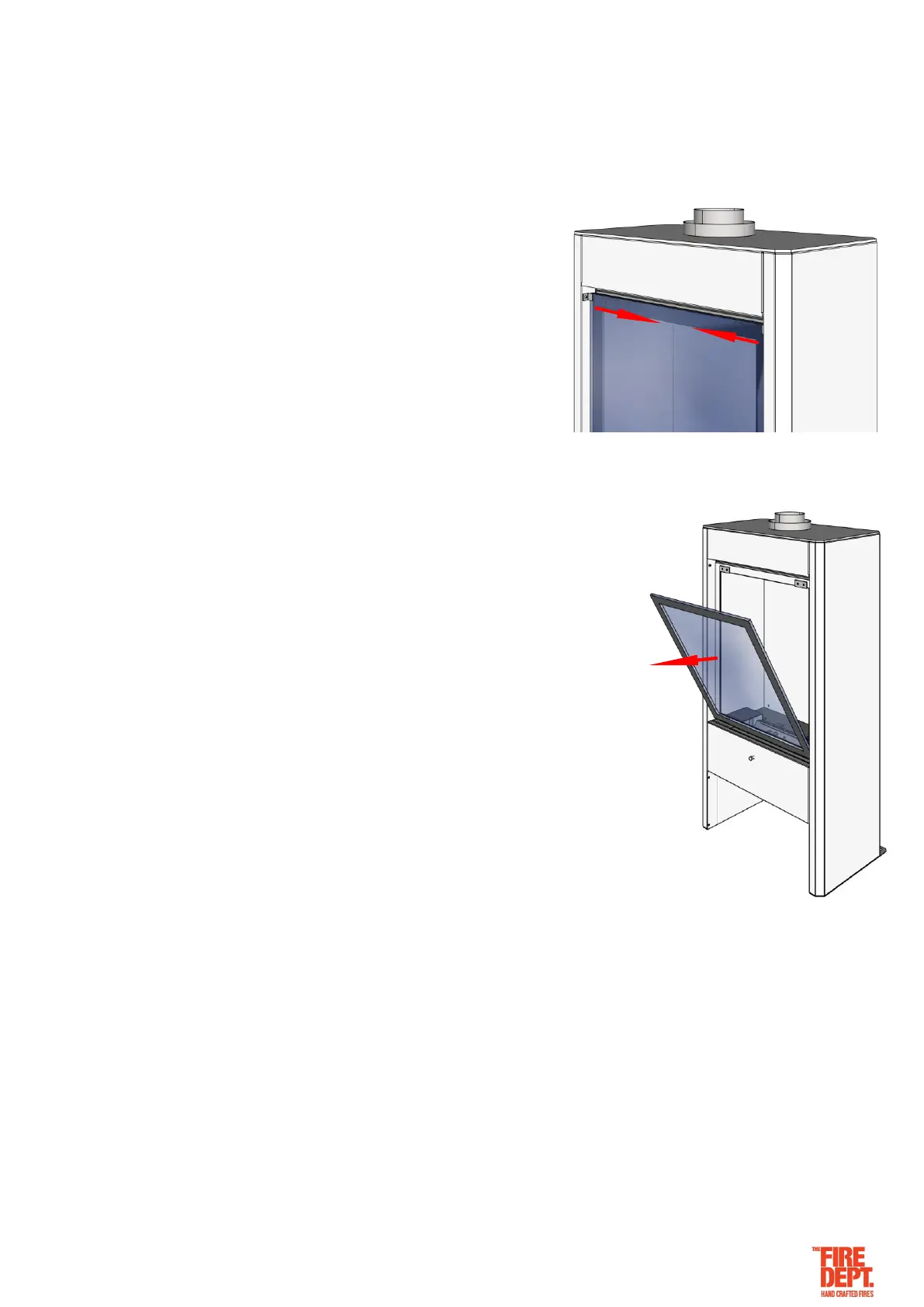

Glass Removal Process
• Carefully remove glass, which is held in place by retaining clips at the top sides of the glass and powerful
magnets in each lower corner.
• Remove the top retaining clips by undoing the 4mm Allen head
cap screws.
• Gently pull at the top corners in a forward motion. The glass will tilt
forward.
• In one movement gently pull the glass up and away from the fire to break
the magnetic connection. Take care that the glass doesn't fall completely
off once it’s free from the fixing magnets.
• Lift glass away from appliance and lay flat in a safe place with insulating
material facing down to protect glass.
