Installation Backbox Mounting
18 MS-2/MS-4 PN 51512:D 10/18/04
When batteries larger than 7 Amp Hour, up to 18 Amp Hour, are being used, the
BB-17F battery box (or UL listed equivalent) must be installed. To install the BB-17F:
1. Mount the FACP cabinet to the wall
2. Remove knockouts on the bottom of the FACP cabinet and top of the BB-17F
3. Using conduit, hang the BB-17F from the FACP cabinet making sure there is at
least ½” of clearance between the two cabinets
4. Anchor the BB-17F to the wall
Door = 14.677 “ (37.28 cm)
Door = 15.342“ (38.97 cm)
Battery Box = 8.5“ (21.59 cm)
Depth = 4.75
(12.065 cm)
Battery Box = 14.5“
(37.384 cm)
Depth = 3.050“
(7.75 cm)
Top
Bottom
Depth = 2.875" (7.3 cm)

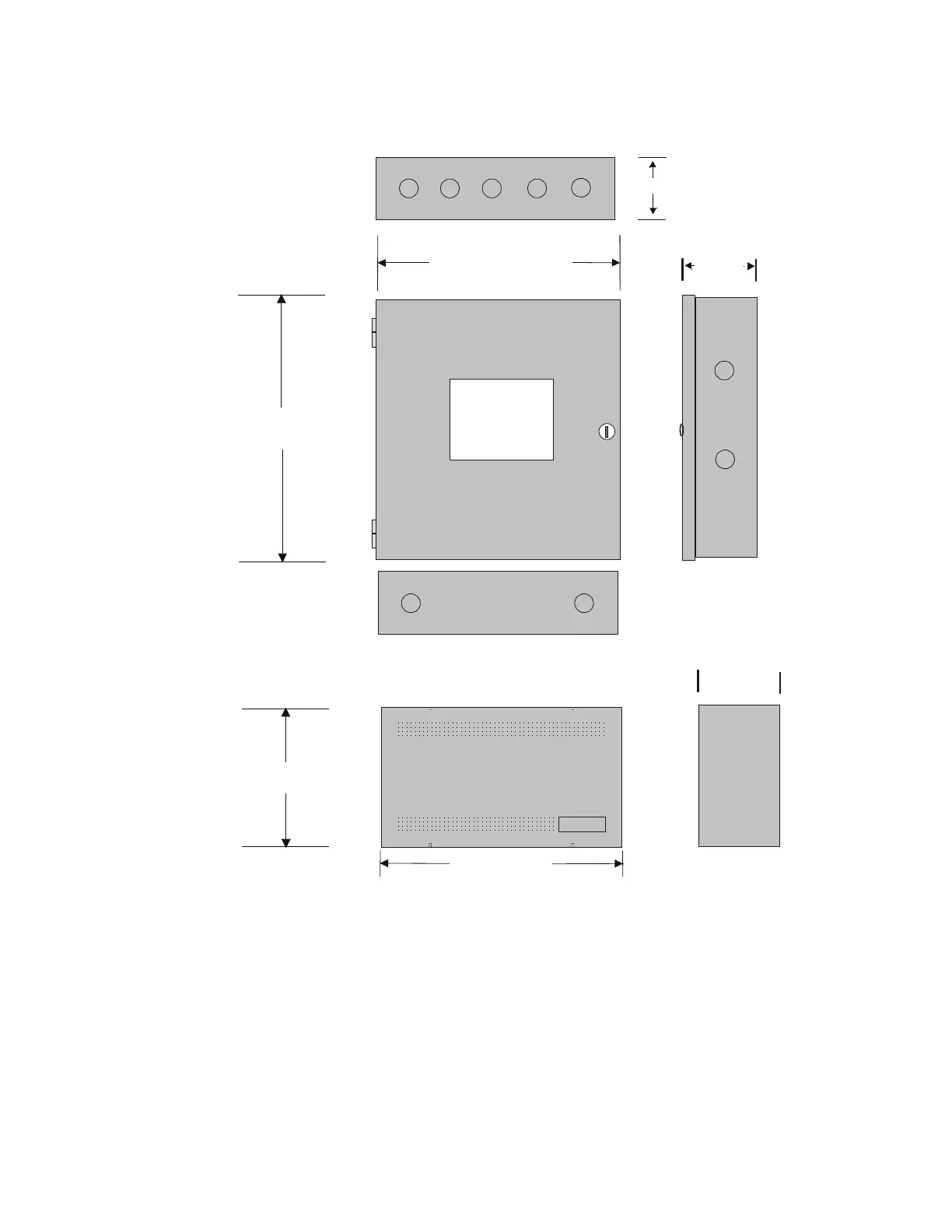

Figure 2.2 Backbox and Battery Box
ms-4cabb.cdr
