Fire-Lite MS-2E' MS-4E - 4 XLMF LED Interface Module (MS-4 Only)

Installation Installation of Optional Modules
30 MS-2/MS-4 PN 51512:D 10/18/04
2.6.2.3 4XLMF LED Interface Module (MS-4 only)
The 4XLMF supports the RZA-4XF Remote Annunciator module. The wiring of this
module must follow the requirements as specified in "Power-limited Wiring
Requirements" on page 24.
Important: The 4XLMF module can only
be installed on connectors J3 and J5 of the
MS-4 main circuit board.
4XLB

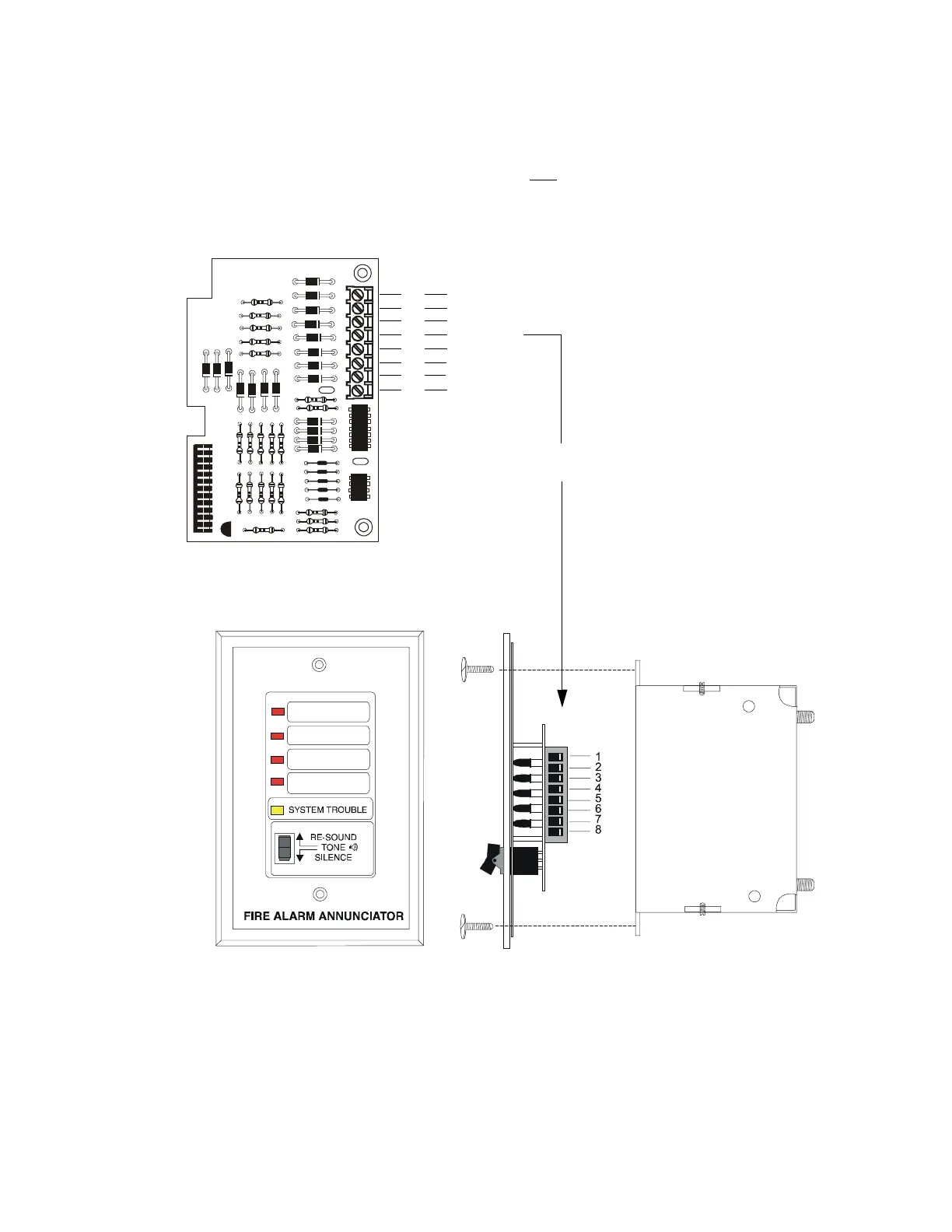

Figure 2.15 4XLMF LED Interface Module
Front View of RZA-4XF
Side View
Single-gang Box
4XLMF Module
Note: Make wiring connections with
system power off. Maximum
wire impedance is 50 ohms per
wiring connection.
+24 VDC
Out #1
Out #2
Out #3
Out #4
System Trouble
Sound
Resound
1
2
3
4
5
6
7
8
Connect to corresponding terminals
of RZA-4XF Remote Annunciator
4xlma.cdr
rza-4xfr.cdr
rza-4xbx.cdr
