FireFlex DUAL - Page 16

Page 12 of 28
®
DUAL
Integrated Fire Protection System
OWNER'S OPERATION & MAINTENANCE MANUAL
FM-0860-0-31F

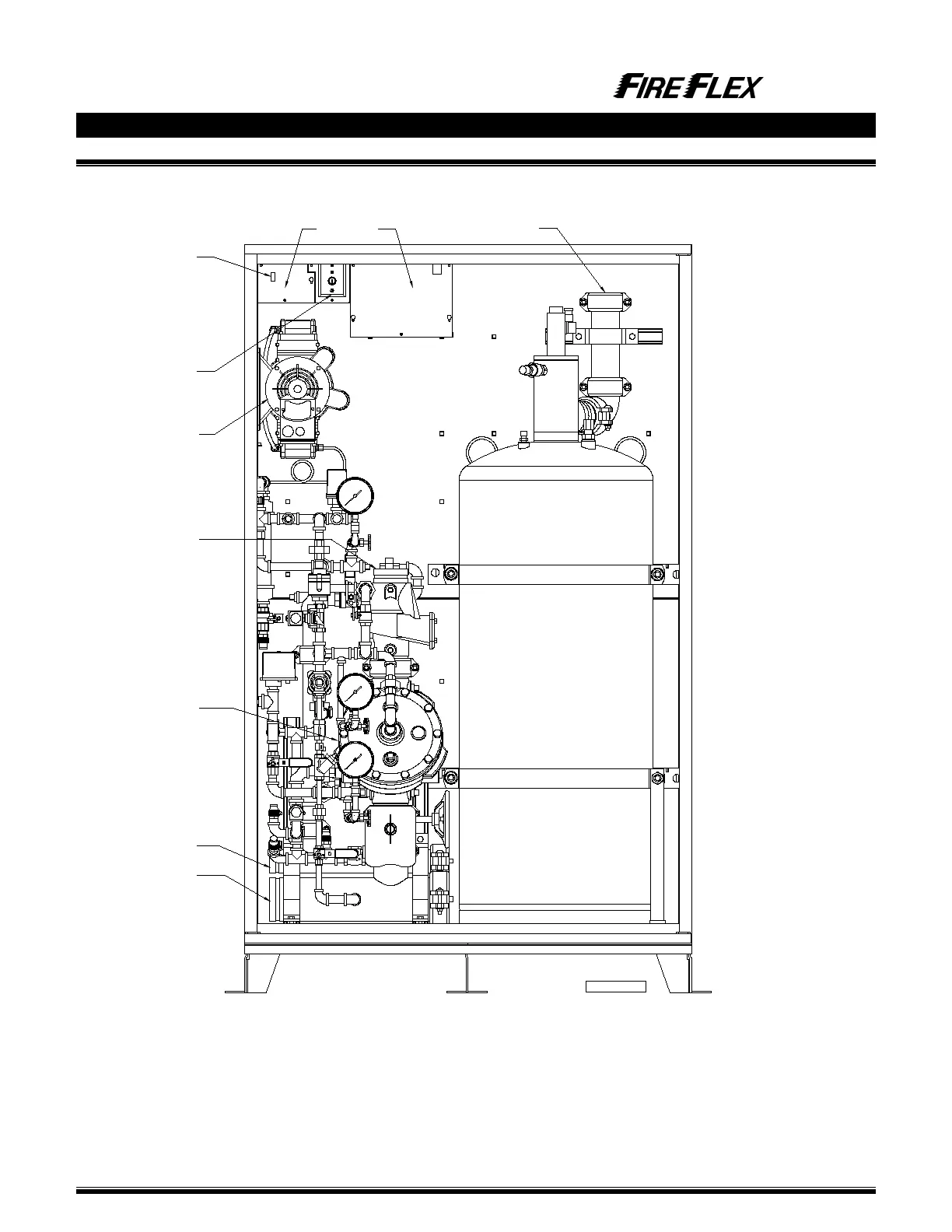

Figure 4.4 - FIREFLEX
®
DUAL (shown without doors)
See figures 4.5 & 4.6 for additional details.
FM-076Z-0-5D-3
Agent storage cylinder
Air compressor
Junction box
TBA & TBB
Air compressor
Isolation switch
Water inlet
Drain outlet
Preaction assembly
Preaction outlet
Clean agent outlet
Releasing circuit
disable switch
