8. CABINET
The FIREFLEX
®
DUAL cabinet is made of sturdy 14 gauge
steel. Refer to table 8.1 and figure 2 for dimensions.
All surfaces are rust proof coated, inside and outside, with
fire red, oven baked polyester powder on phosphate base.
Cabinet is provided with two doors, all provided with a
neoprene gasket to avoid vibrations, giving the access to the
pressure gauges reading and the manual emergency
release.
Cabinet doors are provided with hinges that can easily be
disassembled on site to remove the door assemblies for
installation and servicing. The cabinet assembly is pre-
assembled, pre-wired, and factory tested under ISO-9001
conditions. Refer to tables 8.2 & 8.3 for installation and
clearances details.
Electrical junction boxes are integrated inside the cabinet for
connection of detection system, auxiliary contacts and
signaling devices. Knockouts can be drilled by the installing
contractor on-site but must adhere to the restrictions
indicated on figure 8.1.

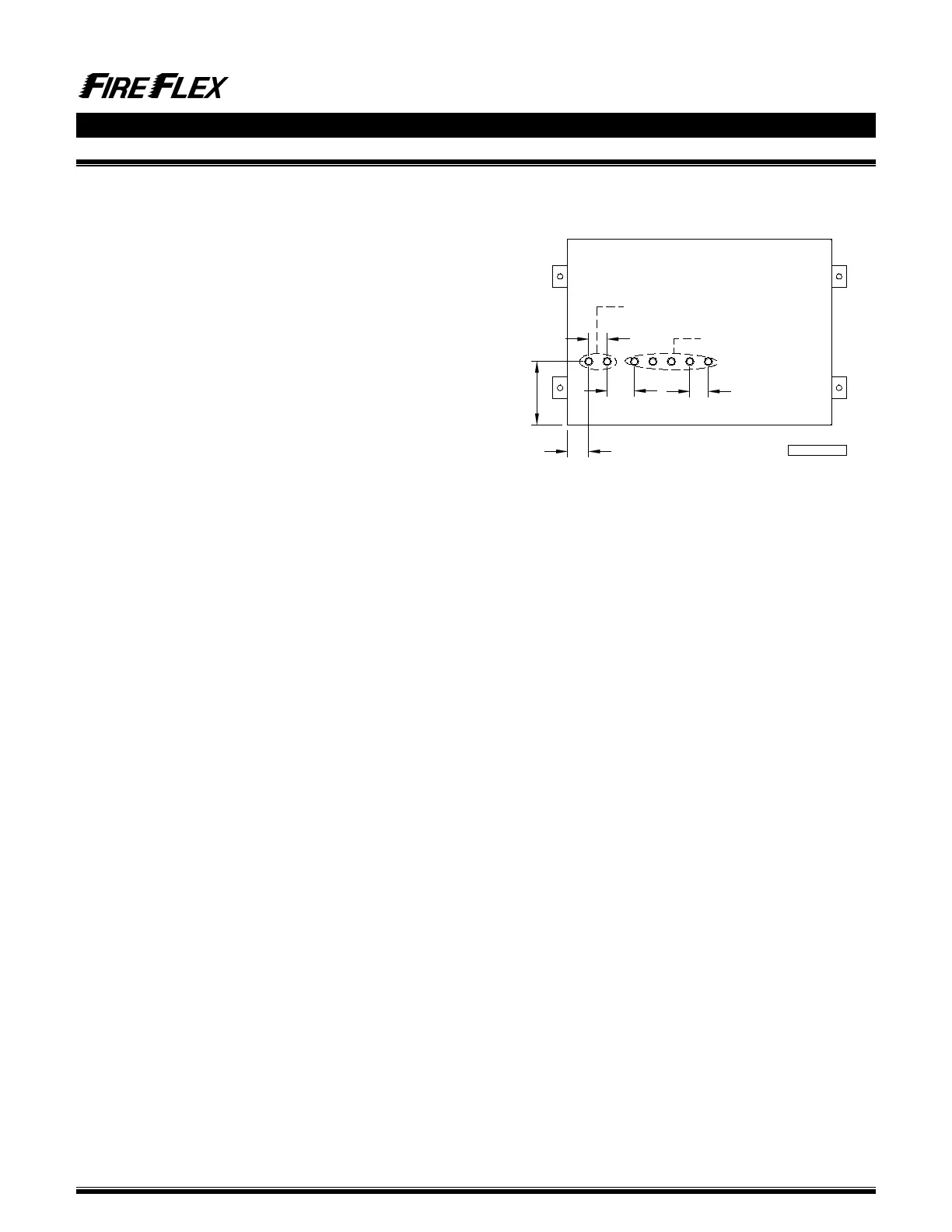

Figure 8.1 - Drilling details
2? "
8½"
Top of Cabinet
FM-061H-0-68B-12
2½" Typ.
3¾"
2½"
High voltage
Low voltage
