FINISHING THE PLUMBING…….

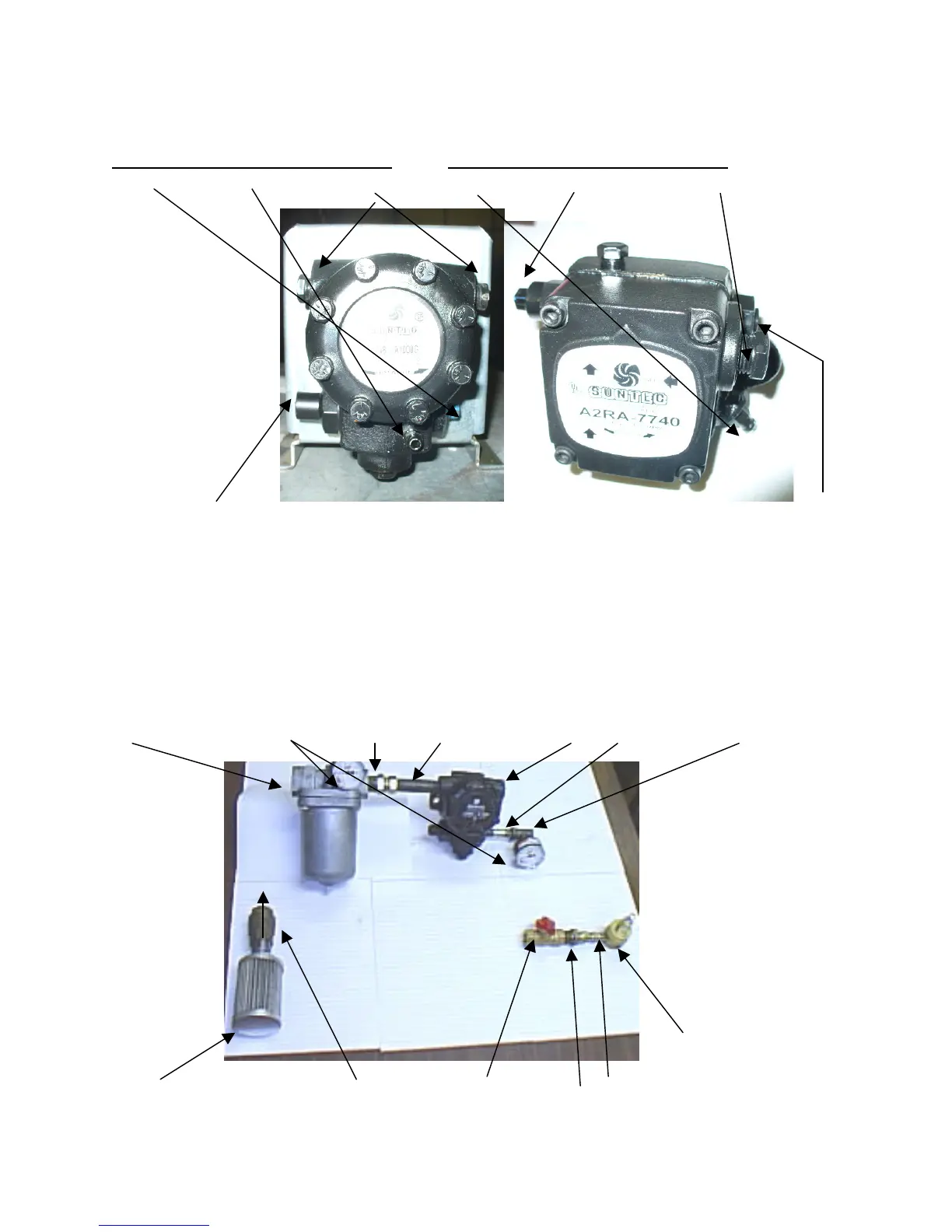

J Pump A Pump
.1/8” Outlet Air Bleeder .1/4” Inlets Air Bleeder .1/8” Outlet .1/4” Intlet
Pressure Adj. Pressure Adj.
[ If Using a CDVF Pump follow instructions in CDVF Manual ]
Consult your dealer for the best plumbing arrangement for your heater. There are many ways the
plumbing can be done. Use pipe dope on threads, not tape ! Flared tubing & fittings are
acceptable, never use compression fittings ! Meeting building codes and your needs may require
deviation from the fittings provided in your accessory carton and described in the example below.
Components shown are provided with standard heater purchases and found in Accessory Carton.
With new J1000 pumps 1/4x1/8 & 1/2x1/4 bushings provided for use in pump ports.
3/4 FPT Filter Gauges 3/4x1/2 Swivel 1/2 Nipple Pump 1/4 Nipple 1/4x1/4x1/8 Tee
Oil Regulator on Burner
Note Flow Arrow 1/4 Nipple
Suction Strainer 3/4 FPT Check Valve 1/2 FPT Valve 1/2x1/4 Swivel
To Next Page
