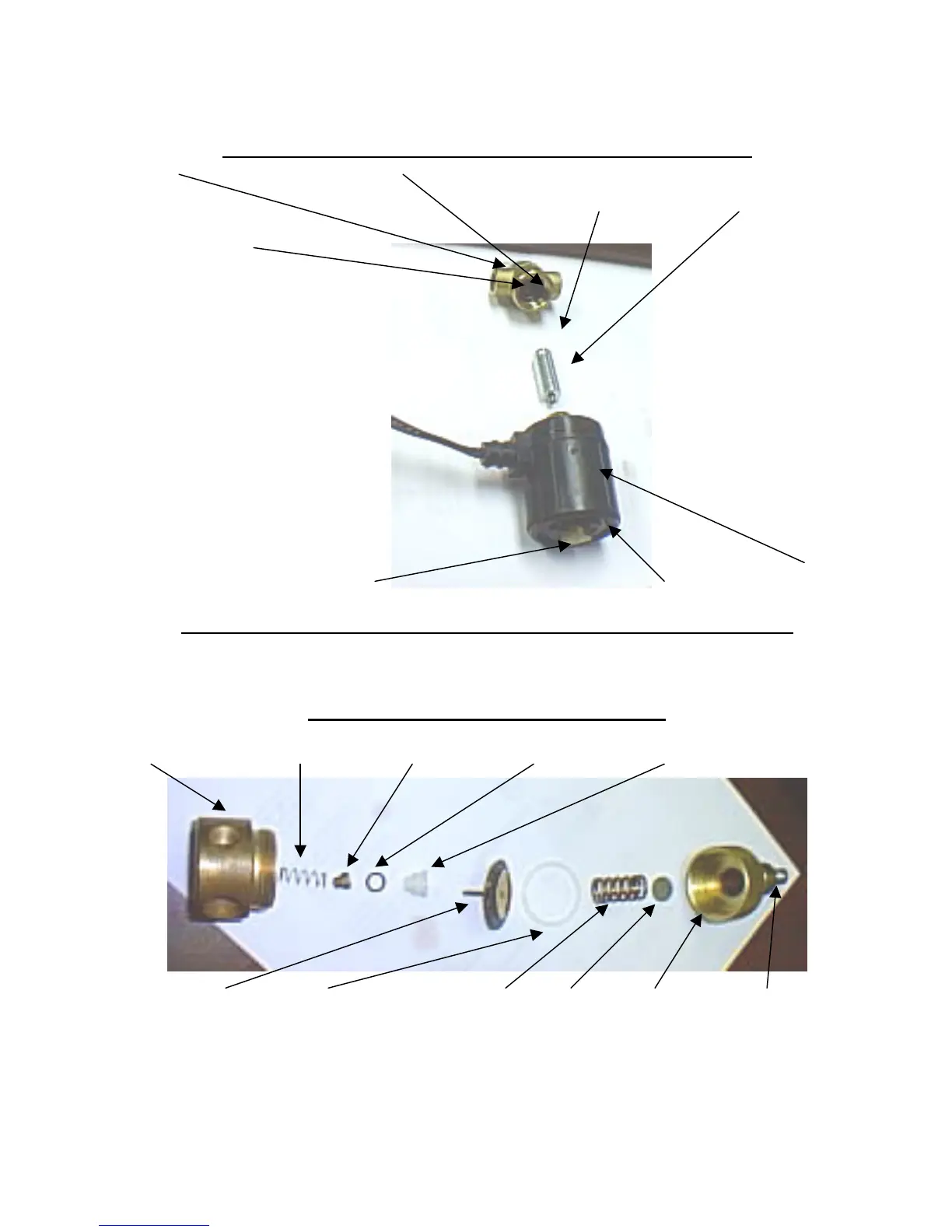

ASSEMBLY OF SPECIAL MODEL 500 AIR SOLENOID #57185
BASE * O-RING 57194 (ZINC PLUNGER W/ SPRING ASM) 57192
(NICKEL PLUNGER W/ SPRING ASM) 57139
ORIFICE HOLES
NOTE TWO IN BASE
STEM W/ WRENCH FLATS
SNAP RING
COIL
* Pay attention to detail, the solenoid base has a specific inlet and outlet direction.
ASSEMBLY OF OIL REGULATOR #57129
BASE VALVE SPRING VALVE [GASKET #57111 , FLOW SEAT #57128]
#57127
DIAPHRAGM SLIP RING REGULATING SPRING, DISC BONNET ADJ. SCREW
